HSC : Calibration data
Notes
- Our observatory usually acquires 10 biases, 5 darks, and 10 dome flats with each filter for science calibration in every HSC observing run.
- In addition, basically, a spectrophotometric standard star is imaged before or after science observations with a NB/IB filter at least once in a night (see also this page).

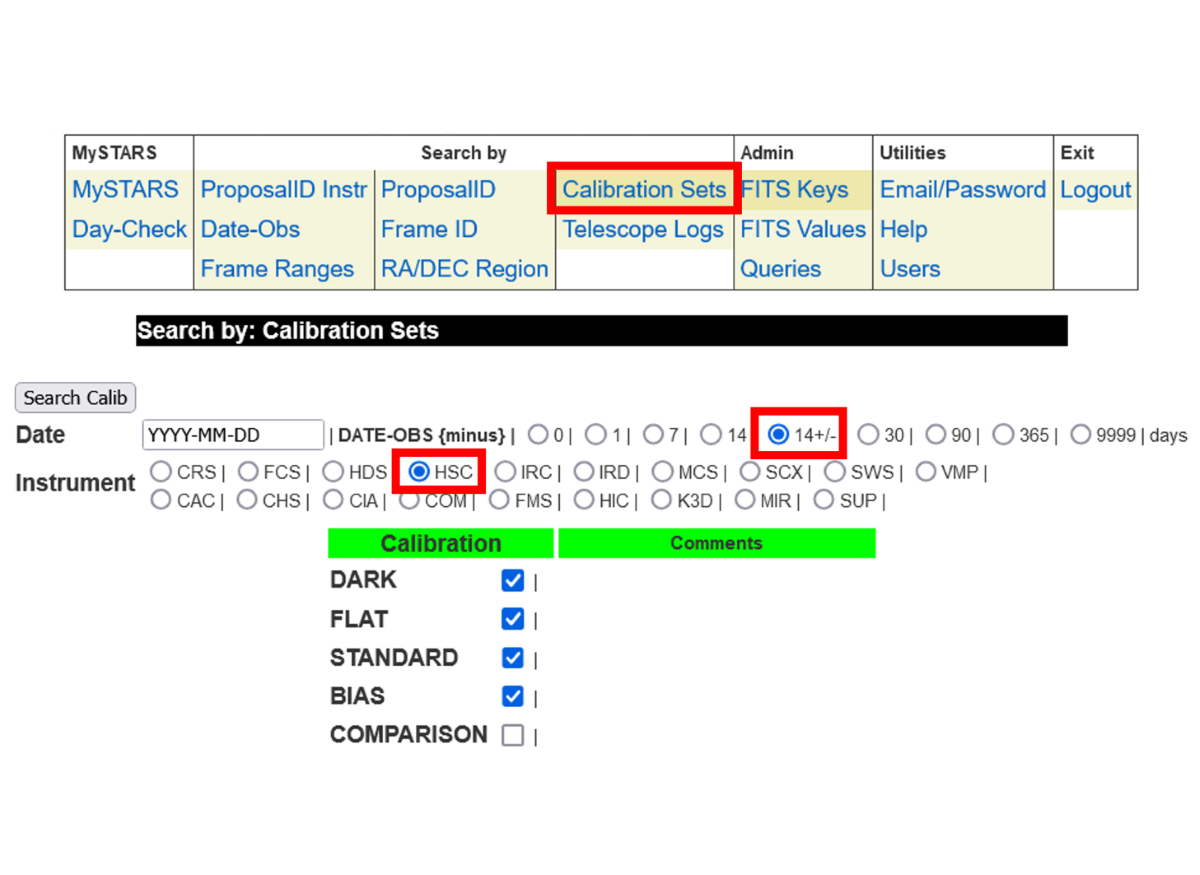

- Those science calibration data are shared with all users through the STARS webpage. You can search and download the data from "Search by" > "Calibration Sets".
- It is highly recommended to use calibration data taken in the same observing run as the science frames to be analyzed.

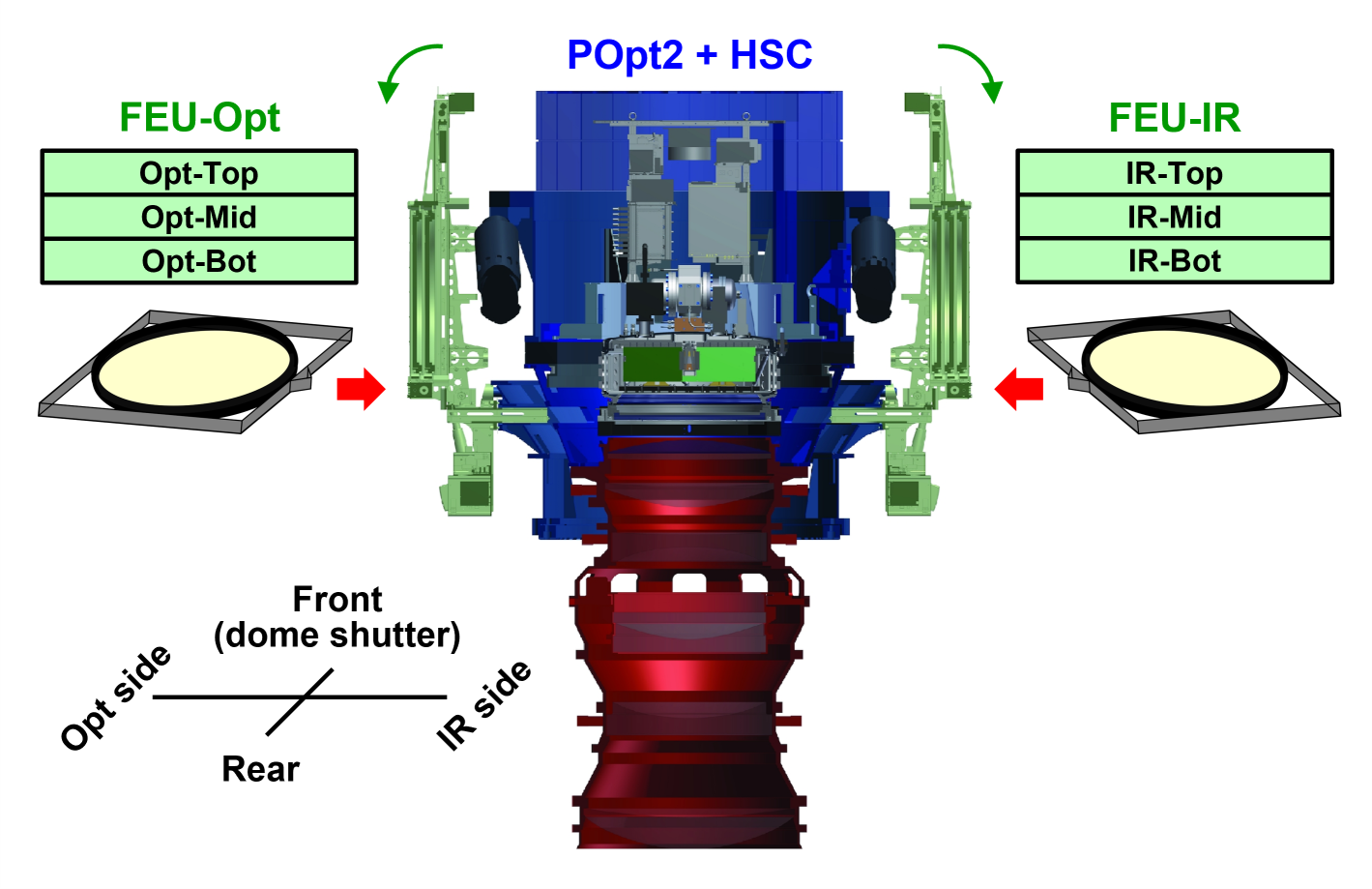

- Otherwise, make sure that the filter was stored at the same side of FEU stacker between the science frames and dome flats used for data reduction (see FEU configuration).

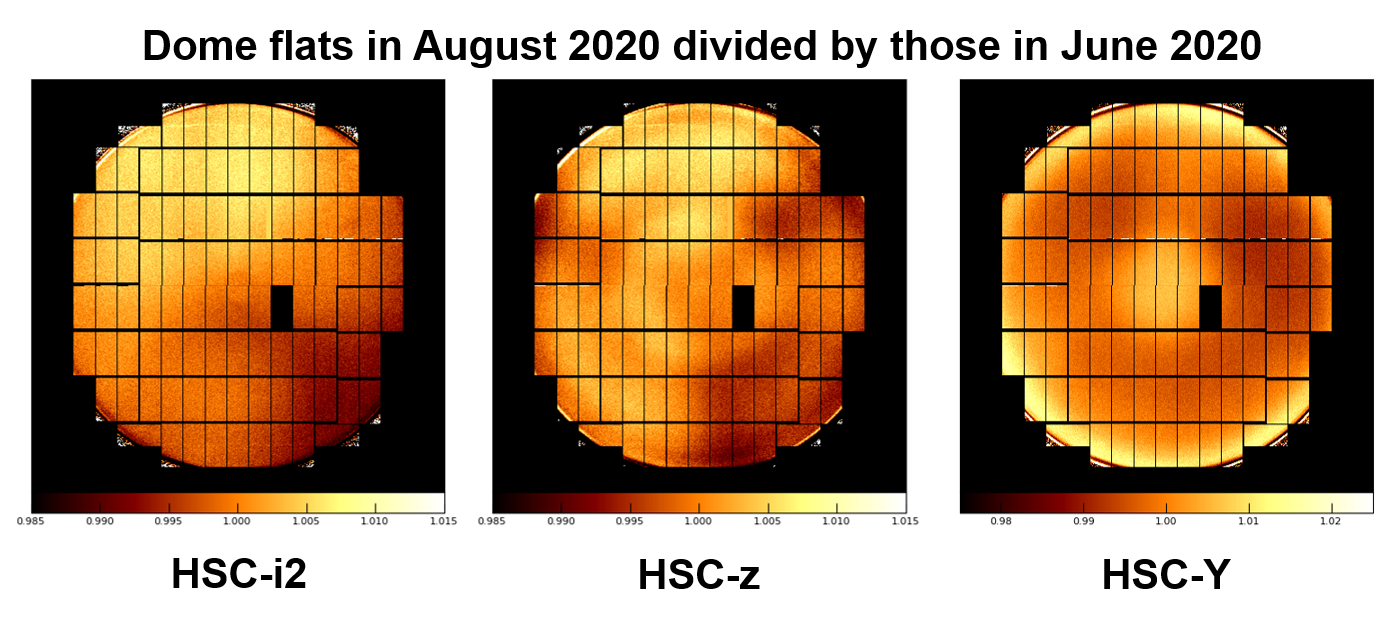

- When you reduce the data obtained from the late February to the early October (HSCA16530200 – 18623157), be sure to read this announcement.
- The HSC team has been provided a calibration data set reduced with HSC pipeline (hscPipe) for each observing run since S19B. The data can be downloaded here.
- "On-axis dome flat" has been introduced in 2021 February run. The analysis report can be seen here.
Last update: July 21, 2025 HST
2025 July run (2025/07/16 – 2025/08/04 HST)
Note: CCD #021 (1_34) disabled since the beginning of this run. (see the report).
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 36347800 – 36349757 | |
| Dark | 36356000 – 36356957 | |
| Domeflat in HSC-g | 36357200 – 36359157 | |
| Domeflat in HSC-r2 | 36345800 – 36347757 | |
| Domeflat in HSC-i2 | 36302200 – 36304157 | Cable-tie shadow on CCD #077 |
| Domeflat in HSC-z | 36341000 – 36342957 | |
| Domeflat in NB816 | 36403600 – 36405557 | Obtained with the top-ring flat lamps |
| Domeflat in EB-gri | 36378400 – 36380357 | Obtained with the top-ring flat lamps |

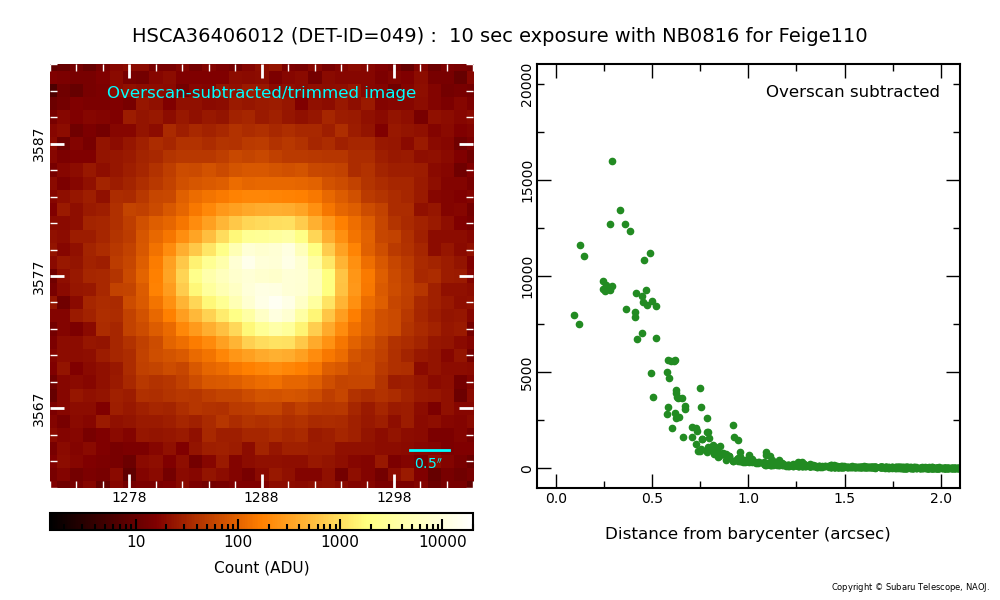

| Standard star in NB0816 | 36406012 |
2025 April run (2025/04/21 – 2025/05/06 HST)
Note: The data obtained after the evening of April 26th UT are affected by noisy bias due to the CCD #021 (1_34) issue (see the report).
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 35855000 – 35856957 35962800 – 35964757 |
All CCDs were normal Read-out failure in CCD #021 and stripe-like noises on the neighbor CCDs |
| Dark | 36011400 – 36012357 | Read-out failure in CCD #021 and stripe-like noises on the neighbor CCDs |
| Domeflat in HSC-g | 35874000 – 35875957 | Cable-tie shadows on CCD #003 and #022 |
| Domeflat in HSC-r2 | 35915800 – 35915957, 35916200 – 35917957 |
Cable-tie shadow on CCD #003 |
| Domeflat in HSC-z | 35832200 – 35834157 | Cable-tie shadow on CCD #003 |
| Domeflat in NB0395 | 36136200 – 36138157 | Obtained with the top-ring flat lamps Read-out failure in CCD #021 and stripe-like noises on the neighbor CCDs Cable-tie shadows on CCD #003 |
| Domeflat in NB0430 | 36093600 – 36095557 | Obtained with the top-ring flat lamps Read-out failure in CCD #021 and stripe-like noises on the neighbor CCDs Cable-tie shadows on CCD #003 |
| Domeflat in NB0656 | 35903400 – 35905357 | Obtained with the top-ring flat lamps Cable-tie shadows on CCD #003 and #022 |
| Domeflat in NB0816 | 35935800 – 35937757 | Obtained with the top-ring flat lamps Read-out failure in CCD #021 and stripe-like noises on the neighbor CCDs Cable-tie shadows on CCD #003 |
| Domeflat in NB0872 | 35859600 – 35861557 | Obtained with the top-ring flat lamps Cable-tie shadow on CCD #003 |
| Domeflat in EB-gri | 36009400 – 36011357 | Obtained with the top-ring flat lamps Read-out failure in CCD #021 and stripe-like noises on the neighbor CCDs Cable-tie shadows on CCD #003 |

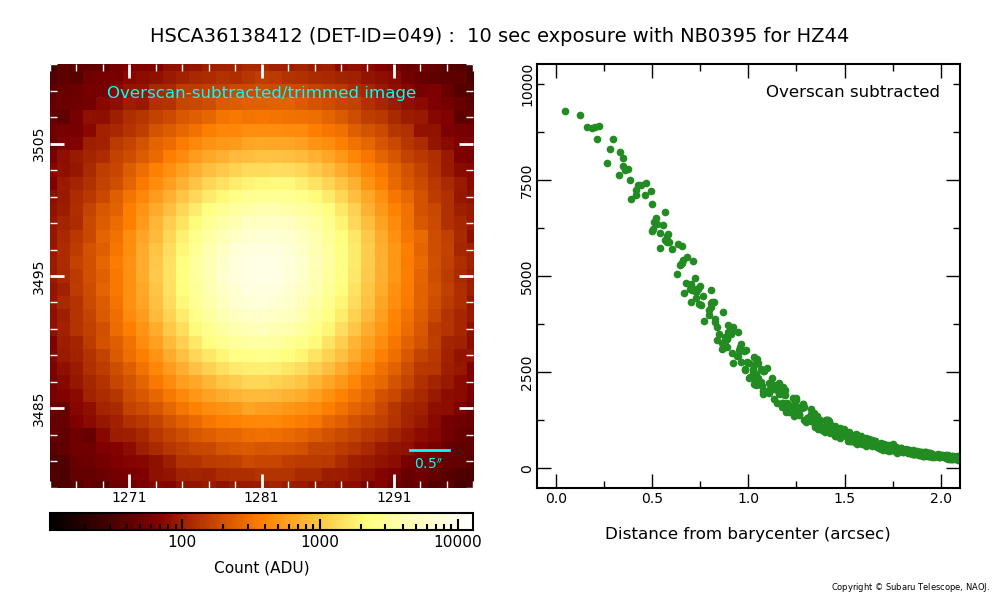

| Standard star in NB0395 | 36138412 | |
| Standard star in NB0430 | 36088812 | |

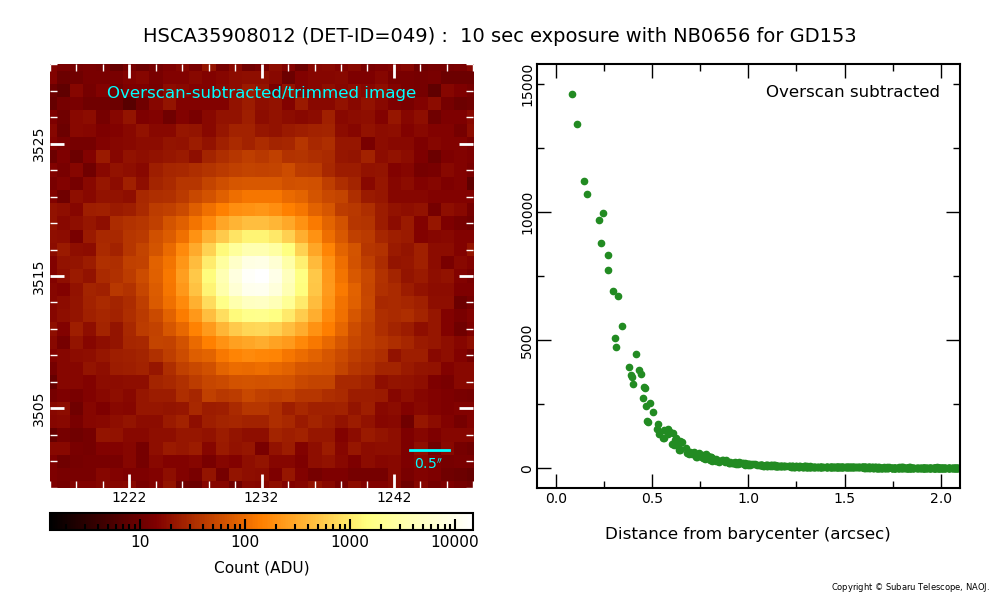

| Standard star in NB0656 | 35908012 35928412 |
|
| Standard star in NB0816 | 35938612 | |
| Standard star in NB0872 | 35862212, 35863612, 35869012, 35869412 35929012 35974012 35991812 |
2025 February run (2025/02/19 – 2025/03/06 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 35182000 – 35183957 | |
| Dark | 35506200 – 35506557, 35596400 – 35596957 |
|
| Domeflat in HSC-g | 35210000 – 35211957 | Cable-tie shadow on CCD #003 |
| Domeflat in HSC-r2 | 35125600 – 35127557 | Cable-tie shadow on CCD #003 |
| Domeflat in HSC-i2 | 35180000 – 35181957 | Cable-tie shadow on CCD #003 |
| Domeflat in HSC-z | 35057400 – 35059357 | Cable-tie shadow on CCD #003 |
| Domeflat in HSC-Y | 35139400 – 35141357 | Cable-tie shadow on CCD #003 |
| Domeflat in NB0395 | 35644200 – 35646157 | Obtained with the top-ring flat lamps Cable-tie shadow on CCD #003 |
| Domeflat in NB0515 | 35663800 – 35665757 | Obtained with the top-ring flat lamps Cable-tie shadow on CCD #003 |
| Domeflat in NB0816 | 35165800 – 35167757 | Obtained with the top-ring flat lamps Cable-tie shadow on CCD #003 |
| Domeflat in NB0872 | 35597000 – 35598957 | Obtained with the top-ring flat lamps Cable-tie shadow on CCD #003 |

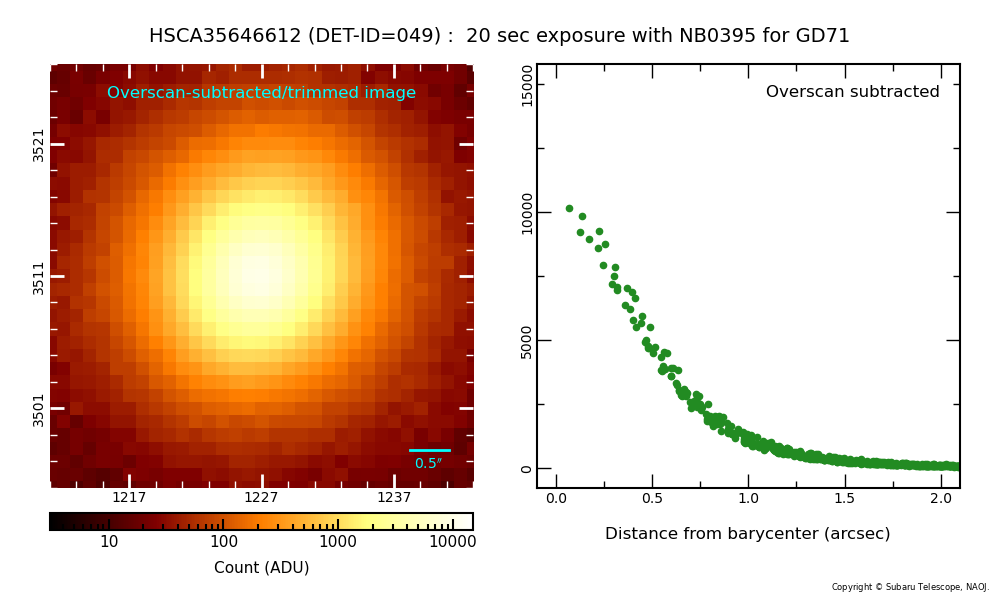

| Standard star in NB0395 | 35646612 | |

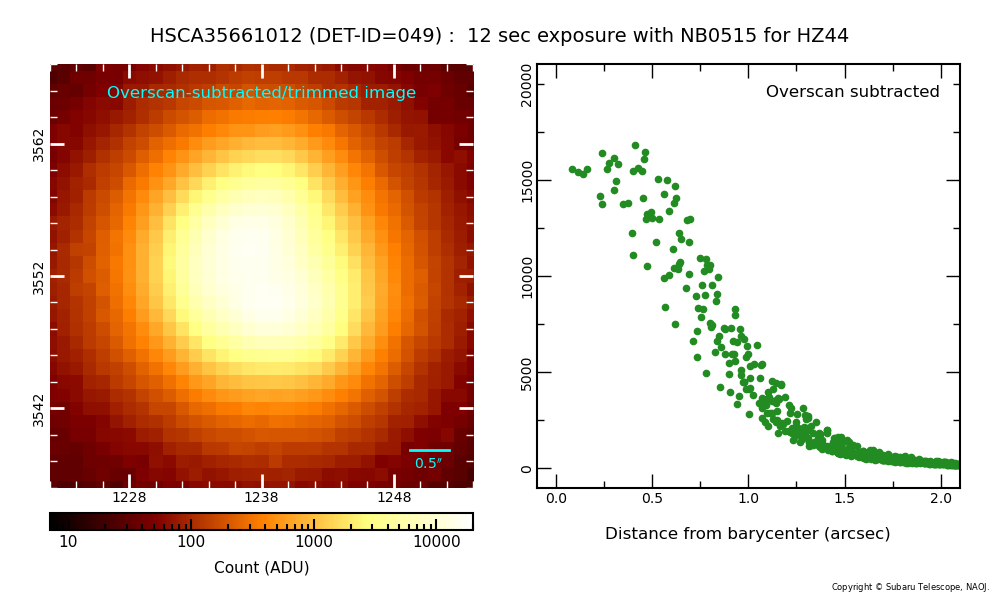

| Standard star in NB0515 | 35661012 35666412 35712612 |
|
| Standard star in NB0816 | 35168612 | |

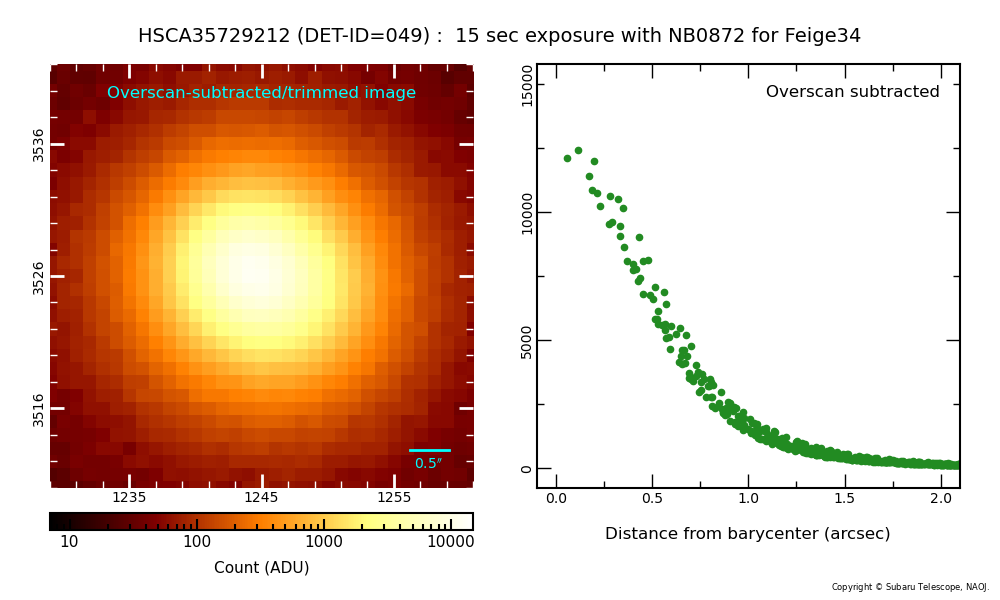

| Standard star in NB0872 | 35599212 35729212 |
2024 December run (2024/12/19 – 2025/01/06 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 34518400 – 34520357 | |
| Dark | 34528000 – 34528957 | |
| Domeflat in HSC-g | 34723000 – 34724957 | |
| Domeflat in HSC-r2 | 34553200 – 34555157 | Cable-tie shadow on CCD #061 |
| Domeflat in HSC-z | 34575000 – 34576957 | |
| Domeflat in NB0816 | 34615800 – 34617757 | Obtained with the top-ring flat lamps |
| Domeflat in NB0872 | 34516400 – 34518357 | Obtained with the top-ring flat lamps Cable-tie shadow on CCD #061 |
| Domeflat in NB0926 | 34713400 – 34715357 | Obtained with the top-ring flat lamps |

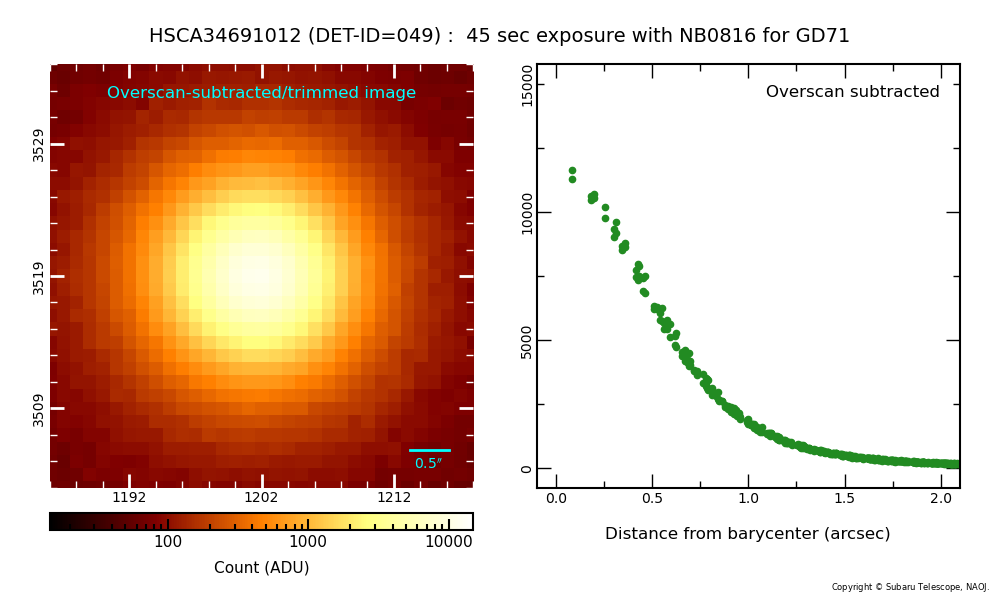

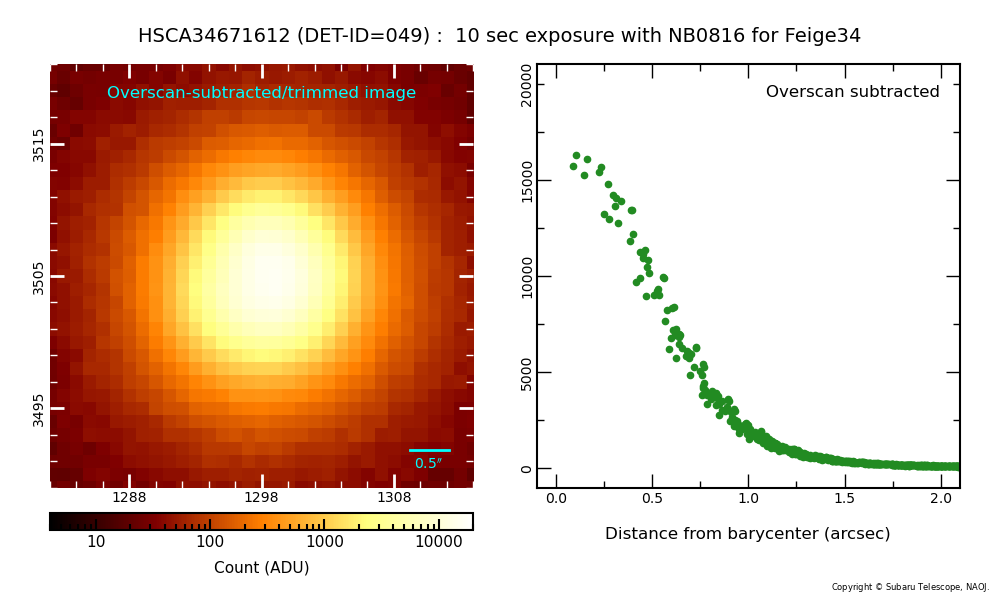

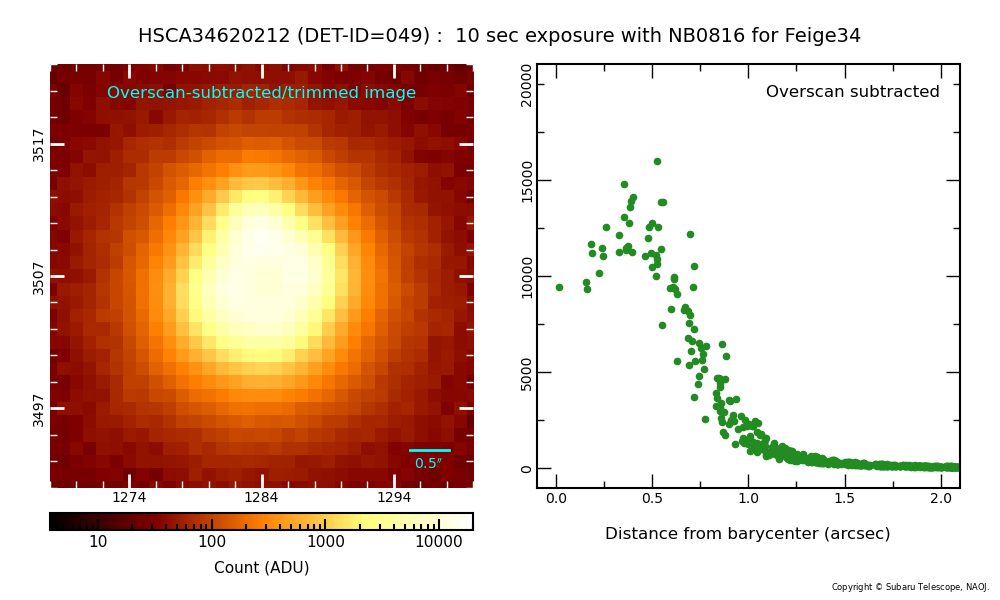

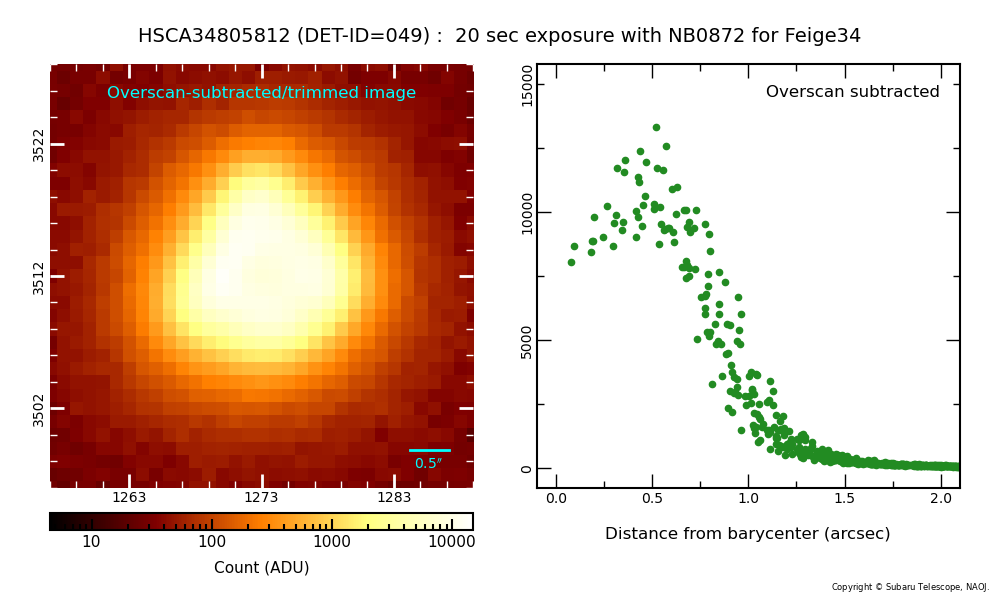

| Standard star in NB0816 | 34620212 34671612 34691012 34741212 34824012 34846012 |
|

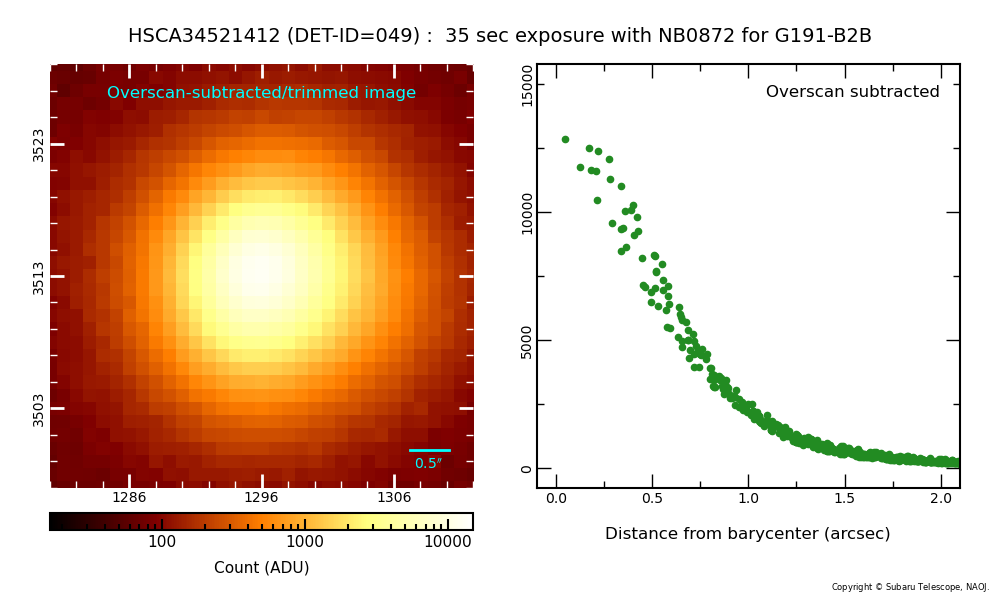

| Standard star in NB0872 | 34521012, 34521212, 34521412, 34529412, 34529612 34549012 34584412 34644412 34670012 34687212 34712012, 34712212 34740012 34805812 34826412 34847612, 34847812 34861812 |
|

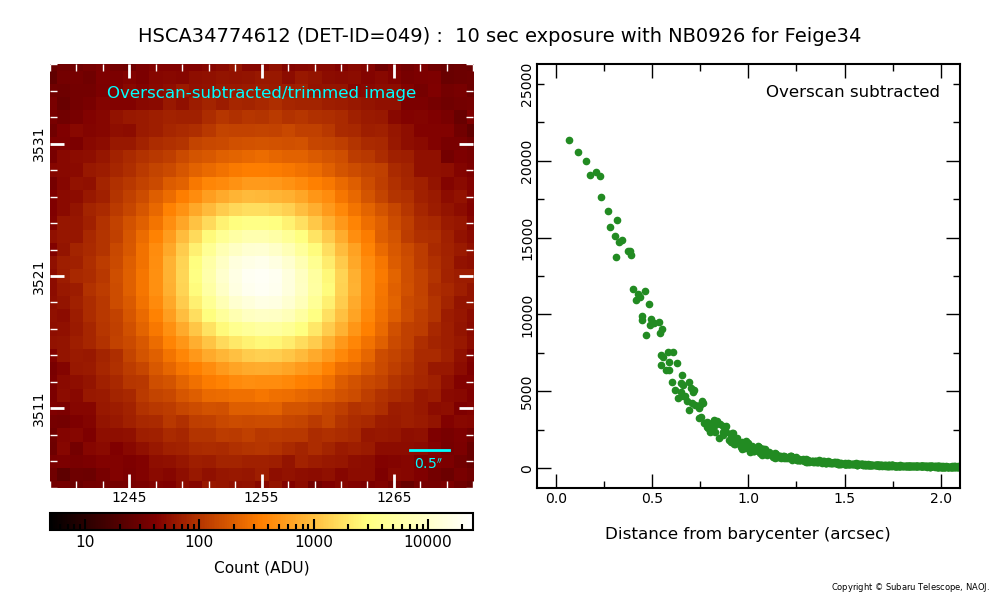

| Standard star in NB0926 | 34715412 34774612 34824612, 34824812 |
2024 November run (2024/11/25 – 2024/12/05 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 34170200 – 34172157 | |
| Dark | 34105800 – 34106757 | |
| Domeflat in HSC-g | 34132000 – 34133957 | |
| Domeflat in HSC-r2 | 34168000 – 34169957 | |
| Domeflat in HSC-i2 | 34075400 – 34077357 | |
| Domeflat in NB0515 | 34226000 – 34227957 | Obtained with the top-ring flat lamps |
| Domeflat in NB0527 | 34109600 – 34111557 | Obtained with the top-ring flat lamps |
| Domeflat in EB-gri | 34373600 – 34375557 | Obtained with the top-ring flat lamps |

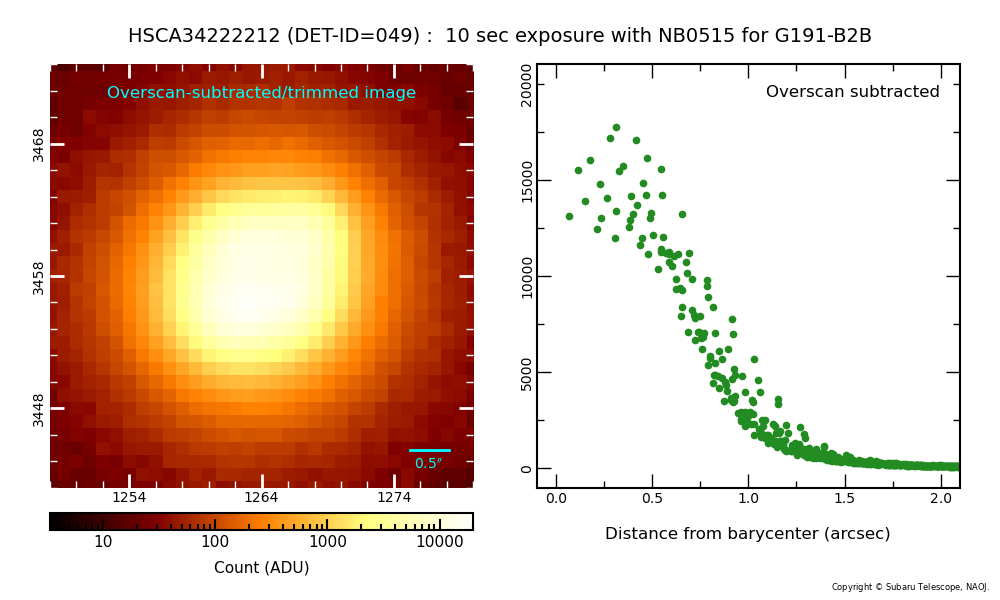

| Standard star in NB0515 | 34222012, 34222212 | |

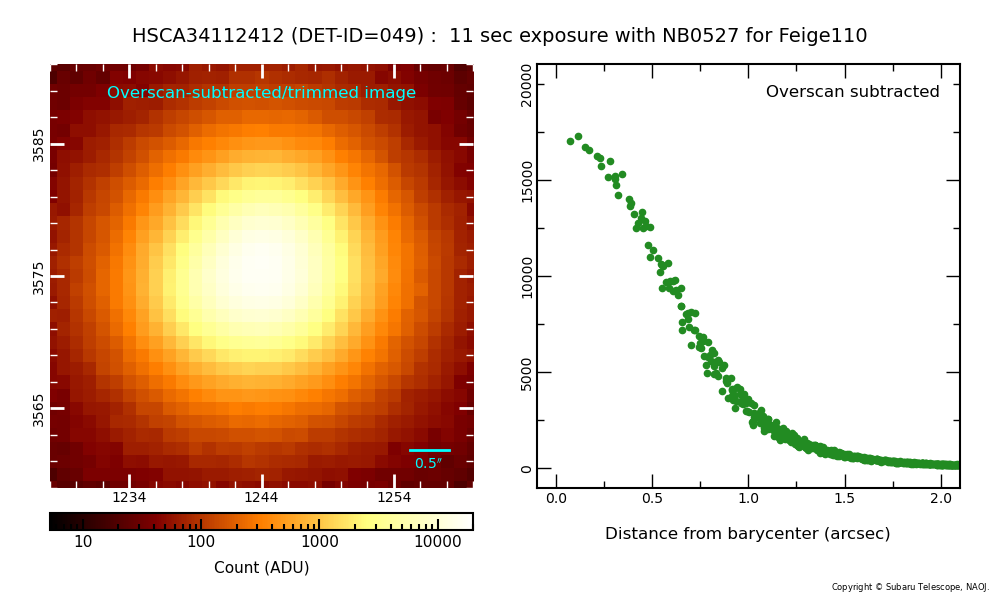

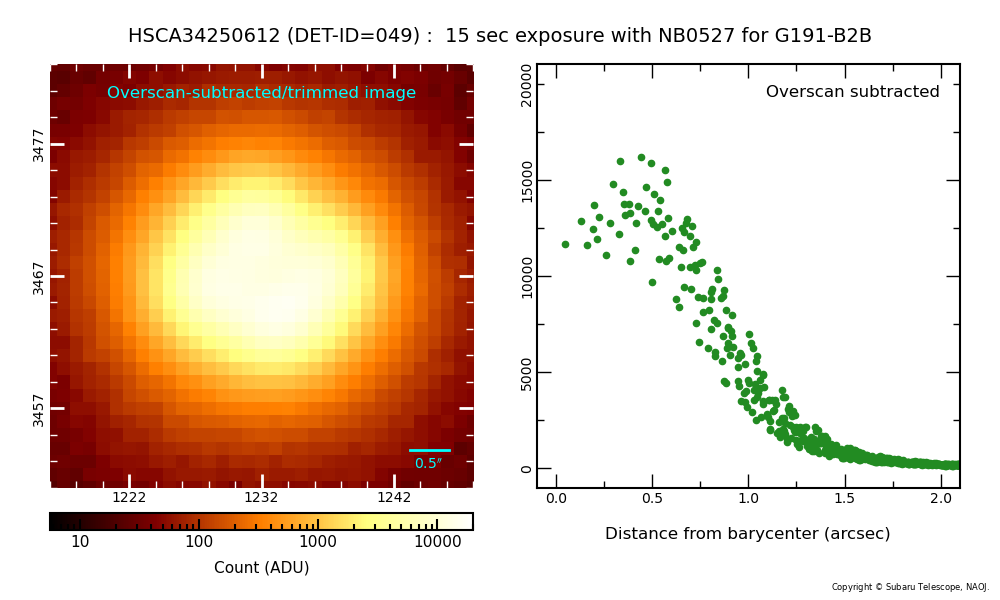

| Standard star in NB0527 | 34112012, 34112212, 34112412 34250412, 34250612 34304212 34494212 |
2024 September run (2024/09/24 – 2024/10/07 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 33878800 – 33880757 | |
| Dark | 33928000 – 33928357, 33962200 – 33962557, 34015200 – 34015357 |
|
| Domeflat in HSC-g | 33670600 – 33672557 | |
| Domeflat in HSC-r2 | 34043200 – 34045157 | |
| Domeflat in HSC-i2 | 33656000 – 33657957 | |
| Domeflat in HSC-z | 33891000 – 33892957 | |
| Domeflat in NB0395 | 33867000 – 33868957 | Obtained with the top-ring flat lamps |
| Domeflat in NB0515 | 33724800 – 33726757 | Obtained with the top-ring flat lamps |

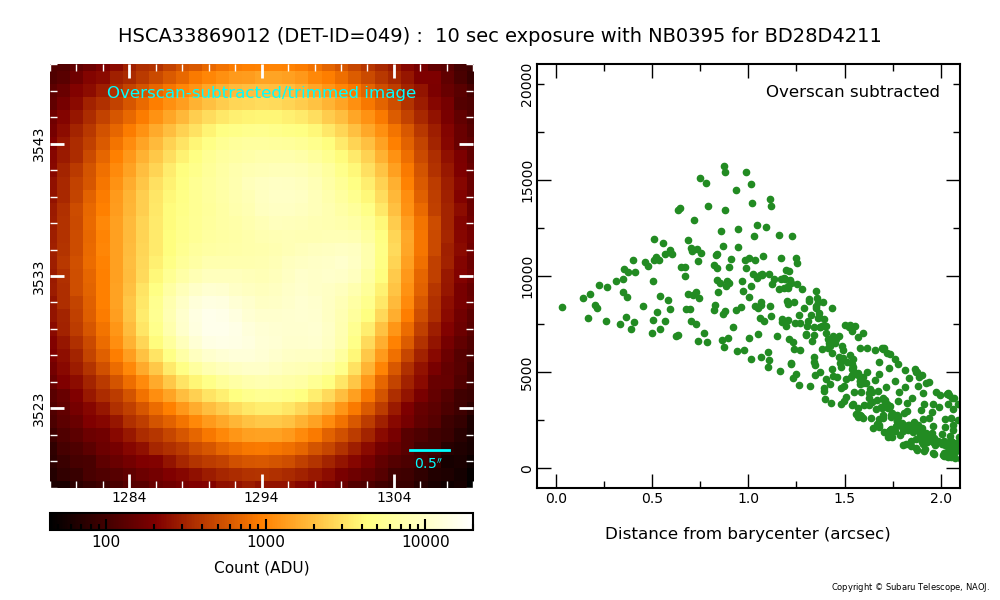

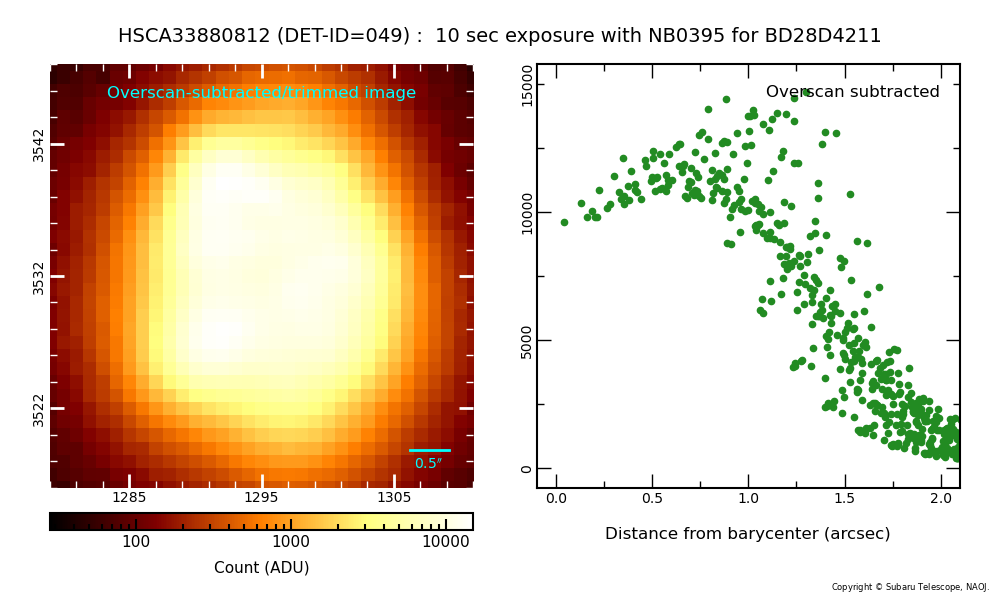

| Standard star in NB0395 | 33869012, 33880812 | |

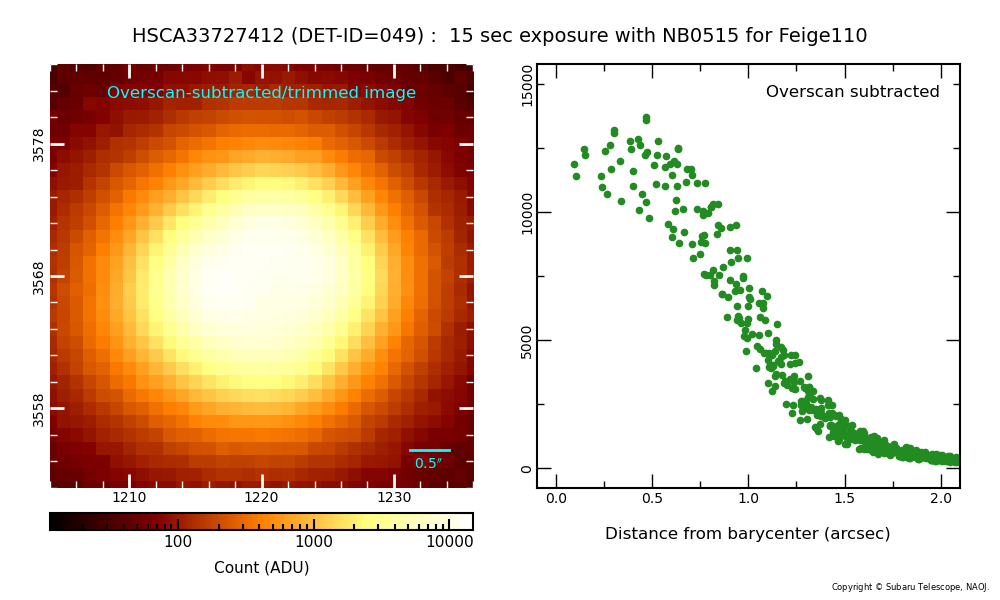

| Standard star in NB0515 | 33727412 (off focus), 33728012 (on focus) 33789812 33851012, 33851412 |
2024 August run (2024/07/29 – 2024/08/06 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 33370200 – 33372157 | |
| Domeflat in HSC-g | 33402400 – 33404357 | |
| Domeflat in HSC-r2 | 33169000 – 33170957 | |
| Domeflat in HSC-i2 | 33338800 – 33340757 | |
| Domeflat in HSC-z | 33313400 – 33313557, 33313800 – 33315557 |
|
| Domeflat in EB-gri | 33207800 – 33209757 | Obtained with the top-ring flat lamps |
2024 July run (2024/06/27 – 2024/07/10 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 32720600 – 32722557 | |
| Dark | 32992600 – 32993557 | |
| Domeflat in HSC-g | 32915400 – 32917357 | |
| Domeflat in HSC-i2 | 32965800 – 32967757 | |
| Domeflat in HSC-z | 32681400 – 32683357 | Cable-tie shadow on CCD #100 (details) |
2024 June run (2024/06/07 – 2024/06/13 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 32634200 – 32636157 | |
| Domeflat in HSC-r2 | 32520000 – 32521957 | |
| Domeflat in HSC-i2 | 32559400 – 32561357 | |
| Domeflat in HSC-z | 32412600 – 32414557 | |
| Domeflat in NB0872 | 32598800 – 32600757 | Obtained with the top-ring flat lamps |
| Domeflat in EB-gri | 32555800 – 32556957, 32557200 – 32557757 |
Obtained with the top-ring flat lamps; 9 exposures in total |
| Standard star in NB0872 | 32601012 |
2024 April run (2024/04/01 – 2024/04/15 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 32100800 – 32102757 | |
| Dark | 32264800 – 32265757 | |
| Domeflat in HSC-g | 32136400 – 32138357 | |
| Domeflat in HSC-r2 | 32371600 – 32373557 | |
| Domeflat in HSC-i2 | 32105400 – 32107357 | |
| Domeflat in HSC-z | 32073600 – 32073757, 32074000 – 32075757 |
|
| Domeflat in NB0395 | 32274600 – 32276557 | Obtained with the top-ring flat lamps |
| Domeflat in NB0718 | 32386400 – 32388357 | Obtained with the top-ring flat lamps |
| Domeflat in NB0816 | 32384200 – 32386157 | Obtained with the top-ring flat lamps |
| Domeflat in NB0872 | 32259800 – 32261757 | Obtained with the top-ring flat lamps |

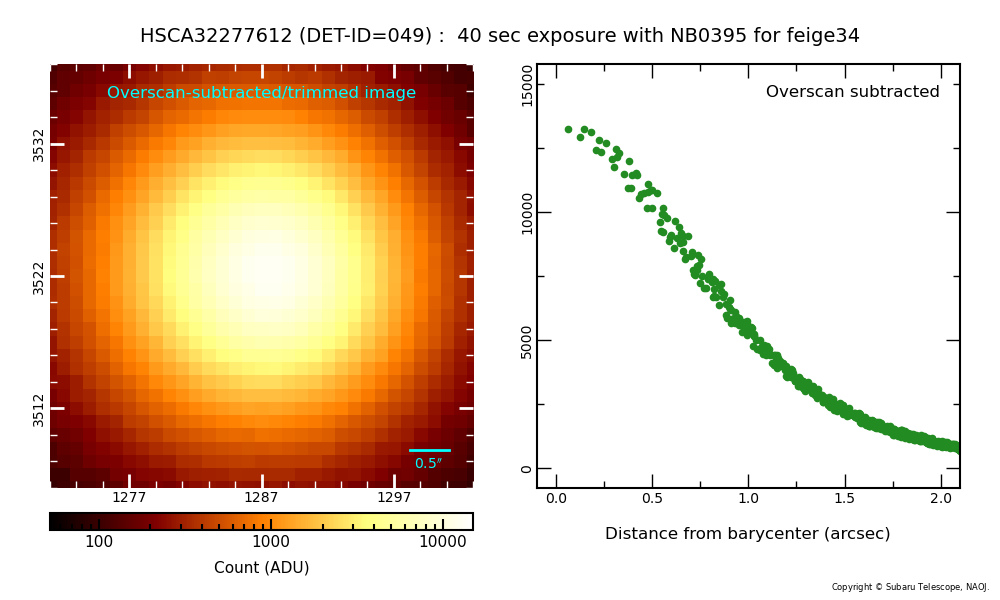

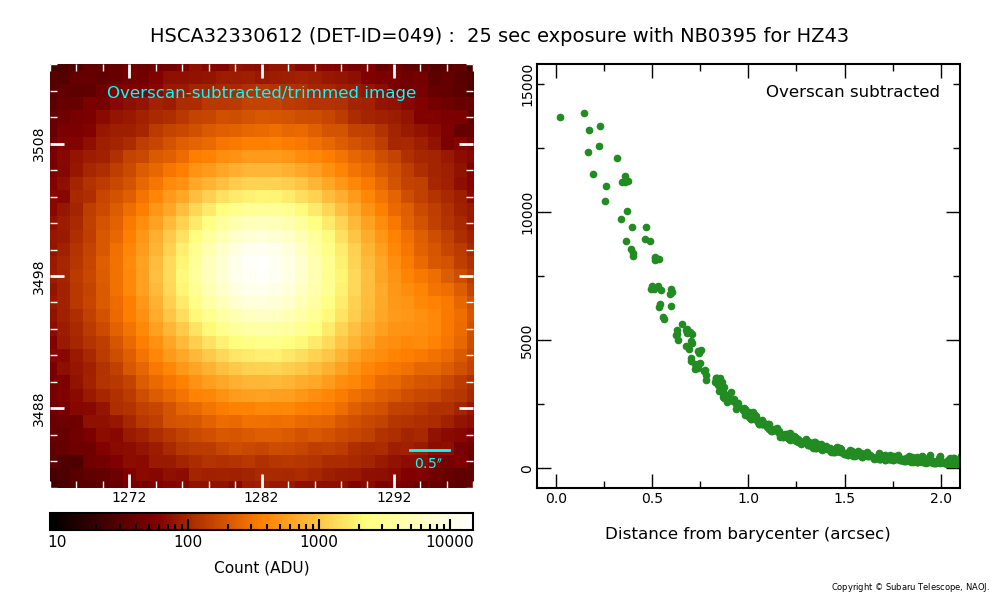

| Standard star in NB0395 | 32277612 32330612 |
|
| Standard star in NB0718 | 32396012 | |

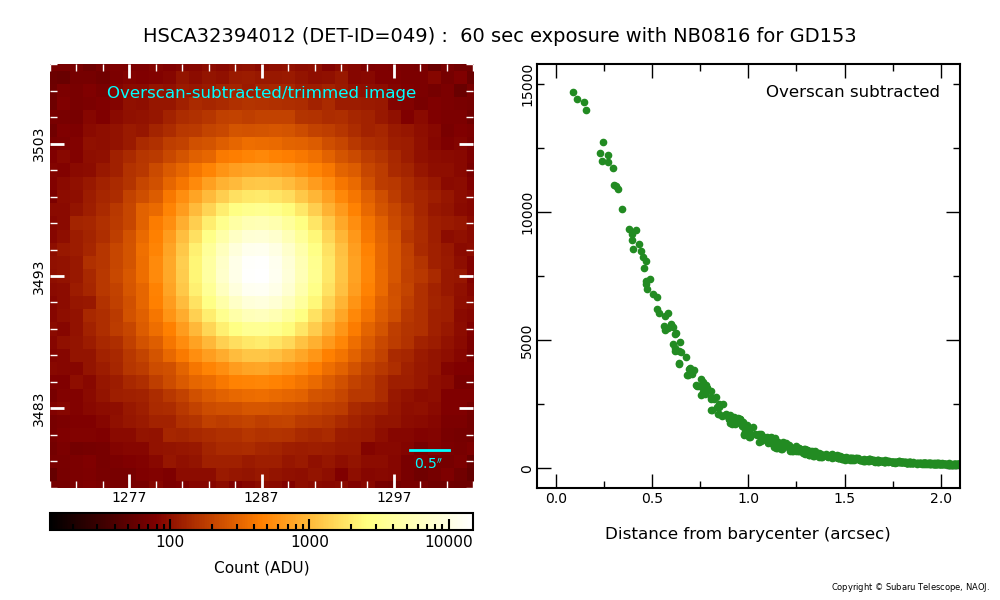

| Standard star in NB0816 | 32394012 | |

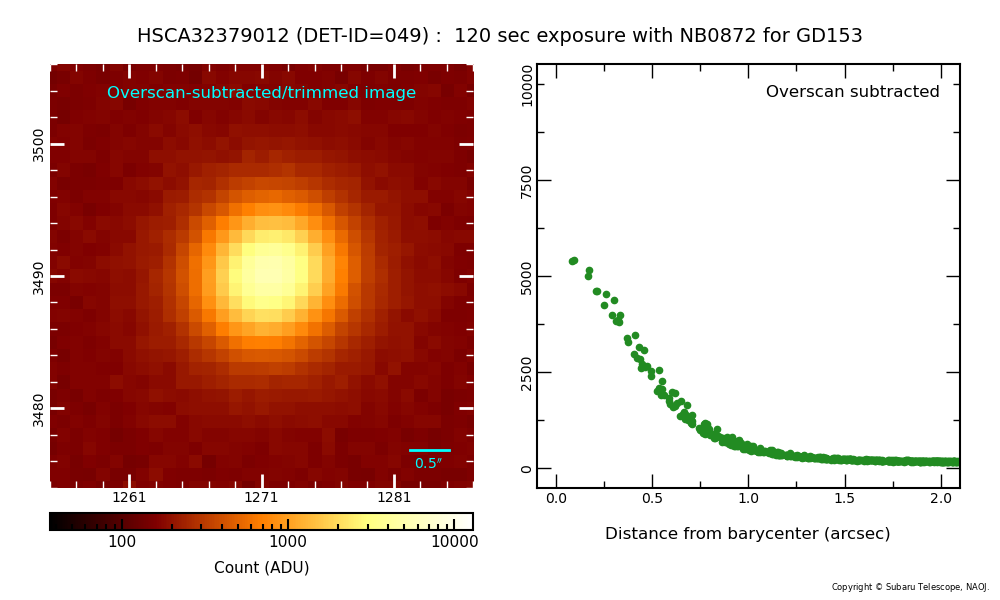

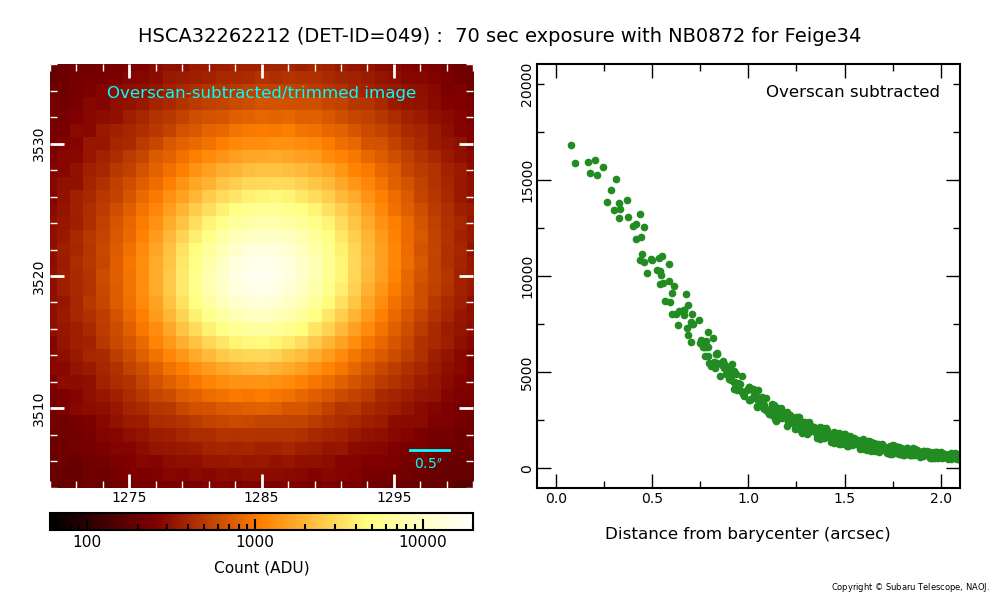

| Standard star in NB0872 | 32262212 32379012 |
2023 September run (2023/09/06 – 2023/09/14 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 31939400 – 31941357 | |
| Dark | 32069800 – 32070757 | |
| Domeflat in HSC-g | 31881000 – 31882957 | |
| Domeflat in HSC-r2 | 31715000 – 31716957 | |
| Domeflat in HSC-i2 | 31837800 – 31839757 | |
| Domeflat in HSC-z | 31669400 – 31671357 | |
| Domeflat in NB0497 | 32057200 – 32059157 | Obtained with the top-ring flat lamps |
| Domeflat in NB0515 | 32061000 – 32062957 | Obtained with the top-ring flat lamps |
| Domeflat in NB0816 | 31808200 – 31809157 | Obtained with the on-axis flat lamp; only 5 frames |
| Domeflat in EB-gri | 31713000 – 31714957 | Obtained with the top-ring flat lamps |

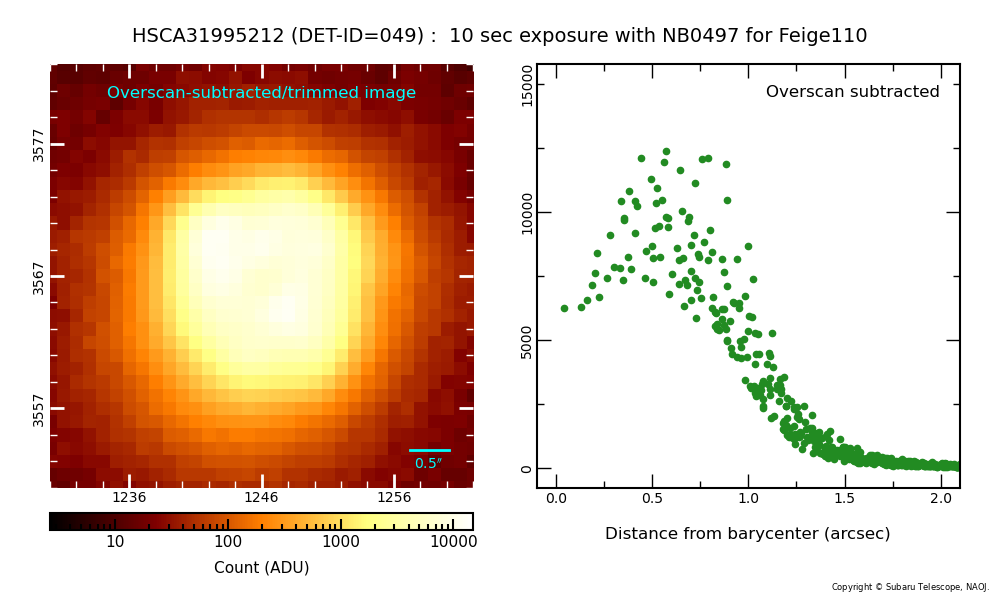

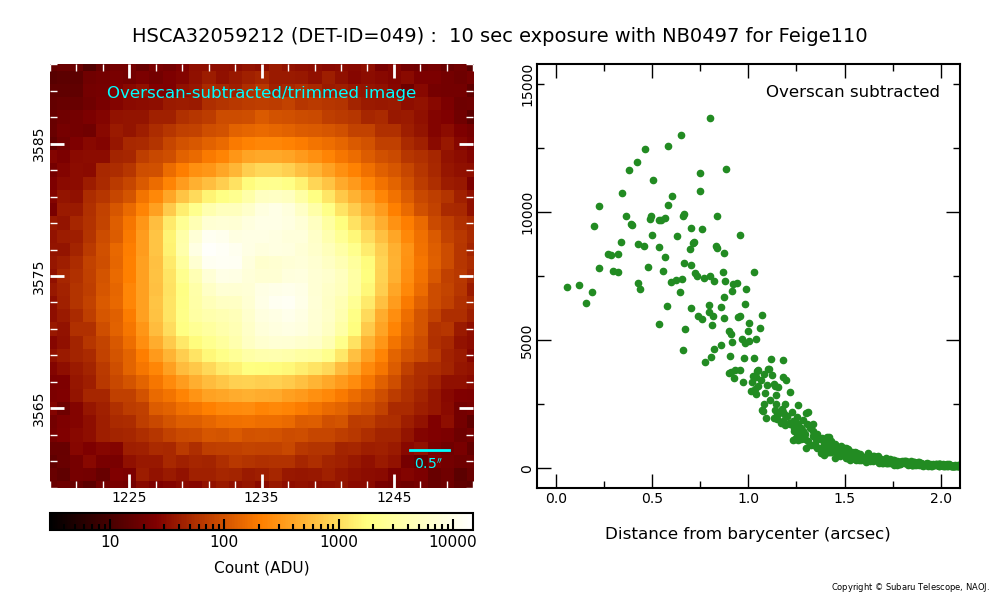

| Standard star in NB0497 | 31933212 31995212 32059212 |
|

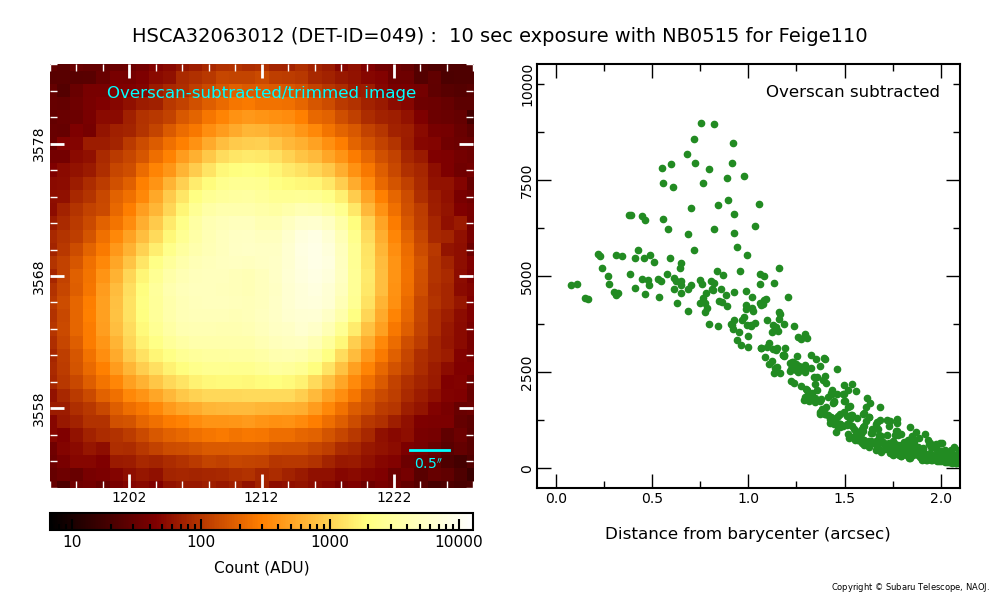

| Standard star in NB0515 | 31935012 31997212 32063012 |
|

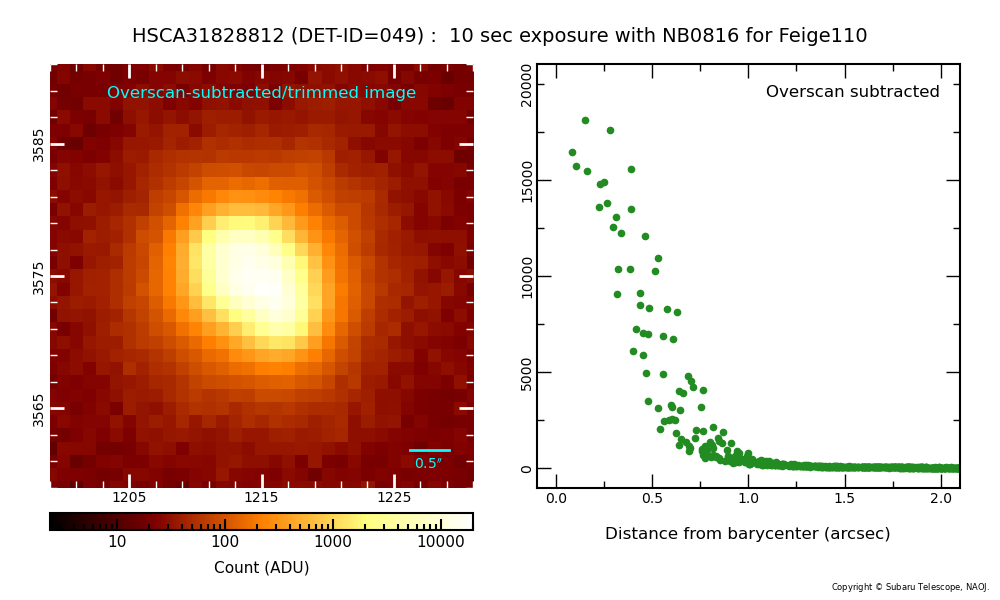

| Standard star in NB0816 | 31828812 |
2023 August run (2023/08/08 – 2023/08/24 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 31421400 – 31423357 | |
| Dark | 31474000 – 31474957 | |
| Domeflat in HSC-g | 31554400 – 31554557, 31554800 – 31556557 |
|
| Domeflat in HSC-r2 | 31388800 – 31390757 | |
| Domeflat in HSC-i2 | 31301000 – 31302957 | |
| Domeflat in HSC-z | 31259800 – 31261757 | |
| Domeflat in NB0497 | 31341400 – 31343357 | Obtained with the top-ring flat lamps |
| Domeflat in NB0506 | 31382200 – 31384157 | Obtained with the top-ring flat lamps |
| Domeflat in NB0816 | 31532600 – 31534557 | Obtained with the top-ring flat lamps |
| Domeflat in NB0872 | 31512600 – 31514557 | Obtained with the top-ring flat lamps |

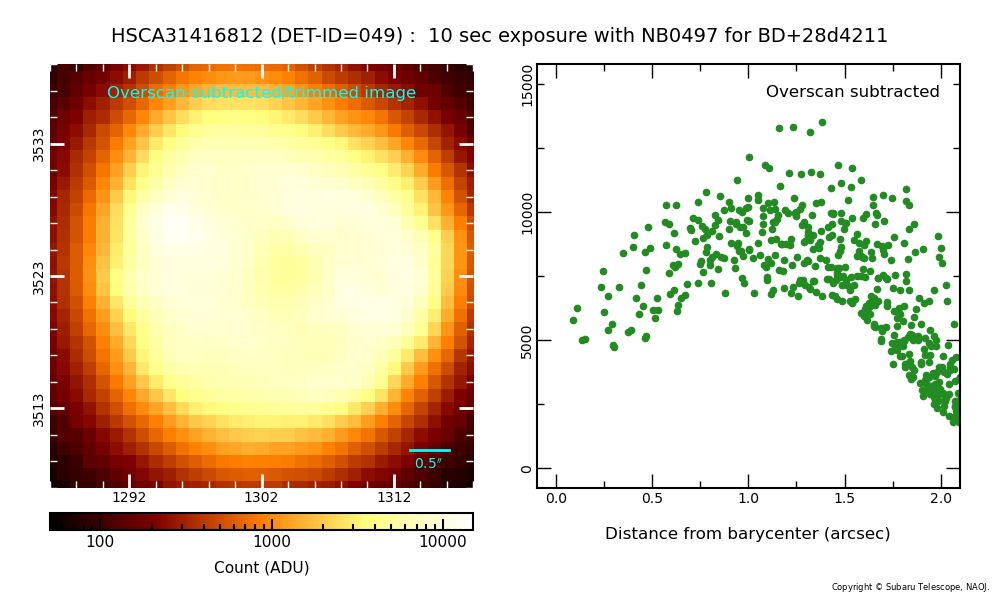

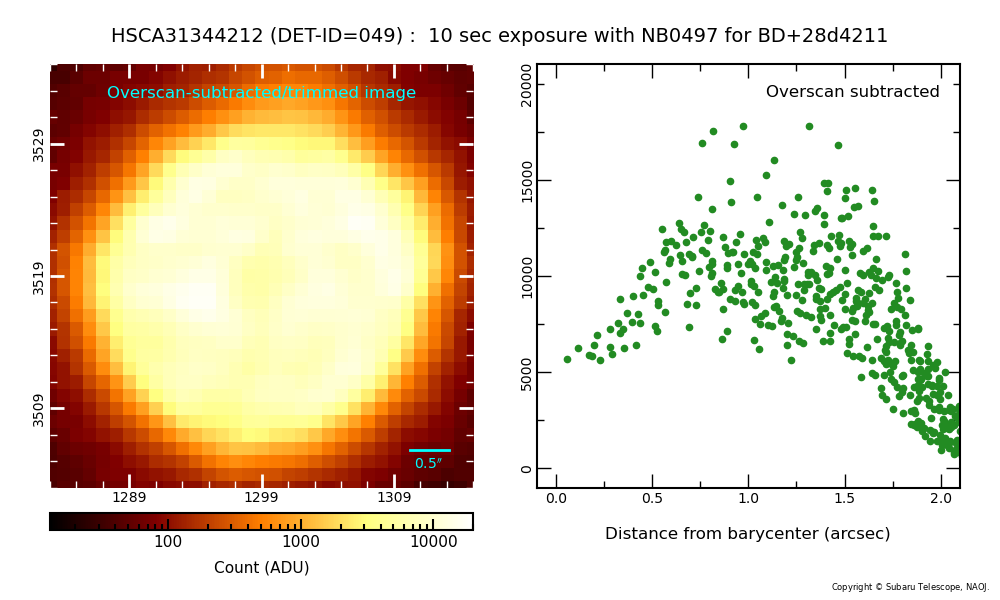

| Standard star in NB0497 | 31344212 31416812 |
|

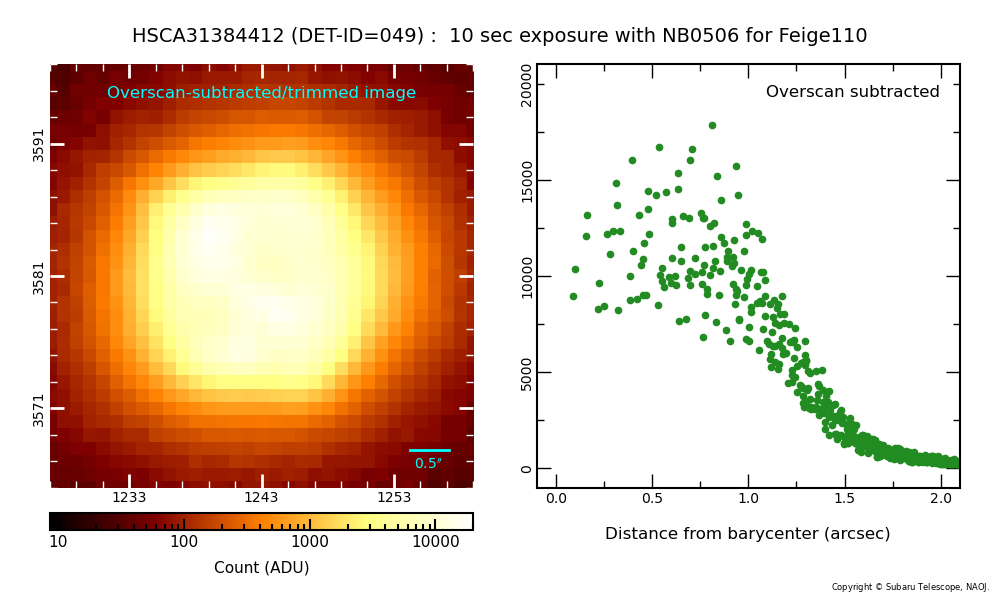

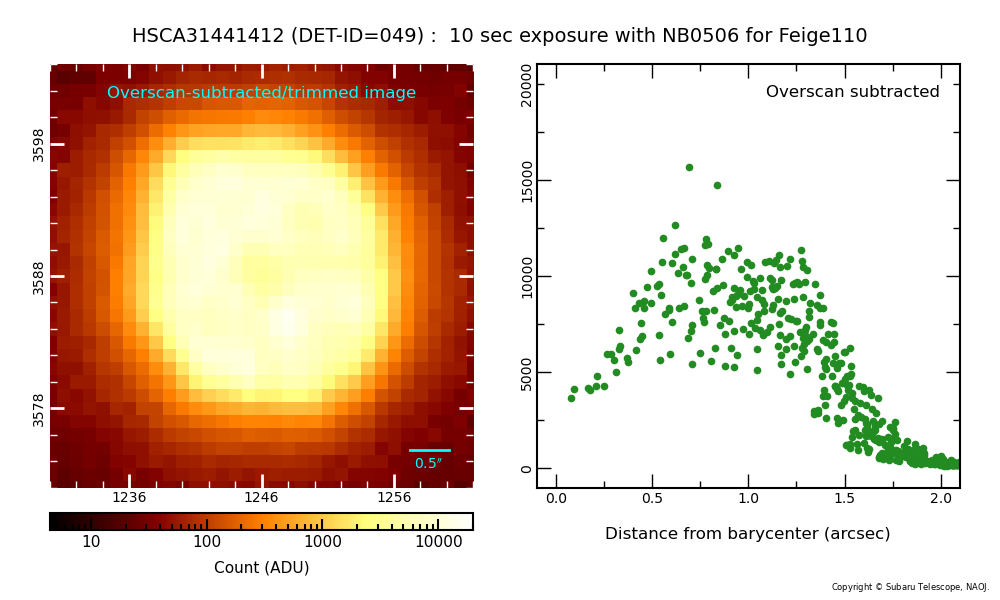

| Standard star in NB0506 | 31384212, 31384412 31441412 |
|

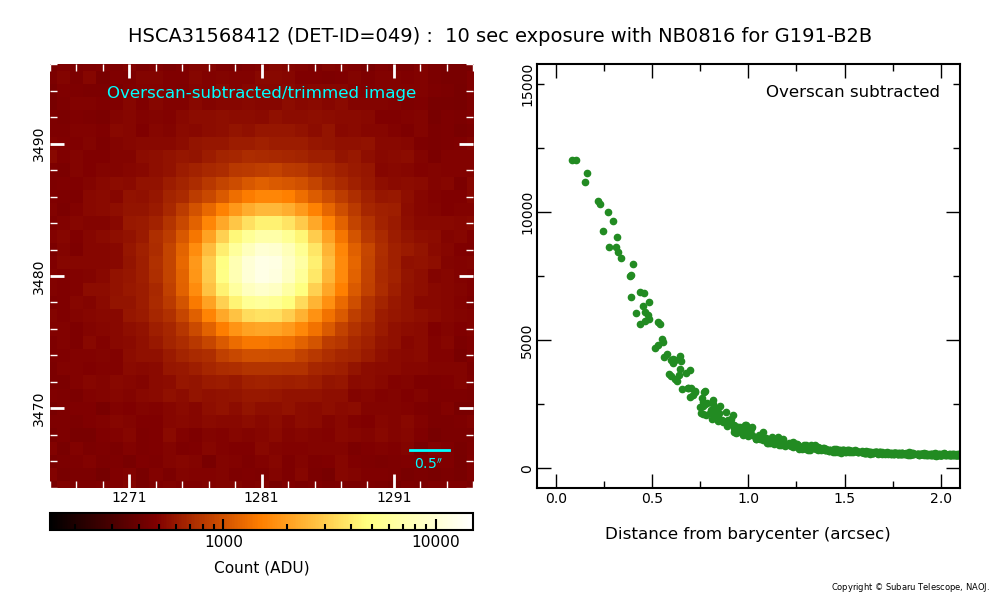

| Standard star in NB0816 | 31529012 31568412 |
|

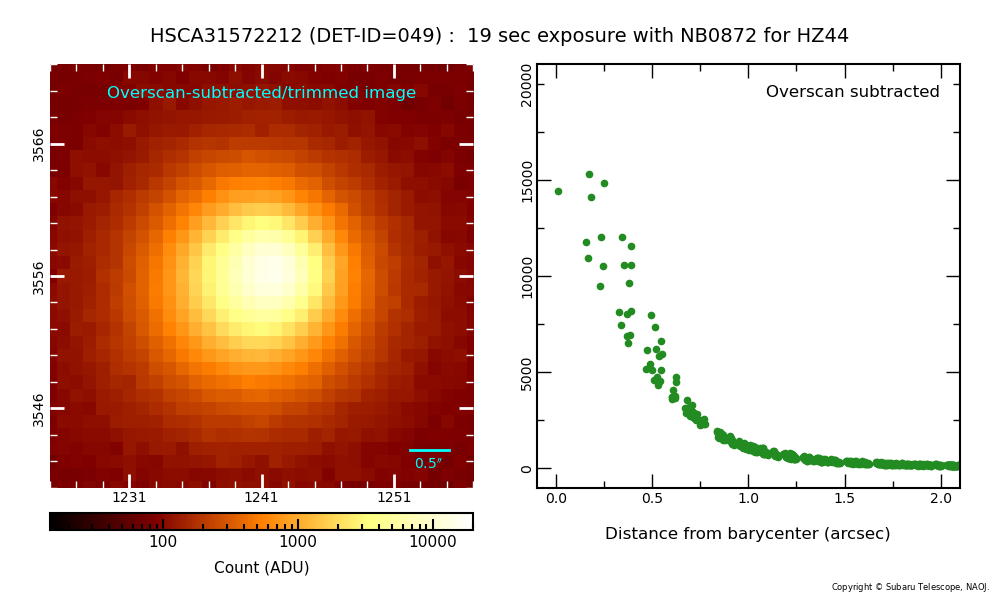

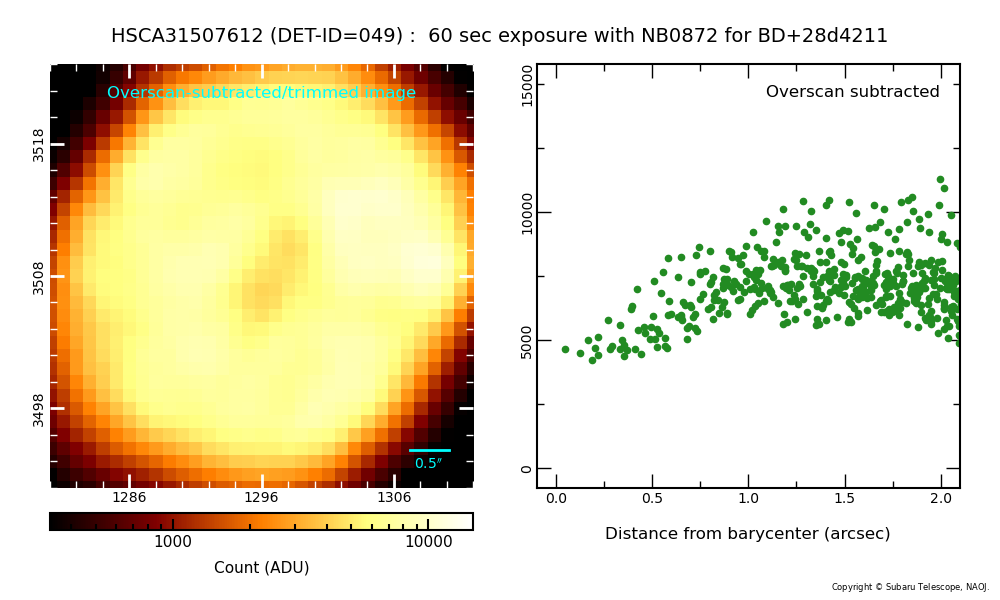

| Standard star in NB0872 | 31507612 31536212 31572012, 31572212 31620612 |
2023 June run (2023/06/15 – 2023/06/21 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 31037600 – 31039557 | |
| Dark | 31036600 – 31037557 | |
| Domeflat in HSC-g | 30999600 – 31001557 | Cable-tie shadows on CCD #102 (details) |
| Domeflat in HSC-r2 | 31119800 – 31121757 | |
| Domeflat in HSC-z | 30975400 – 30977357 | |
| Domeflat in NB0497 | 31026800 – 31028757 | Obtained with the top-ring flat lamps Cable-tie shadows on CCD #102 (details) |

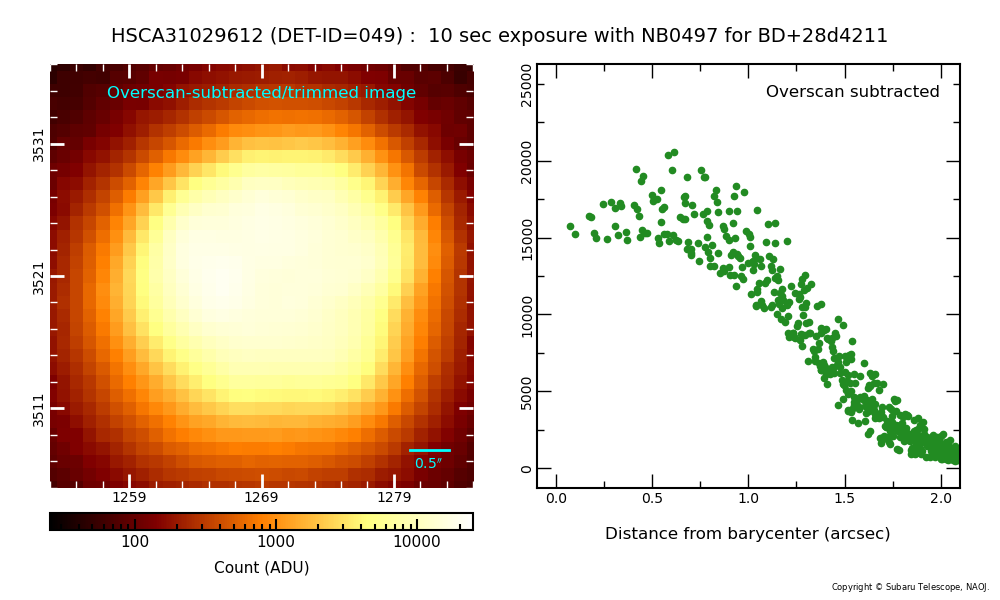

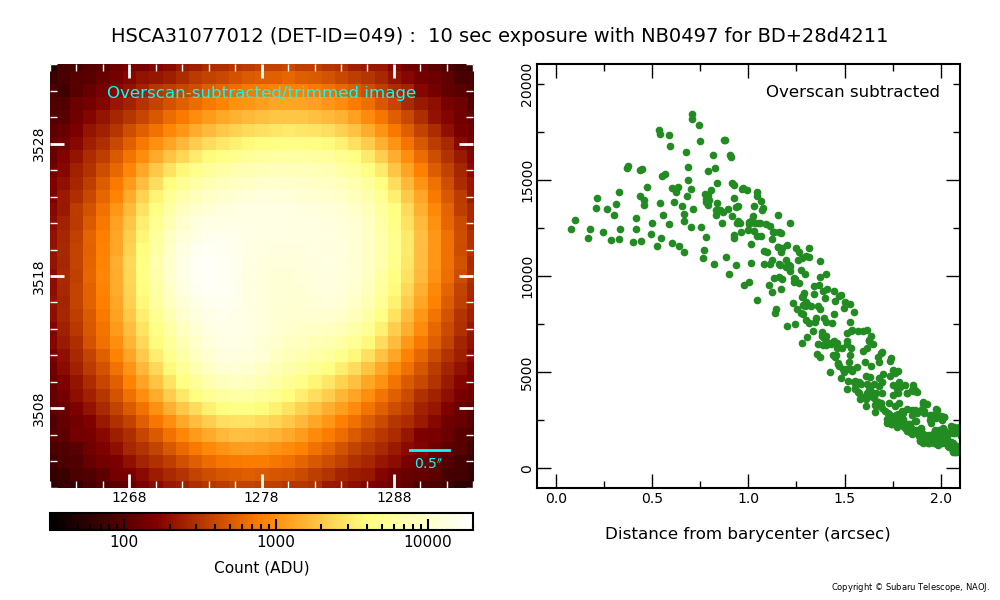

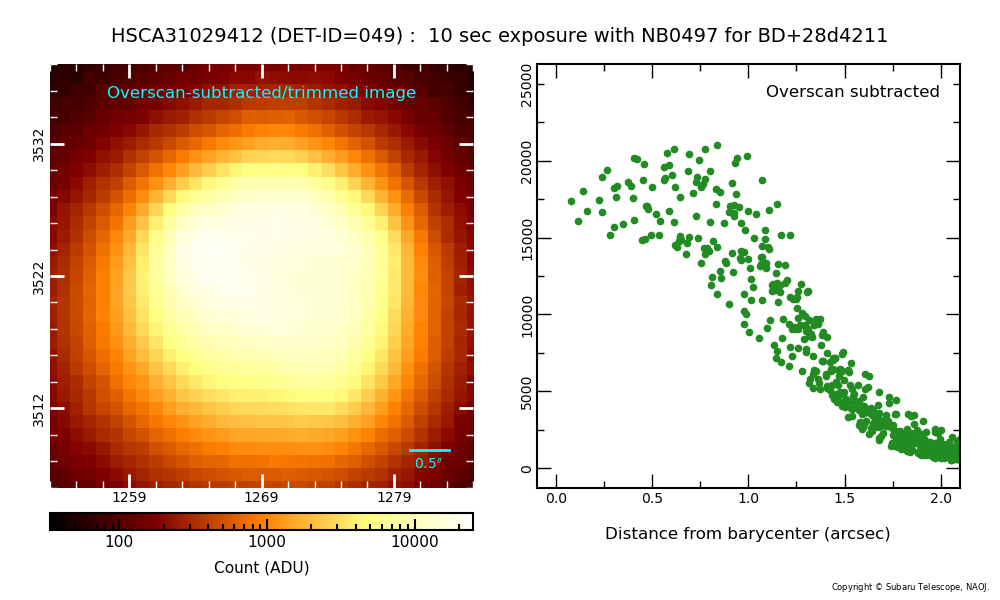

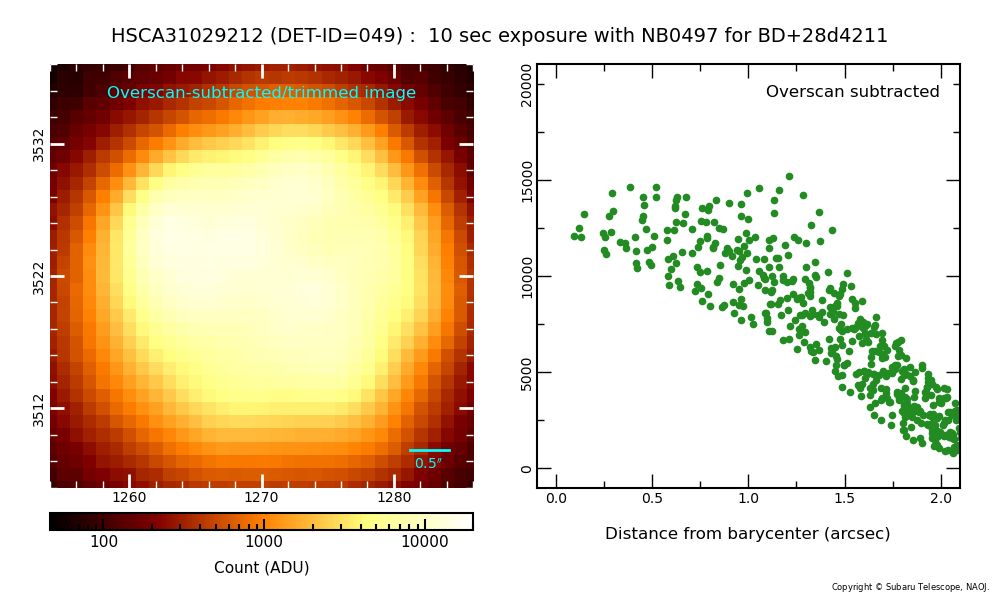

| Standard star in NB0497 | 31029212, 31029412, 31029612 31077012, 31077212 31125412 |
2023 May run (2023/05/11 – 2023/05/24 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 30777800 – 30779757 | |
| Dark | 30779800 – 30780757 | |
| Domeflat in HSC-g | 30747200 – 30749157 | Cable-tie shadows on CCDs #022 and #100 + light emission on CCD #100 (details) |
| Domeflat in HSC-r2 | 30781000 – 30782957 | Cable-tie shadows on CCD #022 (details) |
| Domeflat in HSC-i2 | 30650600 – 30652557 | Cable-tie shadows on CCD #022 (details) |
| Domeflat in HSC-z | 30675600 – 30677557 | Cable-tie shadows on CCD #022 (details) |
| Domeflat in NB0872 | 30789000 – 30790957 | Obtained with the top-ring flat lamps (10W, 6.0V, 6.33 A) Cable-tie shadows on CCD #022 (details) |
| Domeflat in NB0921 | 30797000 – 30798957 | Obtained with the on-axis lamp Cable-tie shadows on CCD #022 (details) |

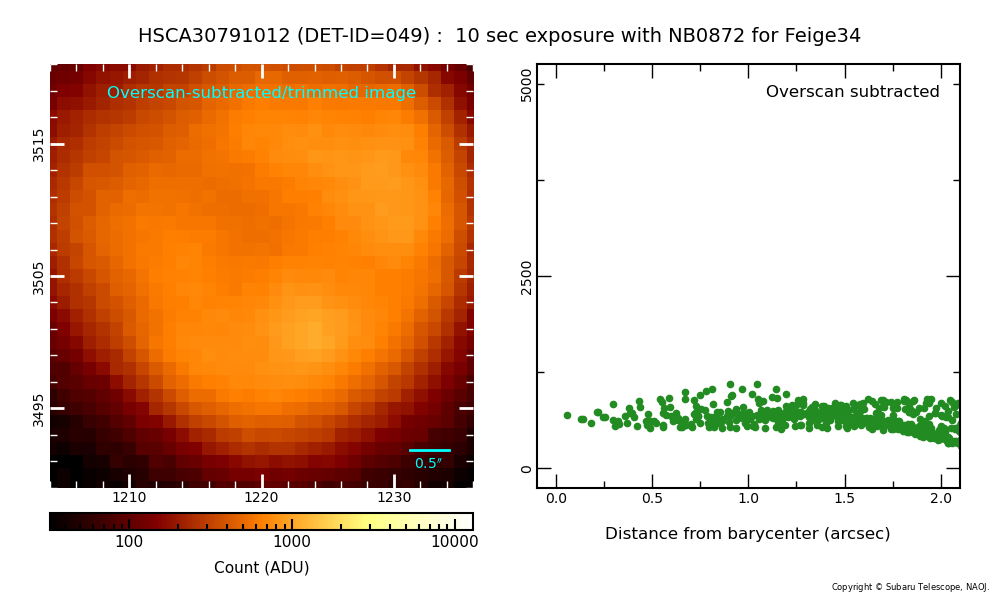

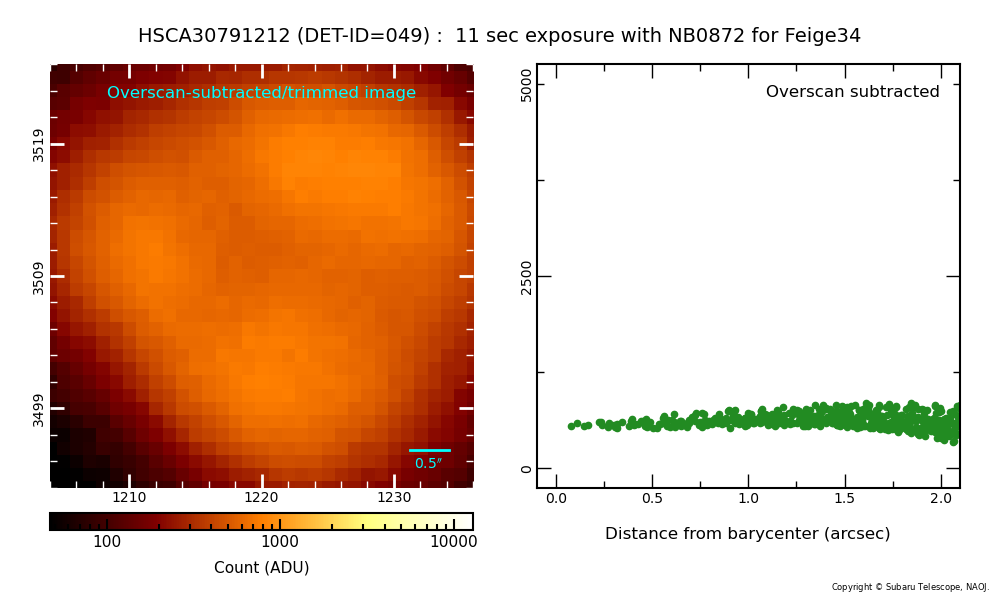

| Standard star in NB0872 | 30791012, 30791212 | The peak counts are significantly lower than the specified level. |
| Standard star in NB0921 | 30799612 |
2023 Mar run (2023/03/15 – 2023/03/28 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 30274600 – 30276557 | |
| Dark | 30276600 – 30277557 | |
| Domeflat in HSC-g | 30272600 – 30274557 | |
| Domeflat in HSC-r2 | 30145000 – 30146957 | |
| Domeflat in HSC-i2 | 30087800 – 30089757 | |
| Domeflat in HSC-z | 30034000 – 30035957 | |
| Domeflat in HSC-Y | 30242200 – 30244157 | |
| Domeflat in NB0497 | 30258200 – 30260157 | Obtained with the top-ring flat lamps |
| Domeflat in NB0921 | 30101200 – 30103157 | Obtained with the on-axis flat lamp |
| Domeflat in EB-gri | 30129400 – 30131357 | Obtained with the top-ring flat lamps |

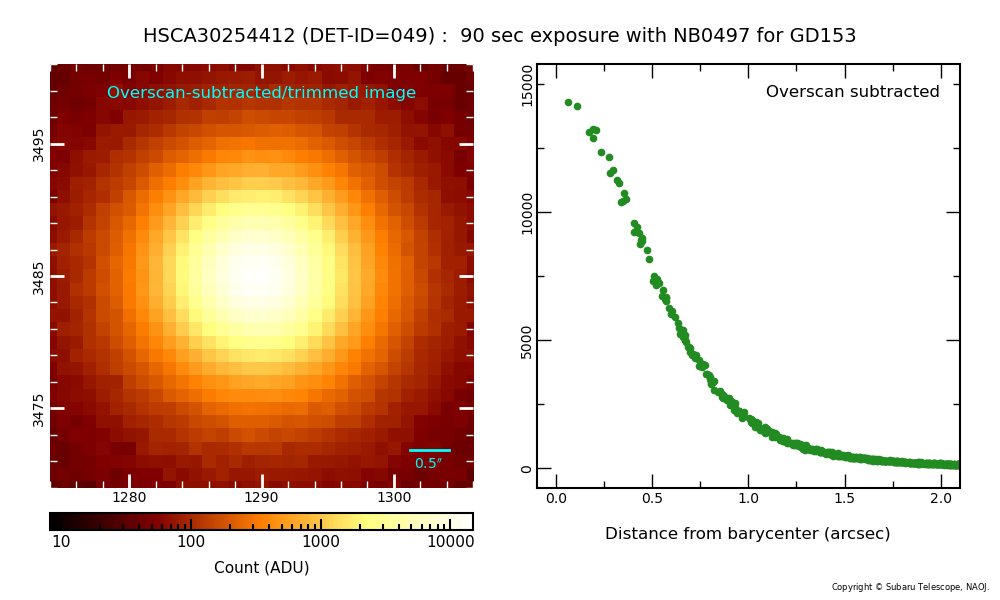

| Standard star in NB0497 | 30254412 | |
| Standard star in NB0921 | 30104212 |
2023 Jan run (2023/01/12 – 2023/01/26 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 29704000 – 29705957 | |
| Dark | 29904800 – 29905757 | |
| Domeflat in HSC-g | 29908400 – 29910357 | |
| Domeflat in HSC-r2 | 29421400 – 29423357 | |
| Domeflat in HSC-i2 | 29717200 – 29719157 | |
| Domeflat in HSC-z | 30001400 – 30003357 | |
| Domeflat in NB0391 | 29862800 – 29864757 | Obtained with the top-ring flat lamps |
| Domeflat in NB0395 | 29821600 – 29823557 | Obtained with the top-ring flat lamps |
| Domeflat in NB0506 | 29722800 – 29724757 | Obtained with the top-ring flat lamps |
| Domeflat in NB0718 | 30004200 – 30006157 | Obtained with the on-axis flat lamp |
| Standard star in NB0391 | 29862212 | |
| Standard star in NB0395 | 29771212, 29904412 | |
| Standard star in NB0718 | 30024412 |
2022 Oct run (2022/10/18 – 2022/11/02 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 28954200 – 28956157 | |
| Dark | 28953200 – 28954157 | |
| Domeflat in HSC-g | 28887800 – 28889957 | |
| Domeflat in HSC-r2 | 29111200 – 29113157 | |
| Domeflat in HSC-i2 | 29306000 – 29307957 | |
| Domeflat in HSC-z | 29355600 – 29357557 | |
| Domeflat in NB0497 | 29148800 – 29150757 | |
| Domeflat in NB0816 | 29018200 – 29019157 | Only 5 shots |
| Domeflat in NB0921 | 28990800 – 28992757 29032000 – 29033957 |
Obtained with the top-ring flat lamps Obtained with the on-axis flat lamp |
| Domeflat in EB-gri | 28958000 – 28959957 | Obtained with the top-ring flat lamps |

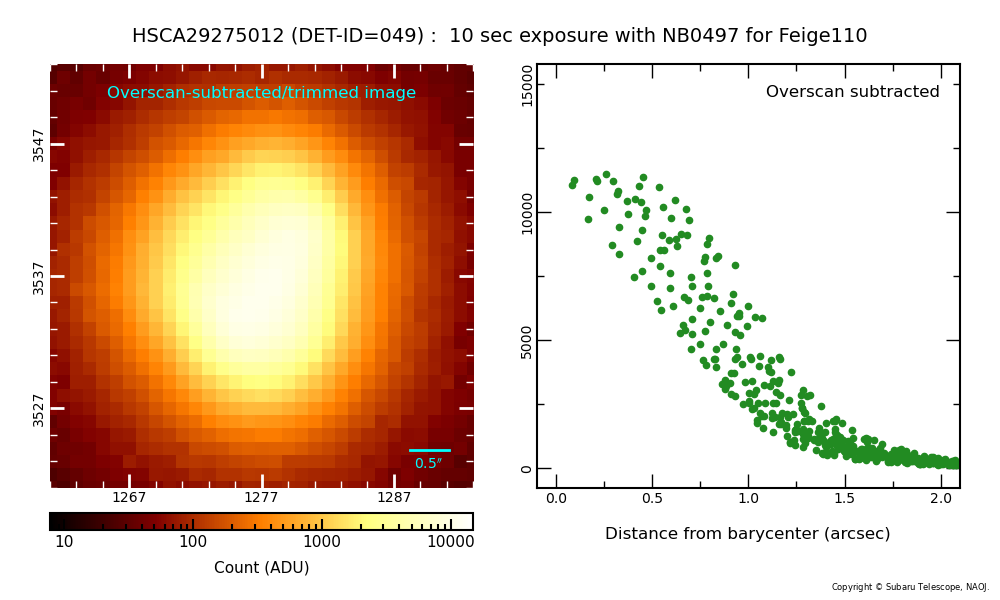

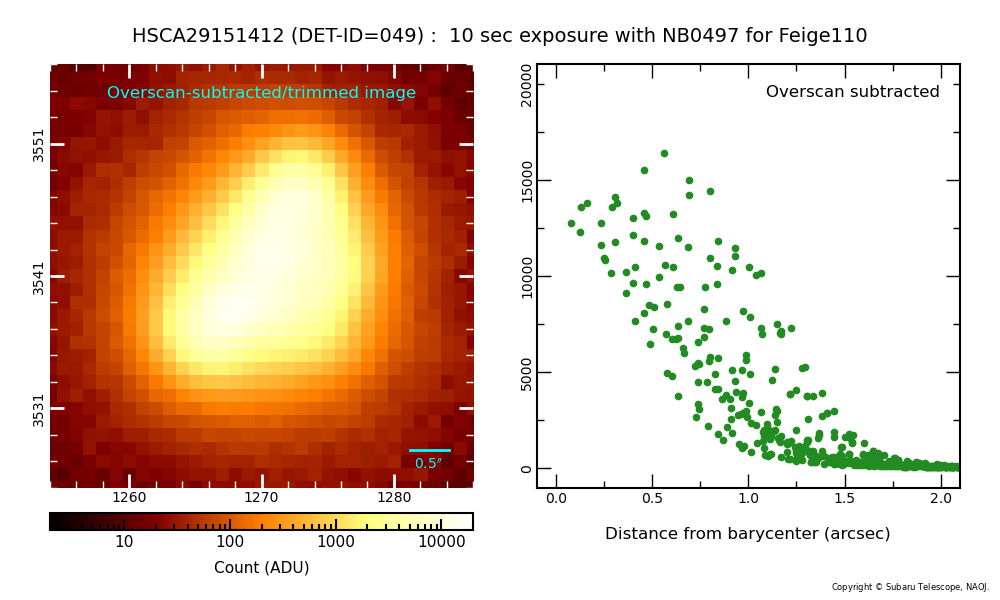

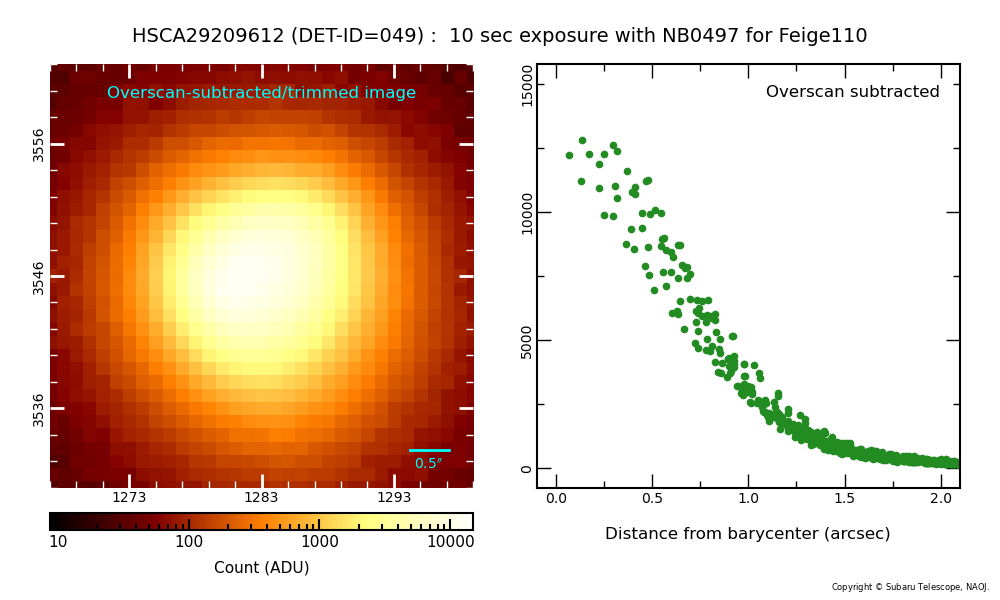

| Standard star in NB0497 | 29151412, 29181212 29209612, 29275012 |
|

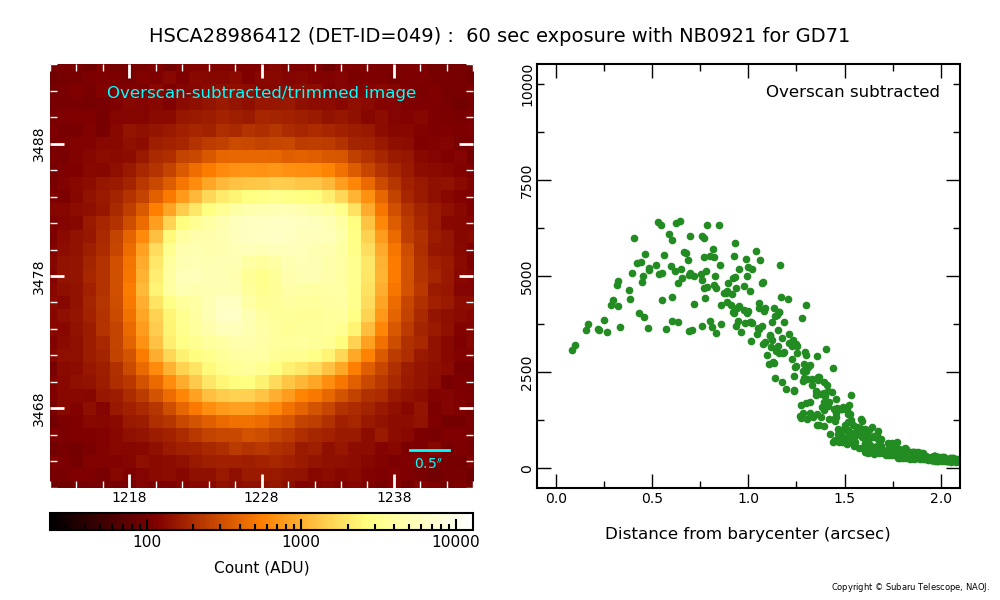

| Standard star in NB0921 | 28986412, 29028412 |
2022 Jun run (2022/06/27 – 2022/07/05 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 28777000 – 28778957 | |
| Dark | 28779000 – 28779957 | |
| Domeflat in HSC-g | 28626400 – 28628557 28682000 – 28684157 28738000 – 28739957 |
Shadows on CCD #022 & #100 (details) |
| Domeflat in HSC-r2 | 28786600 – 28788557 | |
| Domeflat in HSC-z | 28576200 – 28578157 | Shadows on CCD #022 & #100 (details) |
| Domeflat in NB0497 | 28781400 – 28783357 | Obtained with the top-ring flat lamps |
| Domeflat in NB0656 | 28773000 – 28774957 | Obtained with the "on-axis" flat lamp |

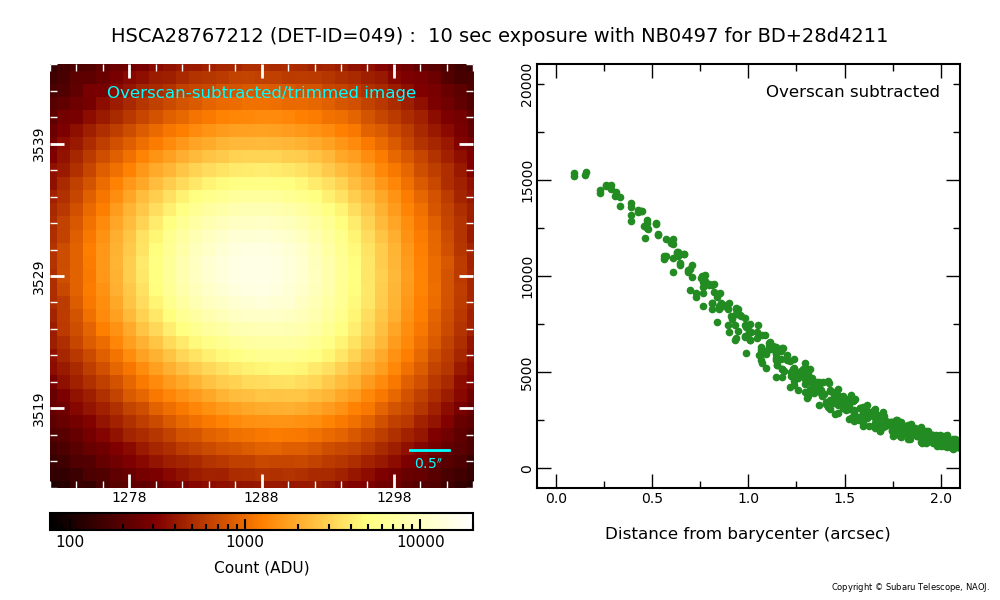

| Standard star in NB0497 | 28767212, 28816812 28836012 |
|
| Standard star in NB0656 | 28776012, 28811412 |
2022 May run (2022/05/25 – 2022/06/07 HST)
| Data | Frame IDs |
|---|---|
| Bias | 28105600 – 28107557 |
| Dark | 28130200 – 28131157 |
| Domeflat in HSC-g | 27985800 – 27987757 28139000 – 28144957 |
| Domeflat in HSC-r2 | 28313600 – 28315557 |
| Domeflat in HSC-i2 | 28103400 – 28105357 |
| Domeflat in HSC-z | 28401800 – 28403757 |
2022 Apr run (2022/04/25 – 2022/05/08 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 27756800 – 27758757 | |
| Dark | 27924600 – 27925557 | |
| Domeflat in HSC-g | 27683400 – 27685357 | |
| Domeflat in HSC-i2 | 27837600 – 27839557 | |
| Domeflat in HSC-z | 27928400 – 27930357 | |
| Domeflat in NB0395 | 27842600 – 27844557 | Obtained with the top-ring flat lamps |
2022 Jan run (2021/12/29 – 2022/01/03 HST)
| Data | Frame IDs |
|---|---|
| Bias | 27609200 – 27611157 |
| Domeflat in HSC-z | 27607200 – 27609157 |
2021 Dec run (2021/11/30 - 2021/12/09 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 27476400 – 27478357 | |
| Dark | 27601800 – 27602557 | Only 4 shots |
| Domeflat in HSC-g | 27546800 – 27548757 | |
| Domeflat in HSC-r2 | 27479800 – 27481757 | |
| Domeflat in HSC-z | 27470400 – 27472357 |
2021 Nov run (2021/10/27 – 2021/11/09 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 27256600 – 27258557 | |
| Dark | 27315200 – 27315757, 27431400 – 27431757 |
Three exposures with the g-band Two exposures with the r2-band (partially affected by stray light) |
| Domeflat in HSC-g | 26878200 – 26880157 | |
| Domeflat in HSC-r2 | 26810400 – 26812357 | |
| Domeflat in HSC-i2 | 26845400 – 26847357 | |
| Domeflat in HSC-z | 27434200 – 27436157 | |
| Domeflat in HSC-Y | 26969200 – 26971157 | |
| Domeflat in NB0497 | 27204600 – 27206557 | |

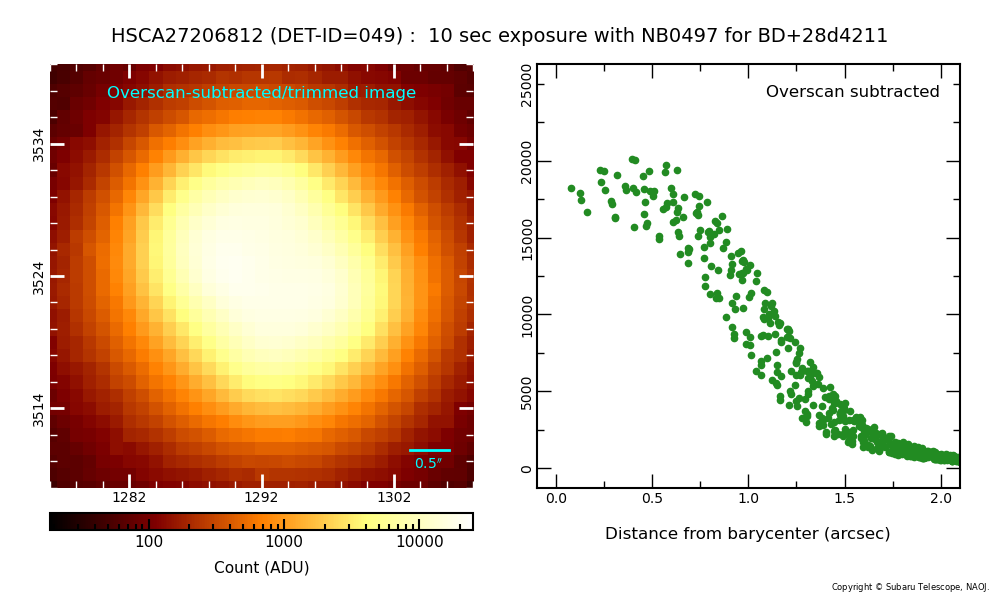

| Standard star in NB0497 | 27206812 |
2021 Oct run (2021/09/30 - 2021/10/12 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 26523000 – 26524957 | |
| Dark | 26522000 – 26522957 | |
| Domeflat in HSC-g | 26520000 – 26521957 | |
| Domeflat in HSC-r2 | 26591000 – 26592957 | |
| Domeflat in HSC-i2 | 26544600 – 26546557 | |
| Domeflat in HSC-z | 26795200 – 26797157 | |
| Domeflat in HSC-Y | 26560200 – 26562157 | |
| Domeflat in NB0395 | 26506200 – 26508157 | Obtained with the top-ring flat lamps |

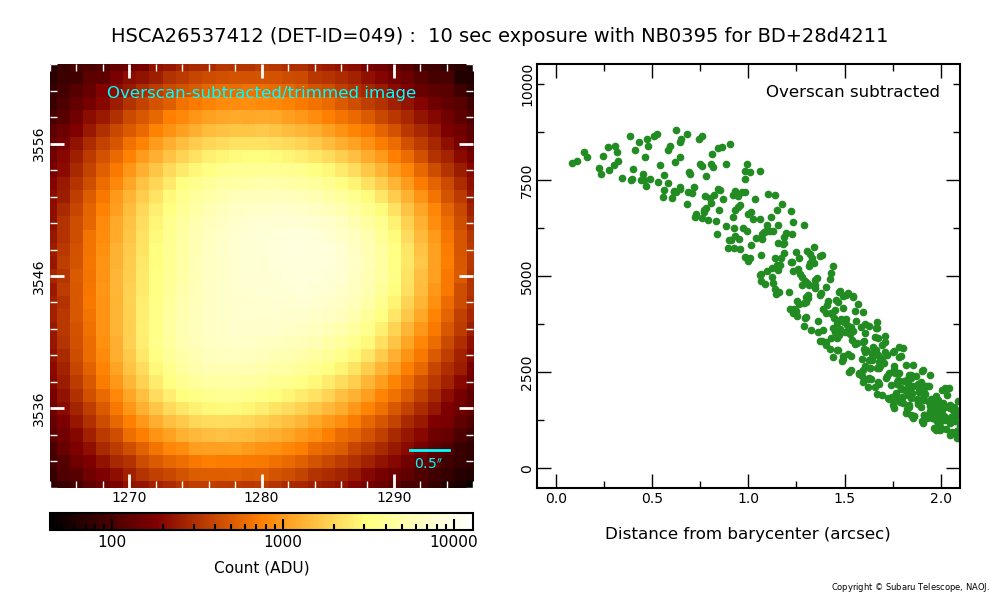

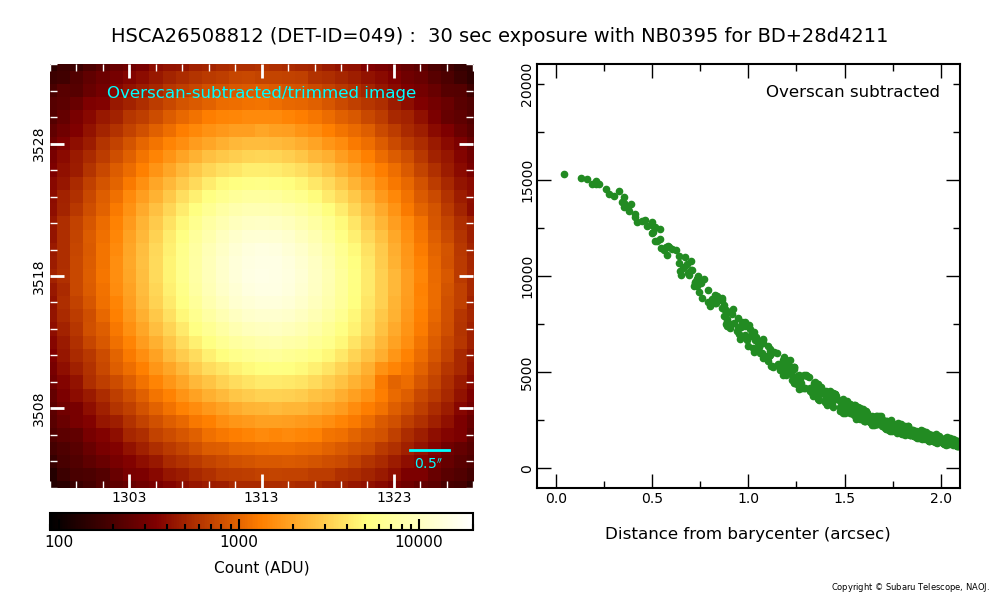

| Standard star in NB0395 | 26508812, 26517012 26537412 |
2021 Sep run (2021/08/30 - 2021/09/07 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 26404000 – 26405957 | |
| Domeflat in HSC-g | 26185200 – 26187157 | |
| Domeflat in HSC-r2 | 26319800 – 26321757 | |
| Domeflat in HSC-i2 | 26343200 – 26345157 | |
| Domeflat in HSC-Y | 26447400 – 26449357 | |
| Domeflat in NB0395 | 26338200 – 26340157 | Obtained with the top-ring flat lamps |
| Domeflat in NB0527 | 26246200 – 26247157 | Only 5 exposures with the "on-axis" flat lamp |
| Standard star in NB0395 | 26333812, 26356212 | |
| Standard star in NB0527 | 26247812 |
★ Note: No dark data was obtained in this run.
2021 Jul run (2021/06/28 – 2021/07/04 HST)
| Data | Frame IDs |
|---|---|
| Bias | 25999600 – 26001557 |
| Dark | 26001600 – 26002557 |
| Domeflat in HSC-g | 26002800 – 26004757 |
| Domeflat in HSC-r2 | 26081200 – 26083157 |
| Domeflat in HSC-i2 | 26007400 – 26009357 |
| Domeflat in HSC-z | 25934600 – 25936557 |
2021 Jun run (2021/06/08 – 2021/06/16 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 25726400 – 25728357 | |
| Dark | 25881000 – 25881757 | Only 4 exposures |
| Domeflat in HSC-g | 25571200 – 25573157 | |
| Domeflat in HSC-r2 | 25566600 – 25568557 | |
| Domeflat in HSC-z | 25619800 – 25621757 | |
| Domeflat in HSC-Y | 25655600 – 25657557 |
★ Note: No i2-band domeflat data was obtained in this run.
2021 Feb run (2021/02/04 – 2021/02/18 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 24843800 – 24845757 | |
| Dark | 25304400 – 25305357 | |
| Domeflat in HSC-g | 24863200 – 24865157 | Taken by using the on-axis dome flat lamp. |
| Domeflat in HSC-r2 | 24899400 – 24901357 | Taken by using the on-axis dome flat lamp. |
| Domeflat in HSC-i2 | 25305400 – 25307357 | Taken by using the on-axis dome flat lamp. |
| Domeflat in HSC-z | 24839800 – 24841757 | Taken by using the on-axis dome flat lamp. |
| Domeflat in HSC-Y | 25373200 – 25375157 | Taken by using the on-axis dome flat lamp. |
★ Note: "On-axis domeflat" has been introduced as the default science calibration data. (report)
2021 Jan run (2021/01/06 – 2021/01/19 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 24487400 – 24489357 | |
| Dark | 24489400 – 24490357, 24523600 – 24524557 |
CCD #062 emitted light. |
| Domeflat in HSC-r2 | 24401400 – 24403357 | |
| Domeflat in HSC-i2 | 24447200 – 24449157 | |
| Domeflat in HSC-z | 24354800 – 24356757 |
2020 Dec run (2020/12/07 – 2020/12/21 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 24062800 – 24064757 | |
| Dark | 24089200 – 24090157 | |
| Domeflat in HSC-g | 23980000 – 23981957 | |
| Domeflat in HSC-r2 | 23962400 – 23964357 | |
| Domeflat in HSC-i2 | 23940200 – 23942157 | |
| Domeflat in HSC-z | 23838000 – 23839957 | |
| Domeflat in HSC-Y | 24109200 – 24111157 | |
| Domeflat in NB0430 | 24123400 – 24125357 | |
| Skyflat in HSC-g | 24026200 – 24027757 |
2020 Nov run (2020/11/09 – 2020/11/19 HST)
| Data | Frame IDs |
|---|---|
| Bias | 23498600 – 23500557 |
| Dark | 23661000 – 23661957 |
| Domeflat in HSC-g | 23662000 – 23663957 |
| Domeflat in HSC-r2 | 23486400 – 23488357 |
| Domeflat in HSC-z | 23459800 – 23461757 |
| Domeflat in HSC-Y | 23542200 – 23544157 |
2020 Oct run (2020/10/08 – 2020/10/25 HST)
| Data | Frame IDs |
|---|---|
| Bias | 23039400 – 23041357 |
| Dark | 23041400 – 23042357 |
| Domeflat in HSC-g | 23255200 – 23257157 |
| Domeflat in HSC-r2 | 22823400 – 22825357 |
| Domeflat in HSC-i2 | 22878200 – 22880157 |
| Domeflat in HSC-z | 22778400 – 22780357 |
| Domeflat in HSC-Y | 23143000 – 23144957 |
2020 Aug run (2020/08/11 – 2020/08/25 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 22361600 – 22363557 | |
| Dark | 22585000 – 22585957 | |
| Domeflat in HSC-g | 22583000 – 22584957 | |
| Domeflat in HSC-r2 | 22318000 – 22319957 | |
| Domeflat in HSC-i2 | 22357000 – 22358957 | |
| Domeflat in HSC-z | 22521600 – 22523557 | |
| Domeflat in HSC-Y | 22453600 – 22455557 | |
| Domeflat in NB0816 | 22586200 – 22588157 |
★ Note: The flat patterns were changed from the previous runs due to flat panel renewal in July. (image)
2020 Jun run (2020/06/18 – 2020/06/25 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 22193600 – 22195557 | Affected by stray light (report) |
| Dark | 22234400 – 22235357 | |
| Domeflat in HSC-g | 22052800 – 22054757 | |
| Domeflat in HSC-r2 | 21965400 – 21967357 | |
| Domeflat in HSC-i2 | 22012600 – 22014557 | |
| Domeflat in HSC-z | 22093200 – 22095157 | |
| Domeflat in HSC-Y | 22134000 – 22135957 |
2020 May run (2020/05/18 – 2020/05/31 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 21834800 – 21836757 | Saturated area of CCD #033 was expanded. (image) |
| Dark | 21742400 – 21743357 | |
| Domeflat in HSC-g | 21570600 – 21572557 | |
| Domeflat in HSC-r2 | 21416600 – 21418557 | |
| Domeflat in HSC-i2 | 21538400 – 21540357 | |
| Domeflat in HSC-z | 21509800 – 21511757 | |
| Domeflat in HSC-Y | 21698400 – 21700357 | |
| Domeflat in NB0921 | 21533600 – 21535557 | |
| Standard star in NB0921 | 21650212 |
2020 Mar run (2020/03/18 – 2020/03/23 HST)
| Data | Frame IDs |
|---|---|
| Bias | 21268600 – 21270557 |
| Dark | 21270600 – 21271557 |
| Domeflat in HSC-g | 21284400 – 21286357 |
| Domeflat in HSC-r2 | 21370800 – 21372757 |
| Domeflat in HSC-z | 21356600 – 21358557 |
| Domeflat in HSC-Y | 21258000 – 21259957 |
| Domeflat in NB0400 | 21266600 – 21268557 |
★ Note: No i2-band domeflat data was obtained in this run.
2020 Feb run (2020/02/18 – 2020/03/02 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 21188800 – 21190757 | |
| Dark | 21204600 – 21205557 | Stray light (~0.003 ADU/sec) spreads over multiple CCDs centered on #081. (report) |
| Domeflat in HSC-g | 20897000 – 20898957 | |
| Domeflat in HSC-r2 | 20961600 – 20963557 | |
| Domeflat in HSC-i2 | 20780400 – 20782357 | |
| Domeflat in HSC-z | 20735200 – 20737157 | |
| Domeflat in HSC-Y | 20810200 – 20812157 | |
| Domeflat in NB0926 | 21205600 – 21207557 | |
| Standard star in NB0926 | 21084012 |
2020 Jan run (2020/01/16 – 2020/01/29 HST)
| Data | Frame IDs |
|---|---|
| Bias | 20254800 – 20256757 |
| Dark | 20256800 – 20257757 |
| Domeflat in HSC-g | 20257800 – 20259757 |
| Domeflat in HSC-r2 | 20340000 – 20341957 |
| Domeflat in HSC-i2 | 20567600 – 20569557 |
| Domeflat in HSC-z | 20698200 – 20700157 |
| Domeflat in HSC-Y | 20380000 – 20381957 |
| Domeflat in NB0468 | 20635800 – 20637757 |
| Standard star in NB0468 | 20555812 |
2019 Dec run (2019/12/19 – 2020/01/02 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 19685400 – 19687357 | |

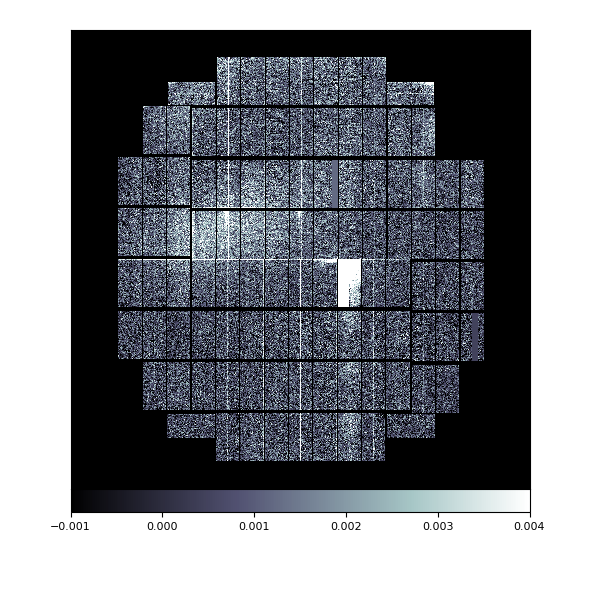

| Dark | 19687400 – 19688357 | Stray light (~0.003 ADU/sec) spreads over multiple CCDs centered on #081. (report) |
| Domeflat in HSC-g | 19797400 – 19799357 | |
| Domeflat in HSC-r2 | 19683400 – 19685357 | |
| Domeflat in HSC-i2 | 19788200 – 19790157 | |
| Domeflat in HSC-z | 19622200 – 19624157 | |
| Domeflat in HSC-Y | 20118200 – 20120157 | |
| Domeflat in NB0926 | 19792800 – 19794757 | |

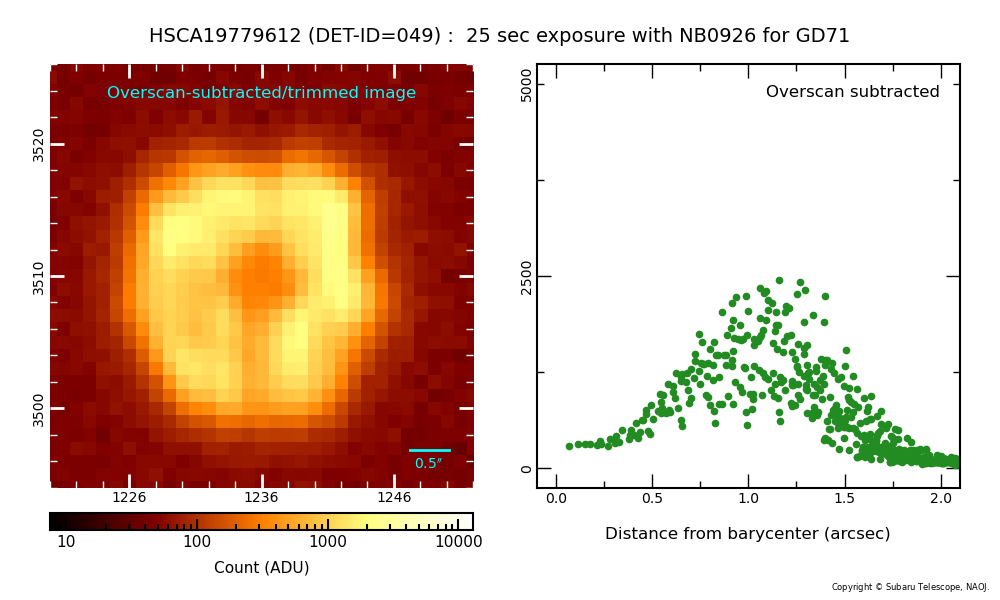

| Standard star in NB0926 | 19779412, 19779612 |
2019 Nov run (2019/11/19 – 2019/12/04 HST)
| Data | Frame IDs |
|---|---|
| Bias | 19238200 – 19240157 |
| Dark | 19303000 – 19303957 |
| Domeflat in HSC-g | 19301000 – 19302957 |
| Domeflat in HSC-r2 | 19399800 – 19401757 |
| Domeflat in HSC-i2 | 19448000 – 19449957 |
| Domeflat in HSC-z | 19236200 – 19238157 |
| Domeflat in HSC-Y | 19452000 – 19453957 |
| Domeflat in NB0400 | 19277000 – 19278957, 19293800 – 19295757 |
| Standard star in NB0400 | 19279412, 19291012, 19296012 |
2019 Oct run (2019/10/22 – 2019/11/07 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 18951200 – 18953157 | |
| Dark | 18982200 – 18983157 | |
| Domeflat in HSC-g | 18693400 – 18695357 | The flat pattern has changed from the previous run probably due to WFC lens cleaning. |
| Domeflat in HSC-r2 | 18756600 – 18758557 | The flat pattern has changed from the previous run probably due to WFC lens cleaning. |
| Domeflat in HSC-i2 | 18661800 – 18663757 | The flat pattern has changed from the previous run probably due to WFC lens cleaning. |
| Domeflat in HSC-z | 18625000 – 18626957 | The flat pattern has changed from the previous run probably due to WFC lens cleaning. |
| Domeflat in HSC-Y | 19133200 – 19135157 | The flat pattern has changed from the previous run probably due to WFC lens cleaning. |
| Domeflat in NB0816 | 18985800 – 18987757 | The flat pattern has changed from the previous run probably due to WFC lens cleaning. |

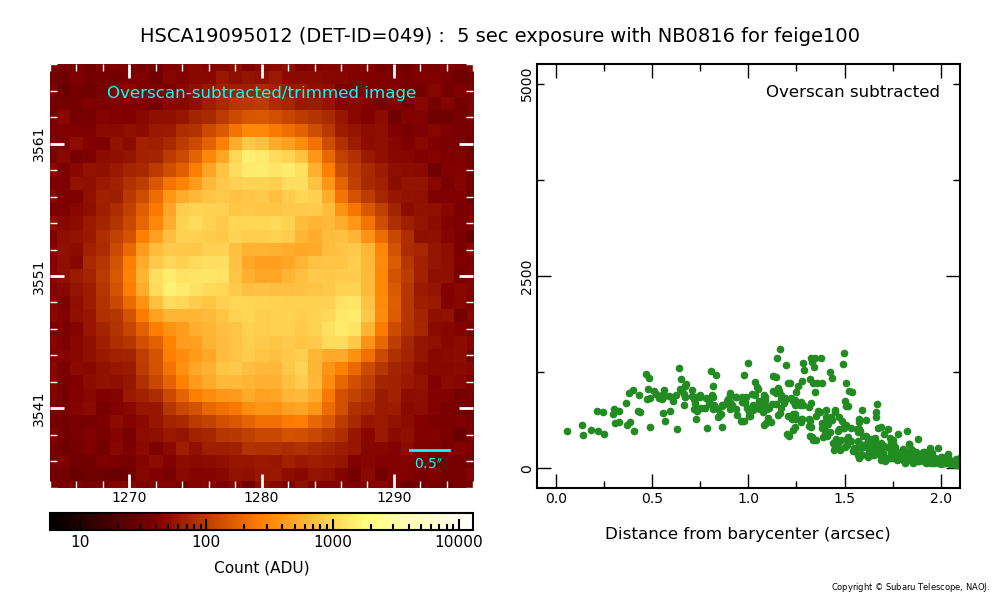

| Standard star in NB0816 | 18988012, 18988212 19095012 |
2019 Sep run (2019/09/19 – 2019/10/03 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 18455800 – 18457757 | |
| Dark | 18488200 – 18489157 | |
| Domeflat in HSC-g | 18353000 – 18354957 | A shadow appears on the images. |
| Domeflat in HSC-r2 | 18515600 – 18517557 | A shadow appears on the images. |
| Domeflat in HSC-i2 | 18510800 – 18512757 | A shadow appears on the images. |
| Domeflat in HSC-z | 18419000 – 18420957 | A shadow appears on the images. |
| Domeflat in HSC-Y | 18586800 – 18588757 | A shadow appears on the images. |
| Domeflat in NB0515 | 18483600 – 18485557 | A shadow appears on the images. |

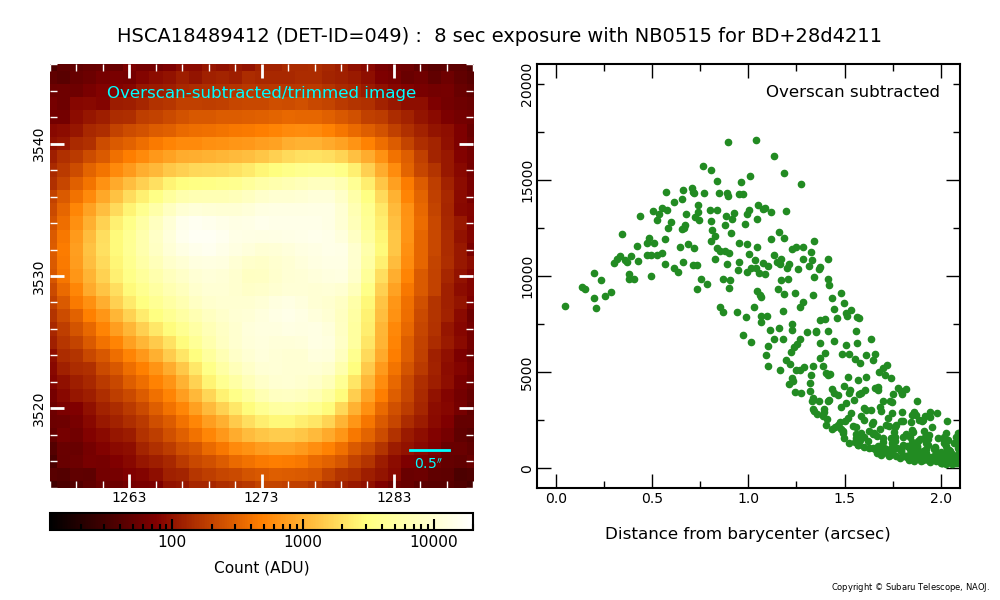

| Standard star in NB0515 | 18465412, 18489412 |
2019 Jun run (2019/05/27 – 2019/06/10 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 17934200 – 17936157 | |
| Dark | 17936200 – 17937157 | |
| Domeflat in HSC-g | 17973000 – 17974957 | A shadow appears on the images. |
| Domeflat in HSC-r2 | 17940000 – 17941957 | A shadow appears on the images. |
| Domeflat in HSC-i2 | 17906800 – 17908757 | A shadow appears on the images. |
| Domeflat in HSC-z | 17901200 – 17903157 | A shadow appears on the images. |
| Domeflat in NB0527 | 18276200 – 18278157 | A shadow appears on the images. |

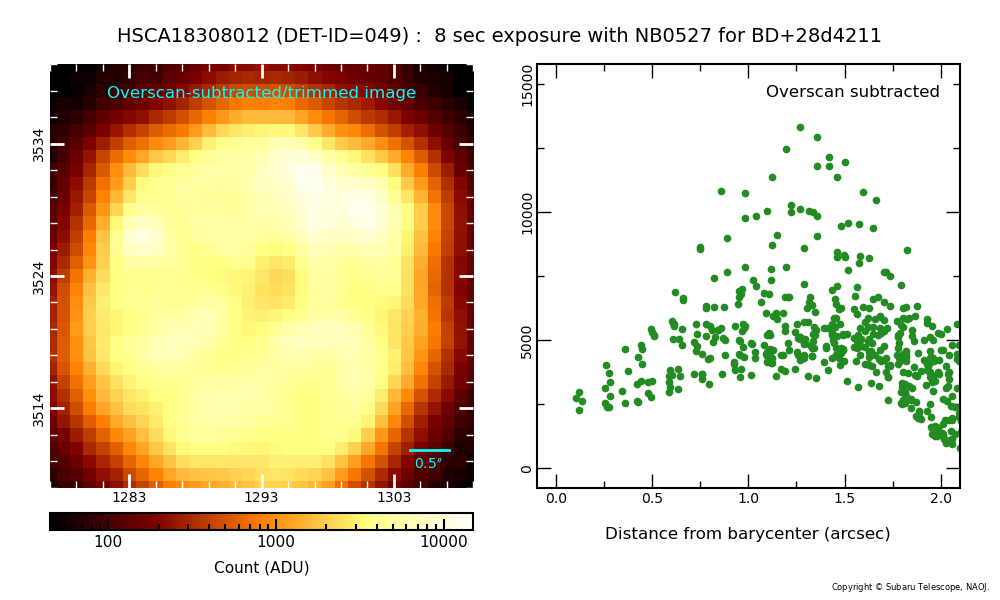

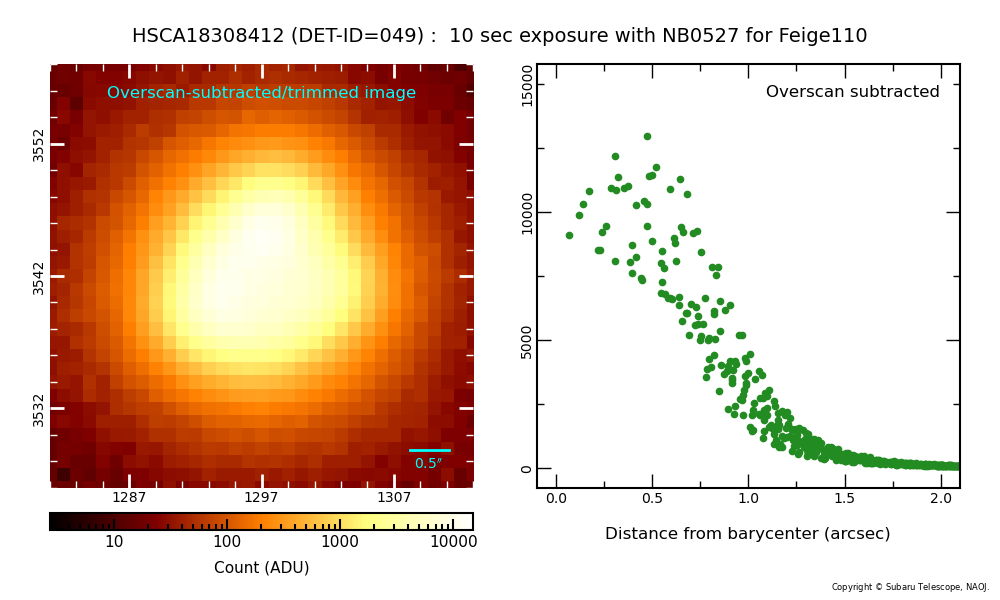

| Standard star in NB0527 | 18261612, 18308012 18308412, 18311012 |
2019 May run (2019/04/29 – 2019/05/09 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 17552000 – 17553957 | |
| Dark | 17714800 – 17715757 | |
| Domeflat in HSC-g | 17613600 – 17615557 | A shadow appears on the images. |
| Domeflat in HSC-i2 | 17557600 – 17559557 | A shadow appears on the images. |
| Domeflat in HSC-z | 17550000 – 17551957 | A shadow appears on the images. |
| Domeflat in HSC-Y | 17871800 – 17873757 | A shadow appears on the images. |
| Domeflat in NB0921 | 17718400 – 17720357 | A shadow appears on the images. |
2019 Apr run (2019/03/28 – 2019/04/11 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 17170000 – 17171957 | |
| Dark | 17172000 – 17172957 | |
| Domeflat in HSC-g | 17241600 – 17243557 | A shadow appears on the images. |
| Domeflat in HSC-r2 | 17281600 – 17283557 | A shadow appears on the images. |
| Domeflat in HSC-i2 | 17168000 – 17169957 | A shadow appears on the images. |
| Domeflat in HSC-z | 17544800 – 17546757 | A shadow appears on the images. |
| Domeflat in HSC-Y | 17088200 – 17090157 | A shadow appears on the images. |
| Domeflat in NB0816 | 17125600 – 17127557 | A shadow appears on the images. |

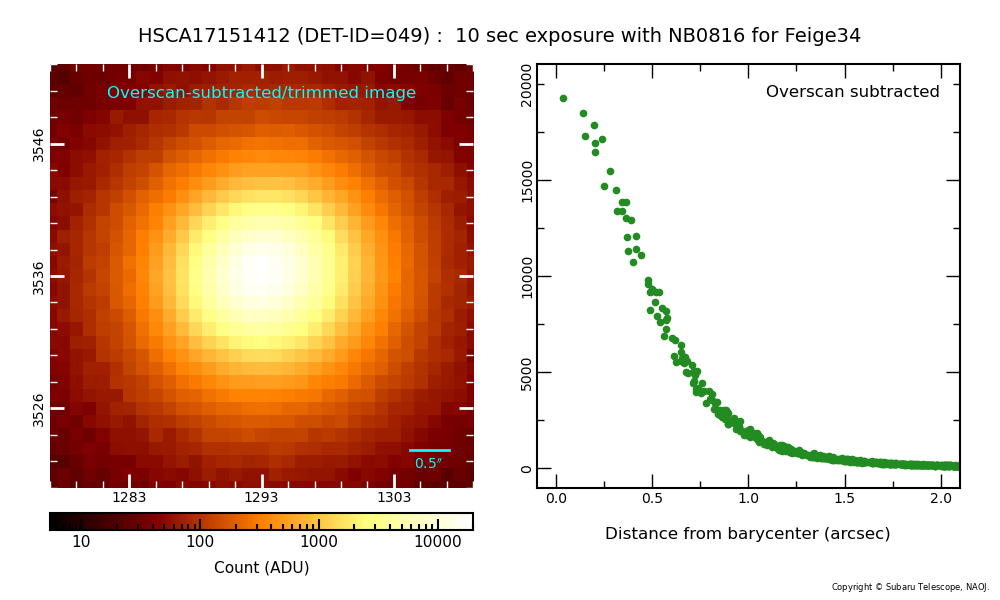

| Standard star in NB0816 | 17151412, 17453212 |
2019 Mar run (2019/02/26 – 2019/03/14 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 16695000 – 16696957 | |

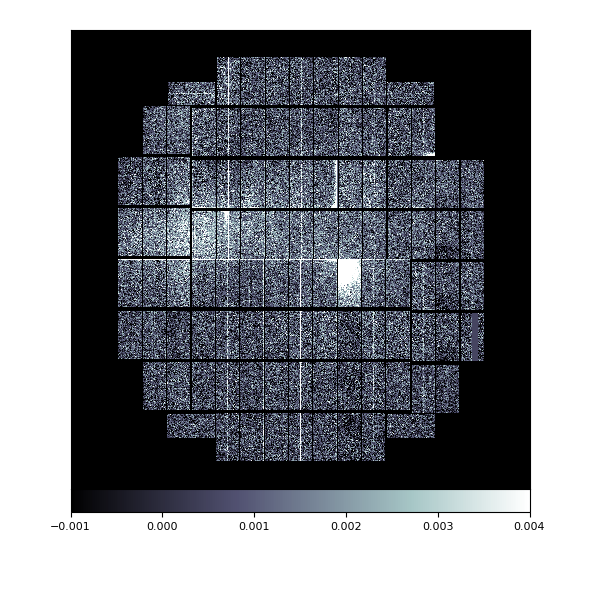

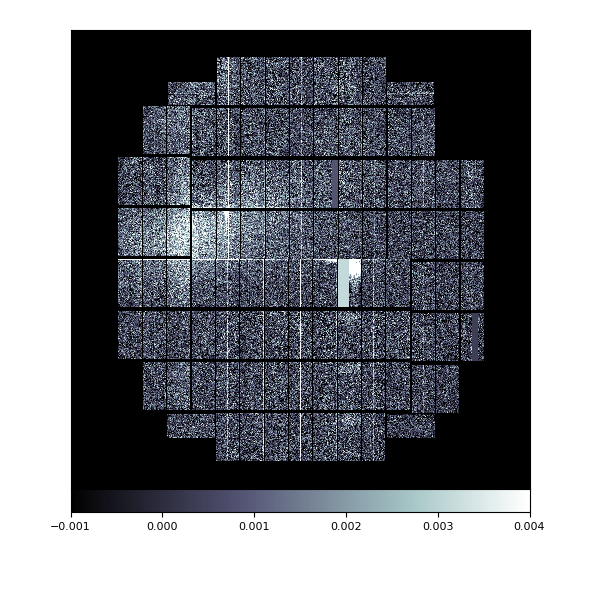

| Dark | 16734200 – 16735157 | Stray light (~0.003 ADU/sec) spreads over multiple CCDs centered on #081. (report) |
| Domeflat in HSC-g | 16664400 – 16666357 | A shadow appears on the images. |
| Domeflat in HSC-r2 | 16533000 – 16534957 | A shadow appears on the images. |
| Domeflat in HSC-i2 | 16737800 – 16739757 | A shadow appears on the images. |
| Domeflat in HSC-z | 16690400 – 16692357 | A shadow appears on the images. |
| Domeflat in HSC-Y | 17001200 – 17003157 | A shadow appears on the images. |
| Domeflat in NB0387 | 16795800 – 16797757 | A shadow appears on the images. |

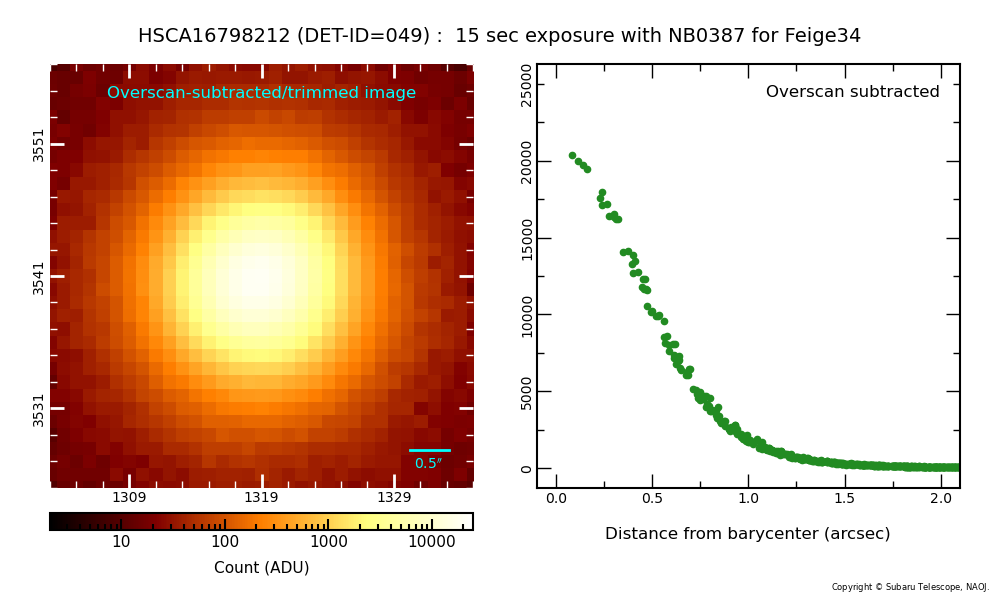

| Standard star in NB0387 | 16798212 |
2019 Feb run (2019/01/29 – 2019/02/13 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 16310600 – 16312557 | Affected by stray light (report) |
| Dark | 16317200 – 16318157 | |
| Domeflat in HSC-g | 16315200 – 16317157 | |
| Domeflat in HSC-r2 | 16463800 – 16465757 | |
| Domeflat in HSC-Y | 16308600 – 16310557 | |
| Domeflat in NB0816 | 16365200 – 16367157 |
2019 Jan run (2018/12/27 – 2019/01/10 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 15882800 – 15884757 | |
| Dark | 15886400 – 15887357 | Stray light (~0.003 ADU/sec) spreads over multiple CCDs centered on #081. (report) |
| Domeflat in HSC-g | 16128800 – 16130757 | |
| Domeflat in HSC-r2 | 15887400 – 15889357 | |
| Domeflat in HSC-i2 | 15908600 – 15910557 | |
| Domeflat in HSC-z | 15880800 – 15882757 | |
| Domeflat in NB1010 | 16054800 – 16056757 |
2018 Dec run (2018/11/25 – 2018/12/13 HST)
| Data | Frame IDs |
|---|---|
| Bias | 15795800 – 15797757 |
| Dark | 15797800 – 15798757 |
| Domeflat in HSC-g | 15793400 – 15795357 |
| Domeflat in HSC-r2 | 15249600 – 15251557 |
| Domeflat in HSC-i2 | 15273800 – 15275757 |
| Domeflat in HSC-z | 15298800 – 15300757 |
| Domeflat in NB0921 | 15224000 – 15225957 |
| Domeflat in IB0945 | 15269000 – 15270957 |
2018 Nov run (2018/11/01 – 2018/11/18 HST)
| Data | Frame IDs |
|---|---|
| Bias | 14847600 – 14849557 |
| Dark | 14849600 – 14850557 |
| Domeflat in HSC-g | 14845400 – 14847357 |
| Domeflat in HSC-r2 | 14892600 – 14894557 |
| Domeflat in HSC-i2 | 14890400 – 14892357 |
| Domeflat in HSC-z | 15018600 – 15020557 |
| Domeflat in HSC-Y | 15143000 – 15144957 |
| Domeflat in NB0921 | 14833000 – 14834957 |
2018 Apr run (2018/04/09 – 2018/04/23 HST)
| Data | Frame IDs |
|---|---|
| Bias | 14542600 – 14544557 |
| Dark | 14540600 – 14542557 |
| Domeflat in HSC-g | 14608400 – 14608557, 14609200 – 14610957 |
| Domeflat in HSC-r2 | 14640000 – 14641957 |
| Domeflat in HSC-i2 | 14589800 – 14591757 |
| Domeflat in HSC-z | 14533400 – 14535357 |
| Domeflat in NB0816 | 14538600 – 14540557 |
2018 Mar run (2018/03/08 – 2018/03/22 HST)
| Data | Frame IDs |
|---|---|
| Bias | 14302400 – 14303357, 14304400 – 14305357 |
| Dark | 14303400 – 14304357 |
| Domeflat in HSC-r2 | 14410600 – 14412557 |
| Domeflat in HSC-i2 | 14290400 – 14292357 |
| Domeflat in HSC-z | 14343200 – 14345157 |
| Domeflat in NB0527 | 14399400 – 14401357 |

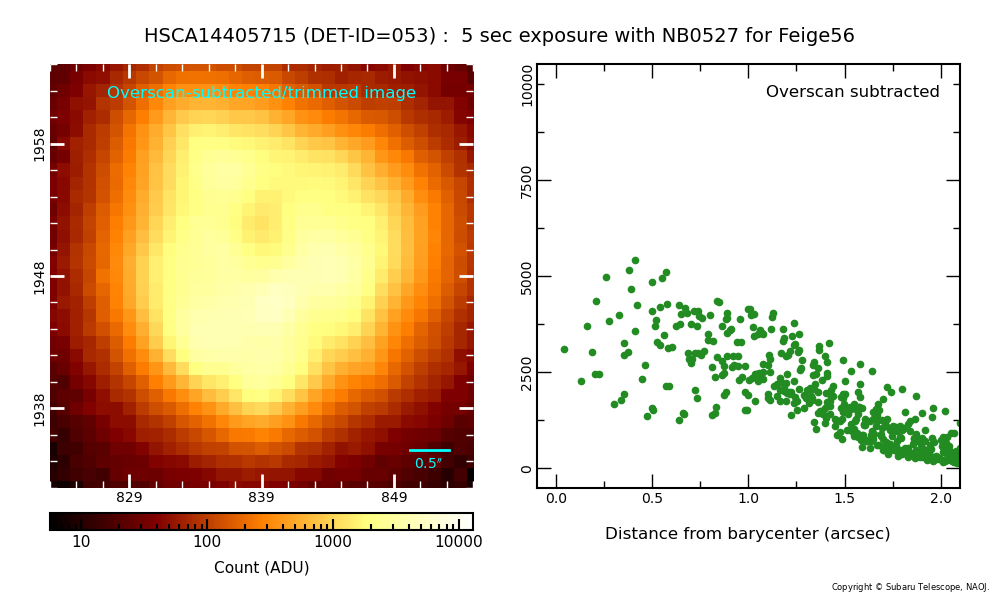

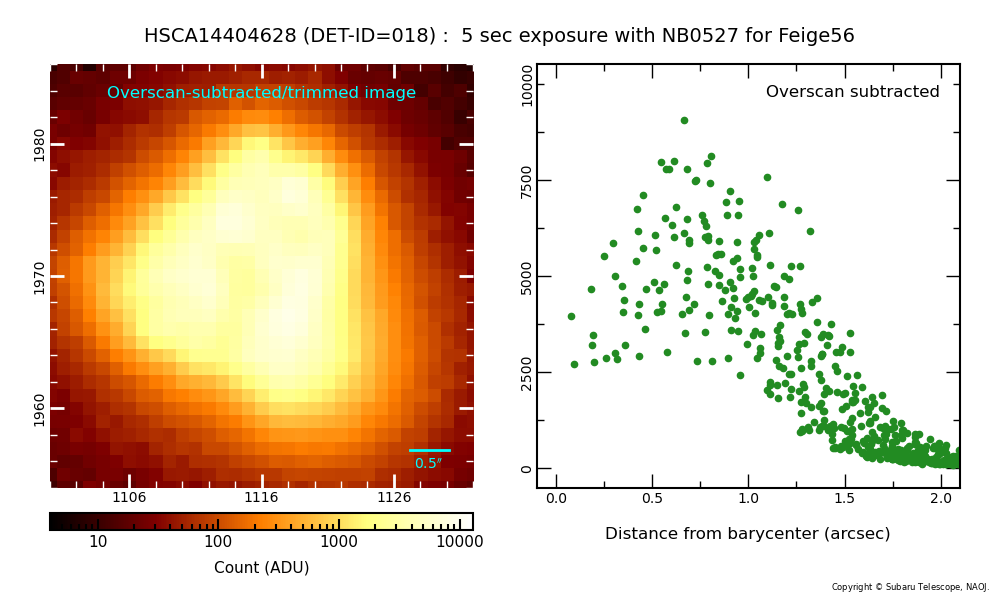

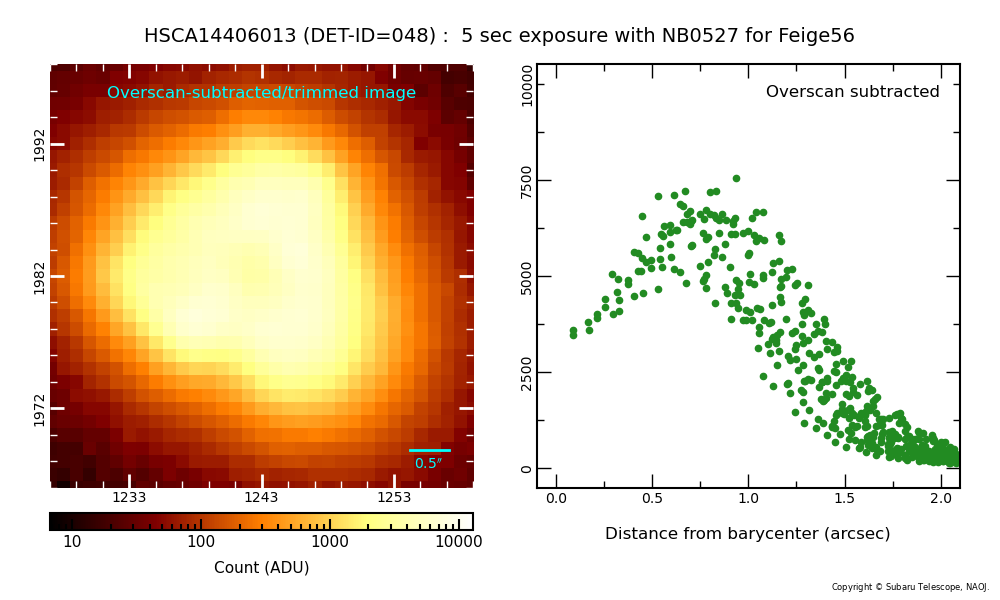

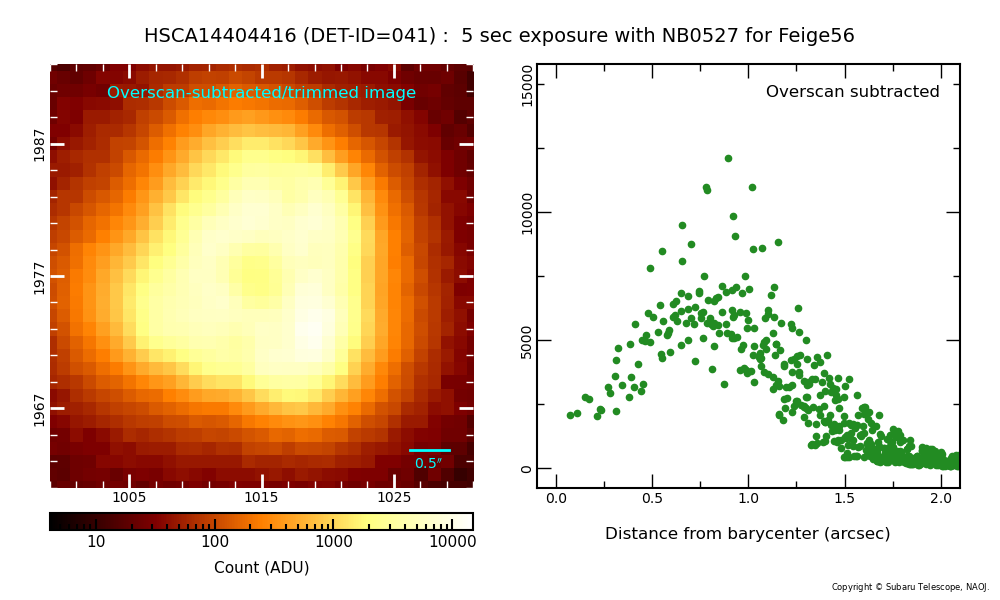

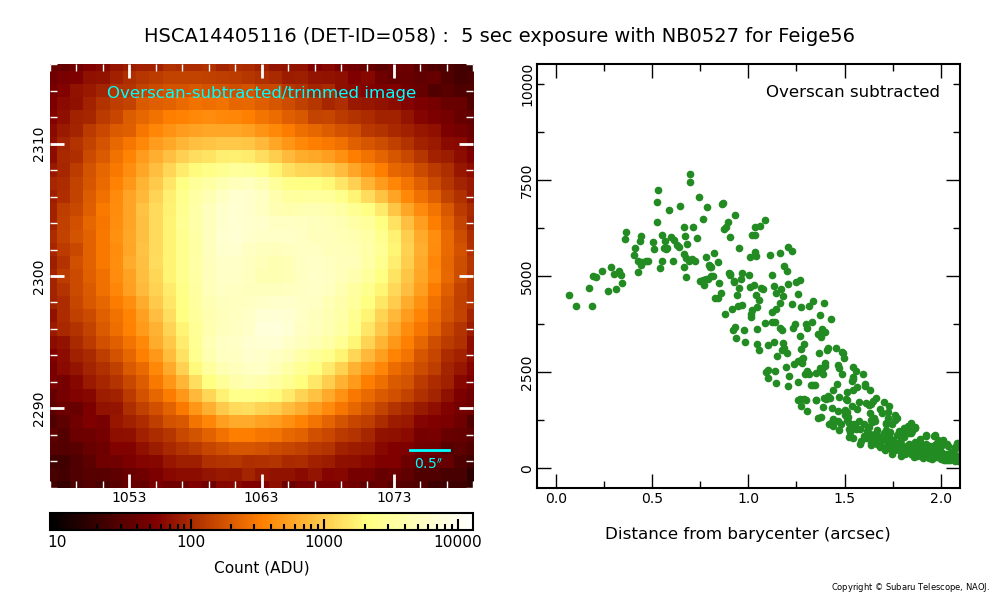

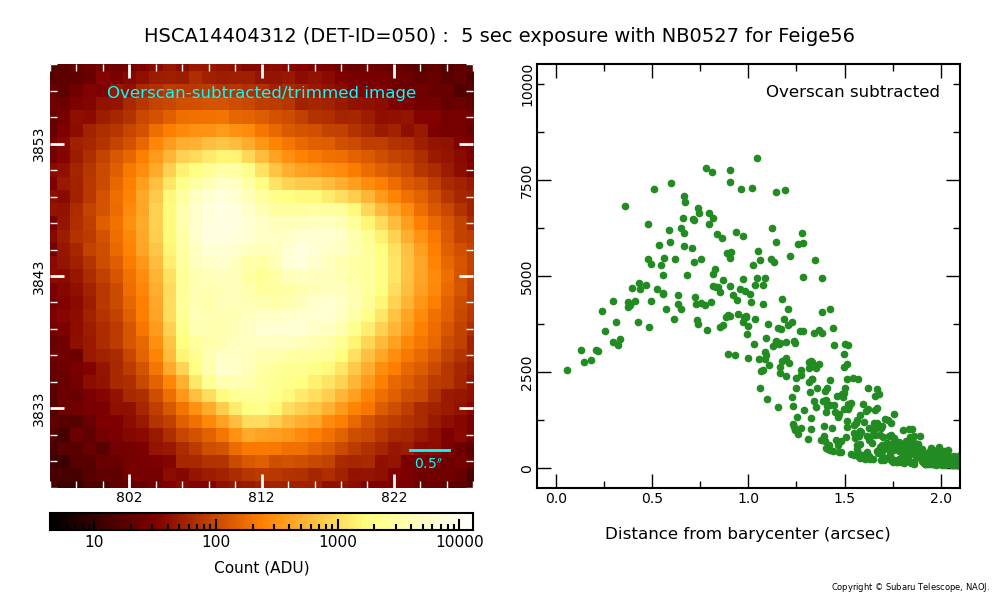

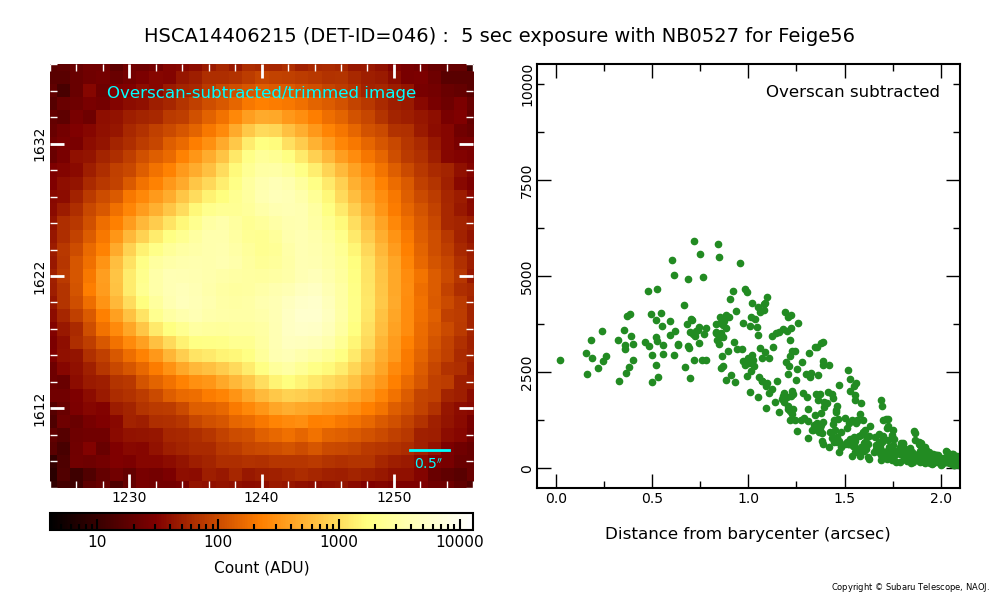

| Standard star in NB0527 | 14404312, 14404416, 14404628, 14404954 14405116, 14405328, 14405454, 14405715 14405913, 14406013, 14406215 |
2018 Feb run (2018/02/07 – 2018/02/22 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 14189400 – 14191357 | |
| Dark | 14099000 – 14099957 | Stray light (~0.003 ADU/sec) spreads over multiple CCDs centered on #081. (report) |
| Domeflat in HSC-g | 14187400 – 14189357 | |
| Domeflat in HSC-r2 | 13902000 – 13903957 | |
| Domeflat in HSC-i2 | 14283000 – 14284957 | |
| Domeflat in HSC-z | 14100200 – 14102157 | |
| Domeflat in HSC-Y | 13881400 – 13883357 | |
| Domeflat in NB1010 | 13982000 – 13983957 |
2018 Jan run (2018/01/08 – 2018/01/23 HST)
| Data | Frame IDs |
|---|---|
| Bias | 13660400 – 13662357 |
| Dark | 13874400 – 13875357 |
| Domeflat in HSC-g | 13586600 – 13588557 |
| Domeflat in HSC-r2 | 13738000 – 13739957 |
| Domeflat in HSC-i2 | 13686200 – 13688157 |
| Domeflat in HSC-z | 13721200 – 13723157 |
| Domeflat in HSC-Y | 13546000 – 13547957 |
| Domeflat in NB0387 | 13691000 – 13692957 |

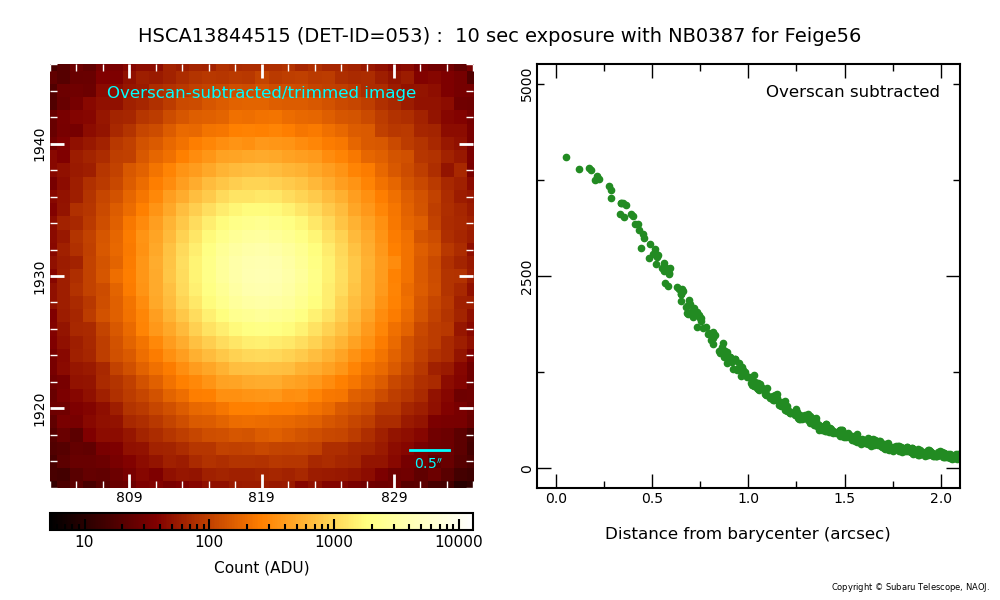

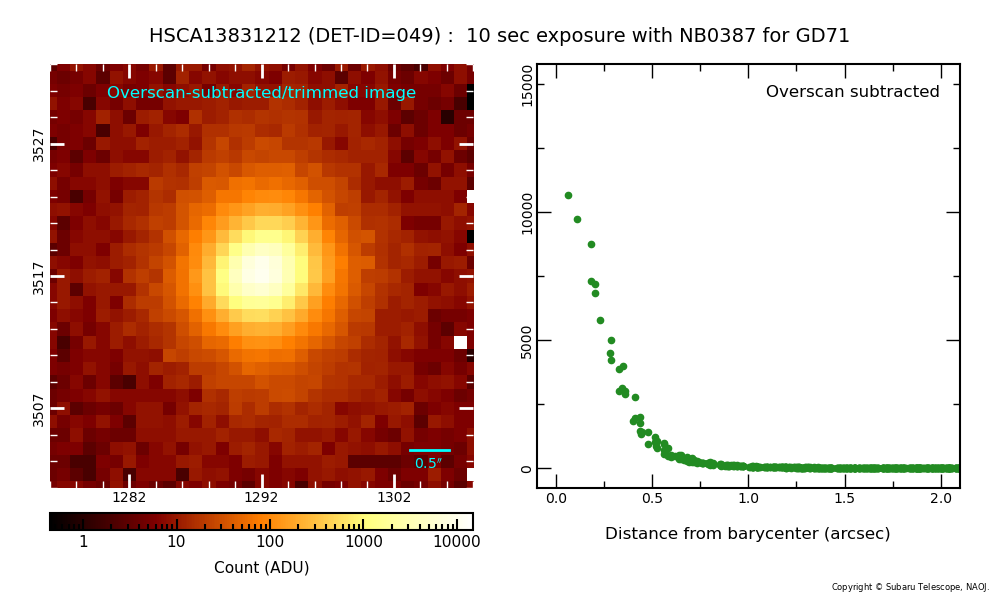

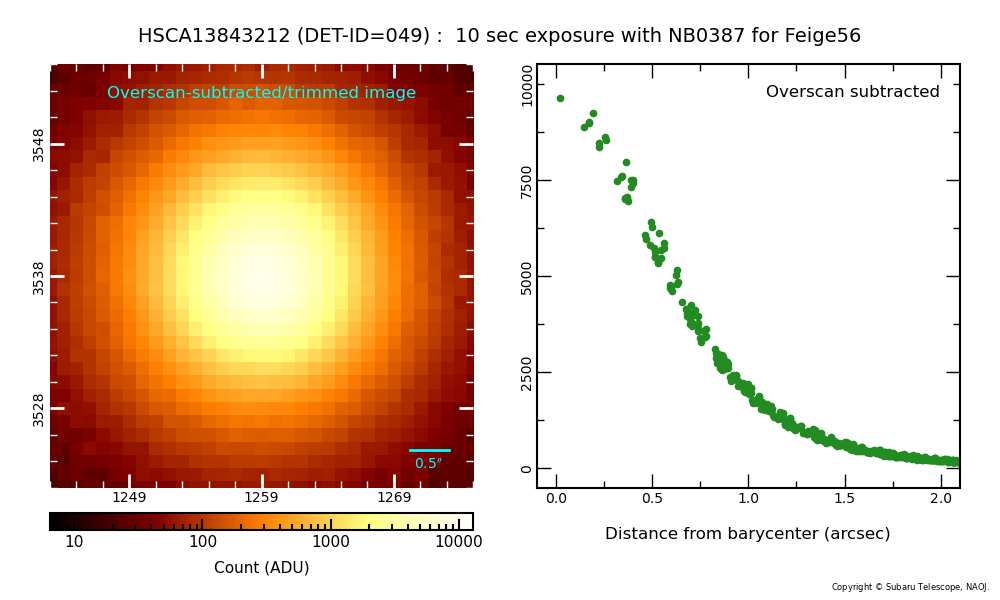

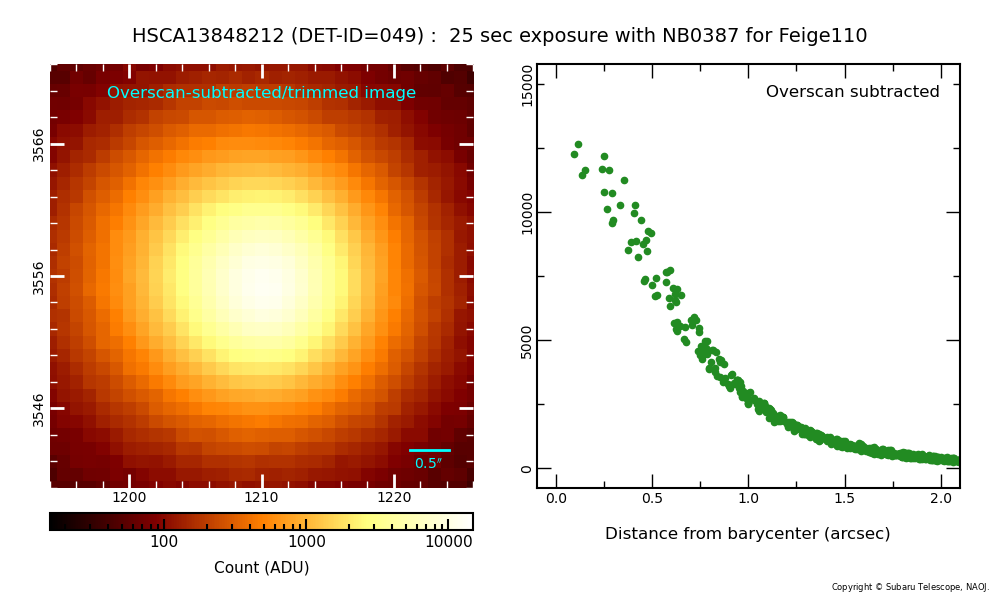

| Standard star in NB0387 | 13831212, 13843212 13843428, 13843754 13843916, 13844128 13844254, 13844515 13844713, 13844813 13845015, 13848212 |
2017 Dec run (2017/12/14 – 2017/12/26 HST)
| Data | Frame IDs |
|---|---|
| Bias | 13444600 – 13446557 |
| Dark | 13446600 – 13447557 |
| Domeflat in HSC-g | 13412200 – 13413957 |
| Domeflat in HSC-r2 | 13461800 – 13463757 |
| Domeflat in HSC-i2 | 13467200 – 13468957 |
| Domeflat in NB0527 | 13457000 – 13458957 |
2017 Sep run (2017/09/12 – 2017/09/26 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 13052400 – 13054357 | |

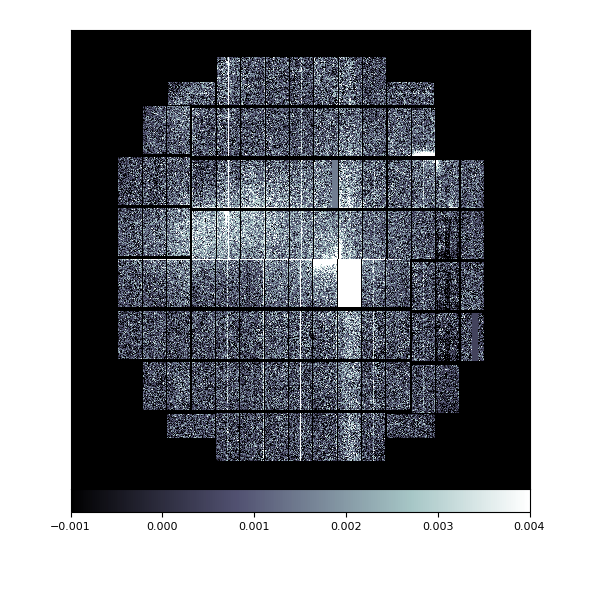

| Dark | 13076600 – 13077557 | Stray light (~0.003 ADU/sec) spreads over multiple CCDs centered on #081. (report) |
| Domeflat in HSC-g | 12909400 – 12911357 | |
| Domeflat in HSC-r2 | 12936000 – 12937957 | |
| Domeflat in HSC-i2 | 12962400 – 12964157 | |
| Domeflat in HSC-z | 13150000 – 13151957 | |
| Domeflat in HSC-Y | 12872600 – 12874557 | |
| Domeflat in NB0926 | 13074200 – 13076157 |
2017 Aug run (2017/08/15 – 2017/08/28 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 12714400 – 12716357 | |

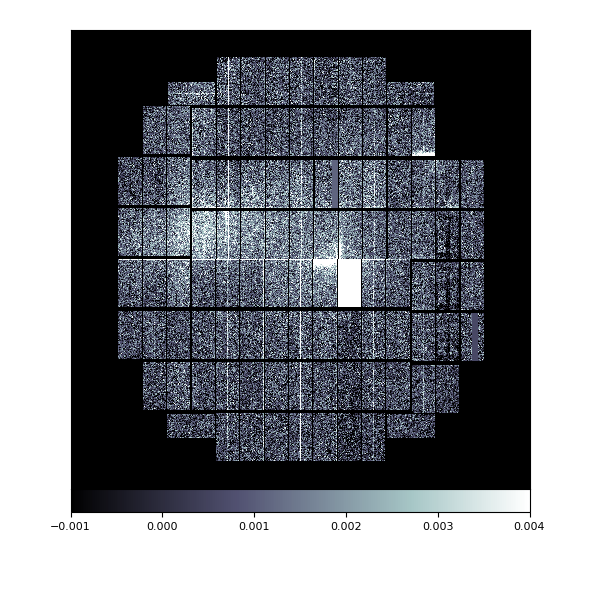

| Dark | 12716400 – 12717357 | Stray light (~0.003 ADU/sec) spreads over multiple CCDs centered on #081. (report) |
| Domeflat in HSC-g | 12717600 – 12719557 | |
| Domeflat in HSC-r2 | 12584400 – 12586357 | |
| Domeflat in HSC-i2 | 12719600 – 12721557 | |
| Domeflat in HSC-z | 12849200 – 12851157 | |
| Domeflat in HSC-Y | 12540000 – 12541957 | |
| Domeflat in NB0816 | 12691400 – 12693357 | |

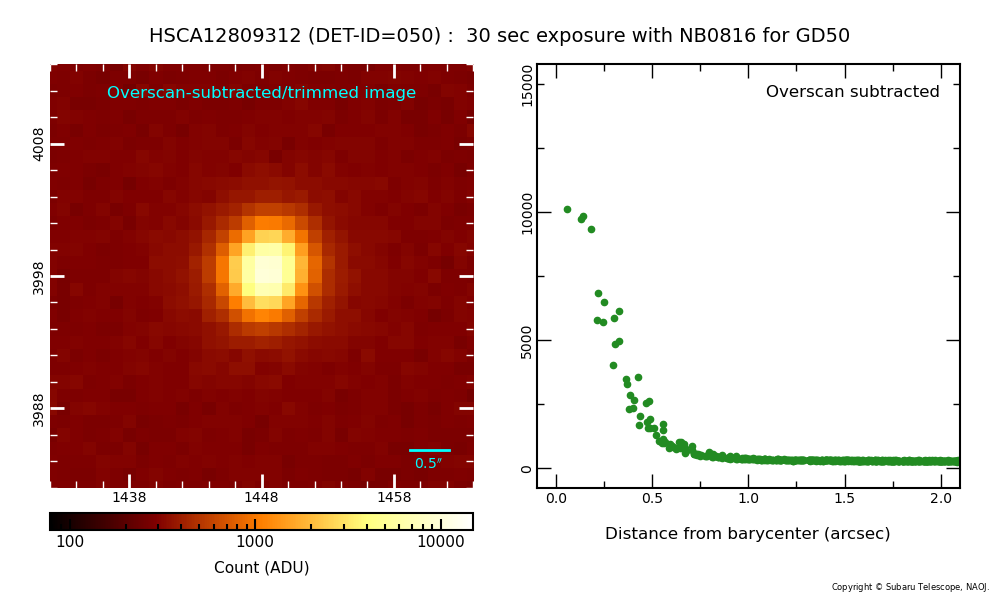

| Standard star in NB0816 | 12809312 |
2017 Jul run (2017/07/17 – 2017/07/31 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 12244400 – 12246357 | Affected by stray light (report) |
| Dark | 12246400 – 12247357 | Stray light (~0.003 ADU/sec) spreads over multiple CCDs centered on #081. (report) |
| Domeflat in HSC-r2 | 12140400 – 12142357 | |
| Domeflat in HSC-i2 | 12106600 – 12108557 | |
| Domeflat in HSC-z | 12075600 – 12077557 | |
| Domeflat in HSC-Y | 12242400 – 12244357 | |
| Domeflat in NB0387 | 12325200 – 12327157 |
2017 Jun run (2017/06/19 – 2017/06/29 HST)
| Data | Frame IDs |
|---|---|
| Bias | 11891400 – 11893357 |
| Dark | 11890400 – 11891357 |
| Domeflat in HSC-g | 11828600 – 11830557 |
| Domeflat in HSC-i2 | 11747400 – 11749357 |
| Domeflat in HSC-z | 11894800 – 11896757 |
| Domeflat in NB0816 | 11669800 – 11671757 |
| Domeflat in NB0921 | 11710200 – 11712157 |

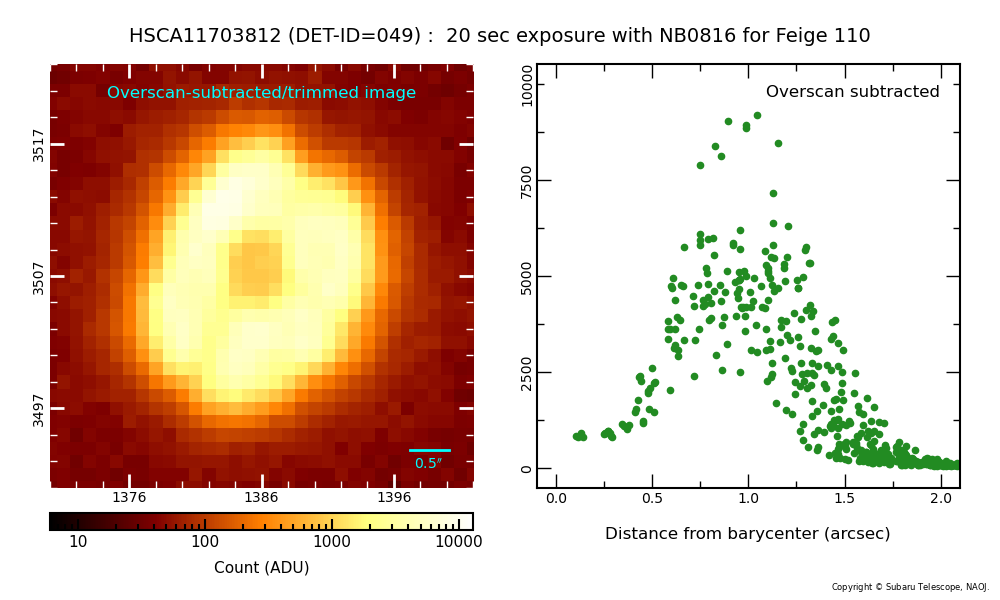

| Standard star in NB0816 | 11703612, 11703812 |
| Standard star in NB0921 | 11741412, 11741612 |
2017 Apr run (2017/04/19 – 2017/05/02 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 11081600 – 11083557 | Affected by stray light (report) |
| Dark | 11163800 – 11164757 | |
| Domeflat in HSC-g | 11129800 – 11131757 | |
| Domeflat in HSC-r2 | 11085400 – 11087357 | |
| Domeflat in HSC-i2 | 11106600 – 11108557 | |
| Domeflat in HSC-z | 11447600 – 11449557 | |
| Domeflat in HSC-Y | 11036200 – 11038157 | |
| Domeflat in NB0921 | 11342400 – 11344357 |
2017 Mar run (2017/03/20 – 2017/04/03 HST)
| Data | Frame IDs |
|---|---|
| Bias | 10644000 – 10644957, 10646000 – 10646957 |
| Dark | 10645000 – 10645957 |
| Domeflat in HSC-g | 10600000 – 10602157 |
| Domeflat in HSC-r2 | 10648600 – 10650557 |
| Domeflat in HSC-i2 | 10630400 – 10632357 |
| Domeflat in HSC-Y | 10563600 – 10565557 |
| Domeflat in NB0718 | 10642000 – 10643957 |

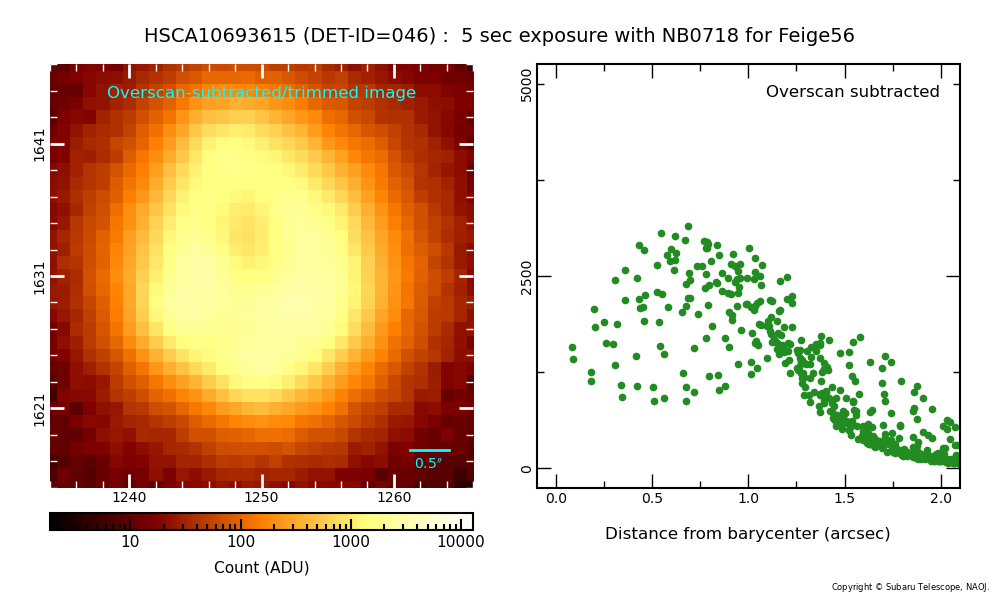

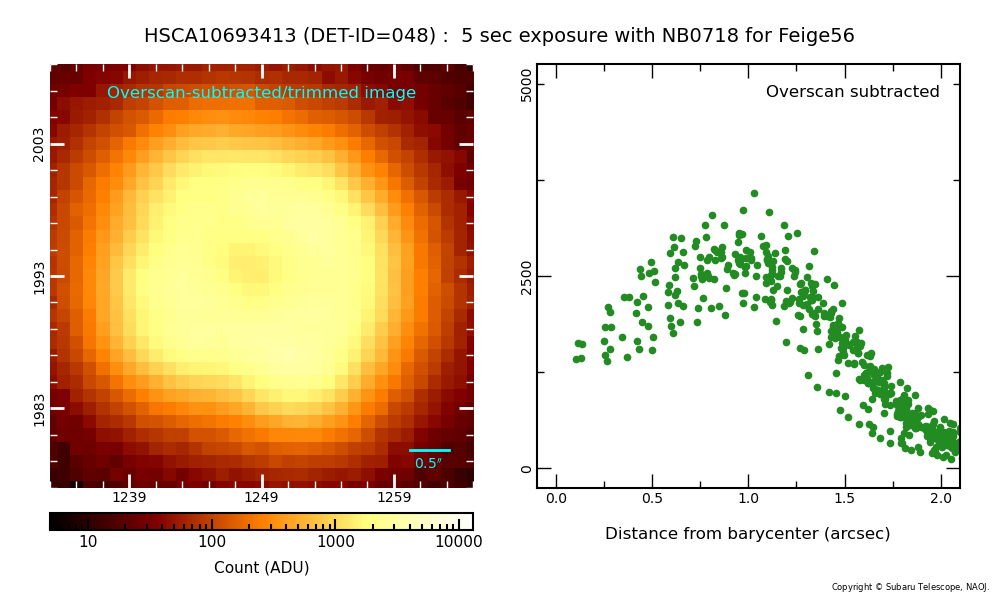

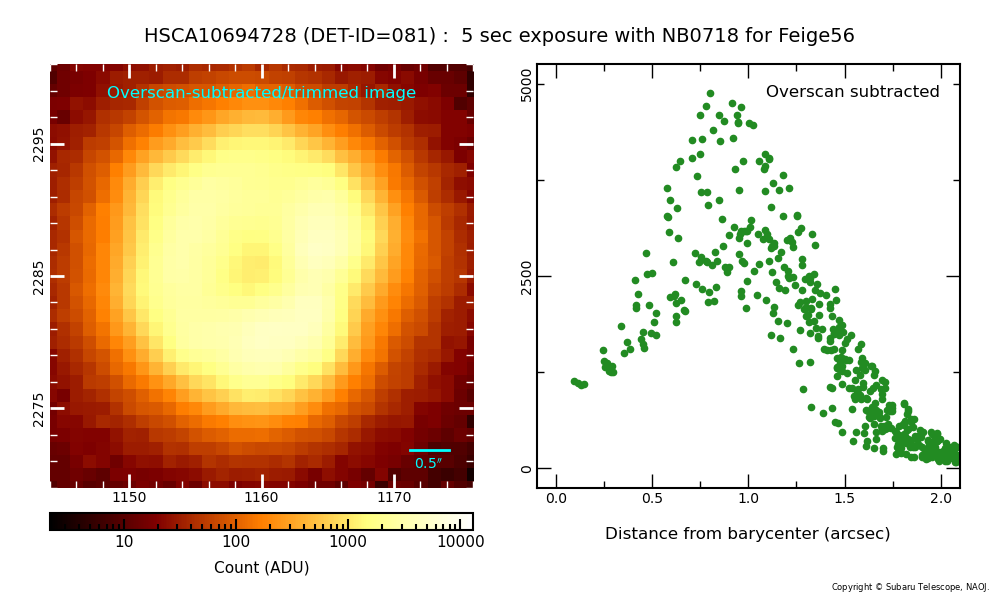

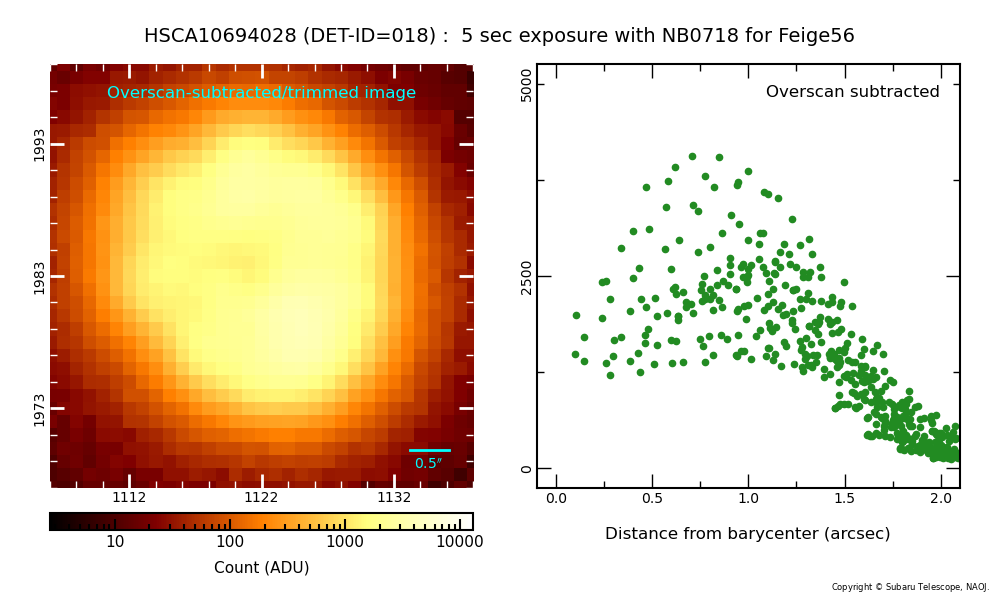

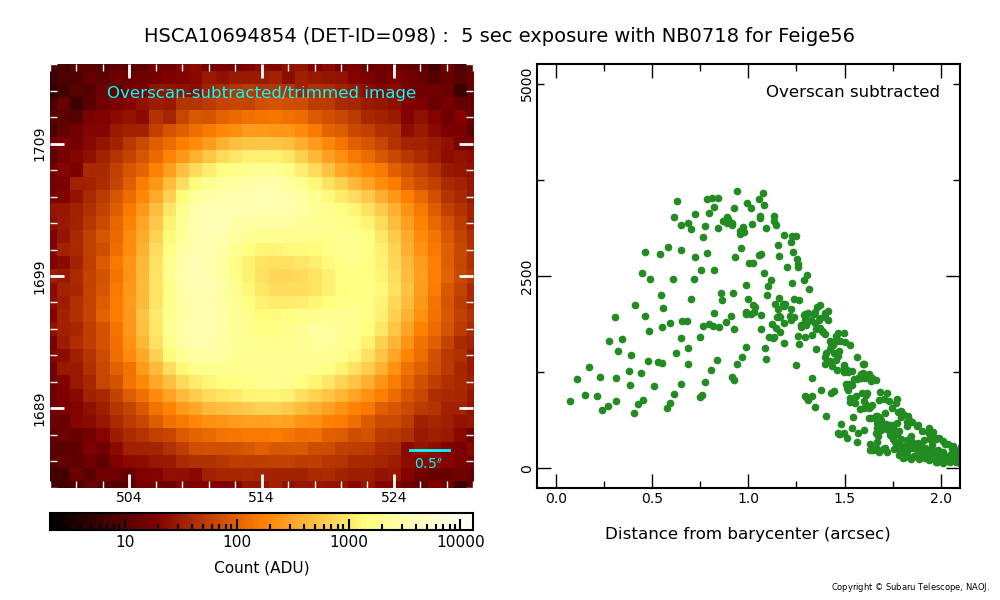

| Standard star in NB0718 | 10693115, 10693313, 10693413, 10693615 10693954, 10694028, 10694216, 10694516 10694728, 10694854, 10695115, 10695313 10695413, 10695615, 10695954, 10696028 10696216, 10696516, 10696728, 10696854 |
2017 Feb run (2017/02/20 – 2017/03/06 HST)
| Data | Frame IDs |
|---|---|
| Bias | 10266200 – 10268157 |
| Dark | 10382000 – 10382957 |
| Domeflat in HSC-g | 10383000 – 10384957 |
| Domeflat in HSC-r2 | 10270000 – 10271957 |
| Domeflat in HSC-i2 | 10360400 – 10362357 |
| Domeflat in HSC-z | 10231800 – 10233757 |
| Domeflat in HSC-Y | 10385000 – 10386957 |
| Domeflat in NB0718 | 10389800 – 10391757 |
2017 Jan run (2017/01/20 – 2017/02/02 HST)
| Data | Frame IDs |
|---|---|
| Bias | 09712000 – 09712957, 09716800 – 09717757 |
| Dark | 09713000 – 09713957 |
| Domeflat in HSC-g | 09710000 – 09711957 |
| Domeflat in HSC-r2 | 09668800 – 09670757 |
| Domeflat in HSC-i2 | 09714000 – 09715957 |
| Domeflat in HSC-z | 09597000 – 09598957 |
| Domeflat in HSC-Y | 10060000 – 10061957 |
| Domeflat in NB0973 | 09807000 – 09808957 |

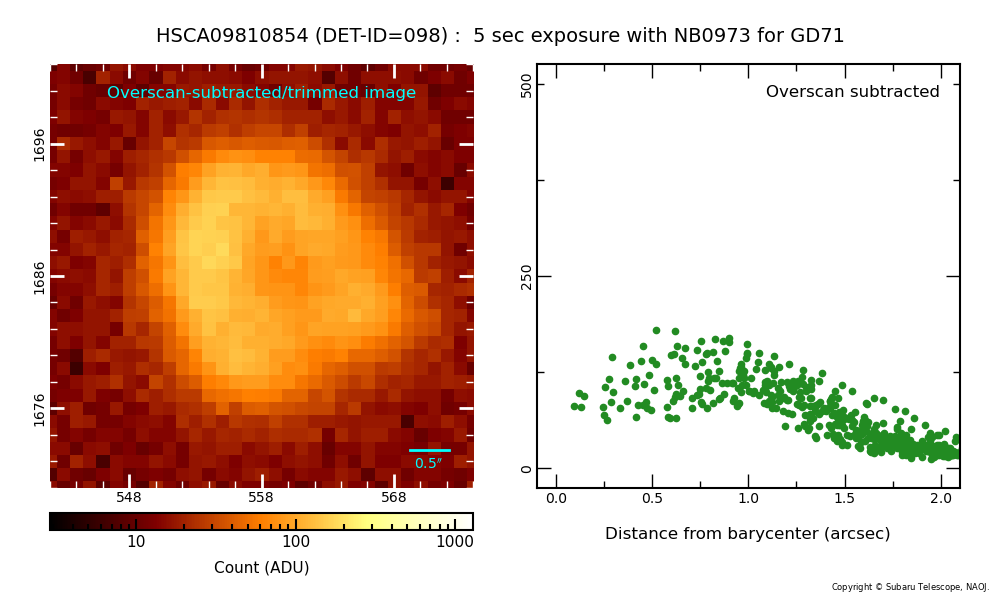

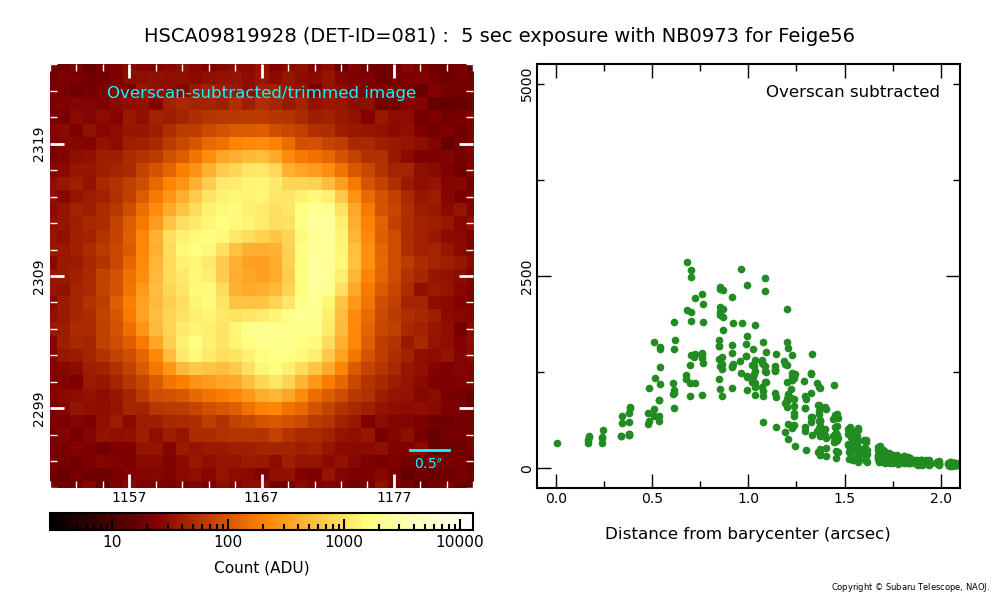

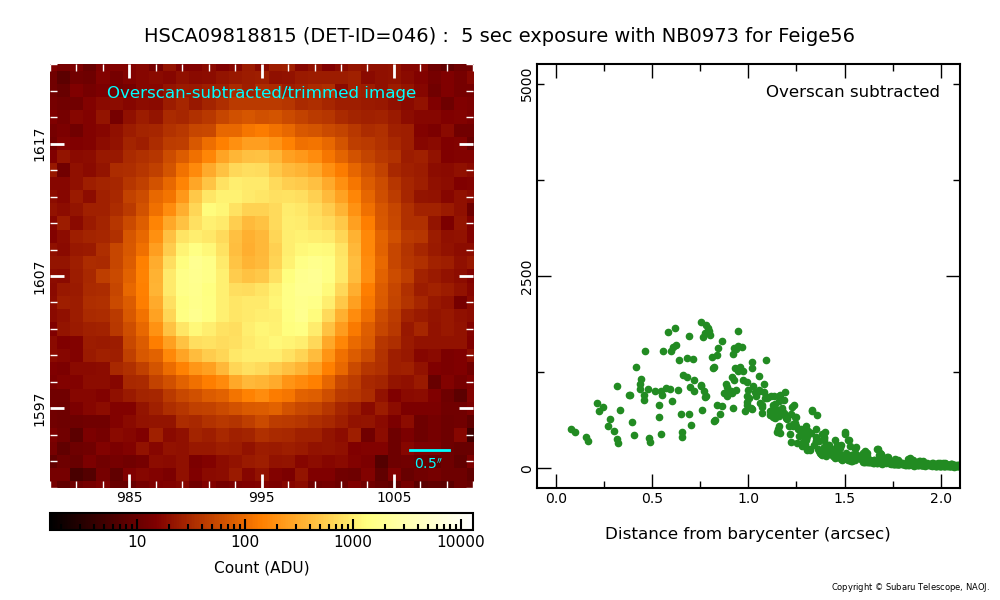

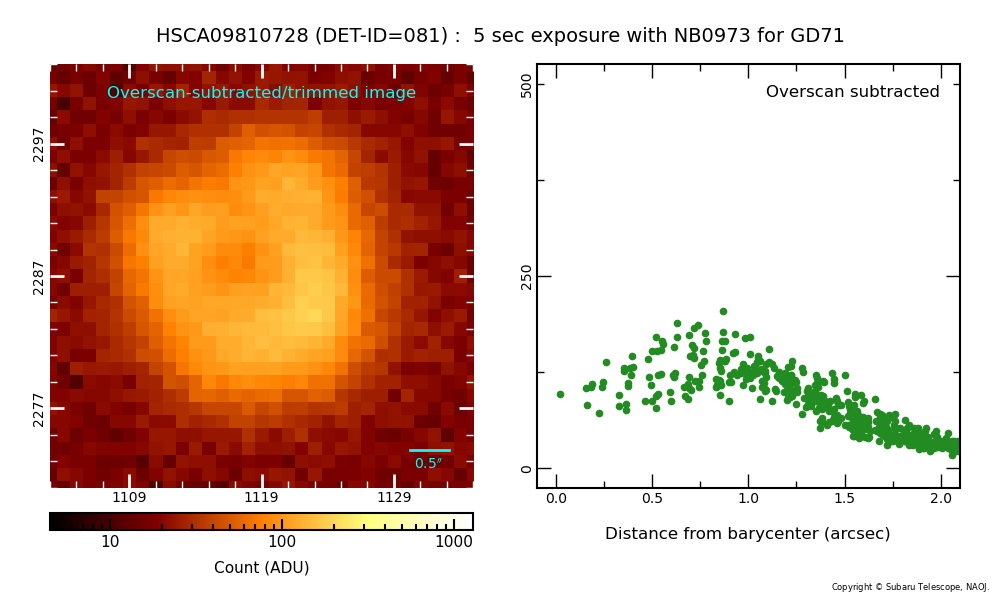

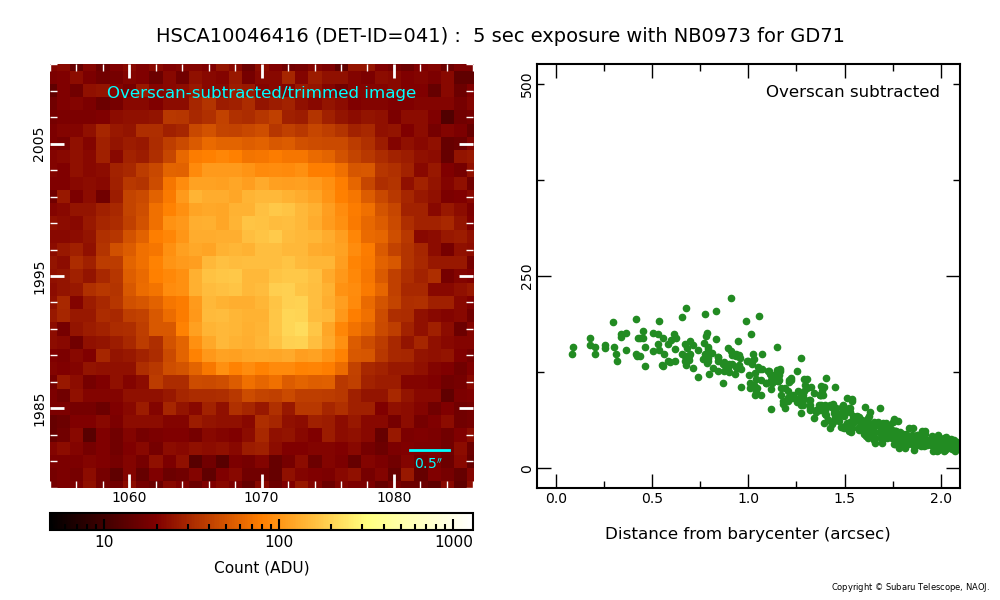

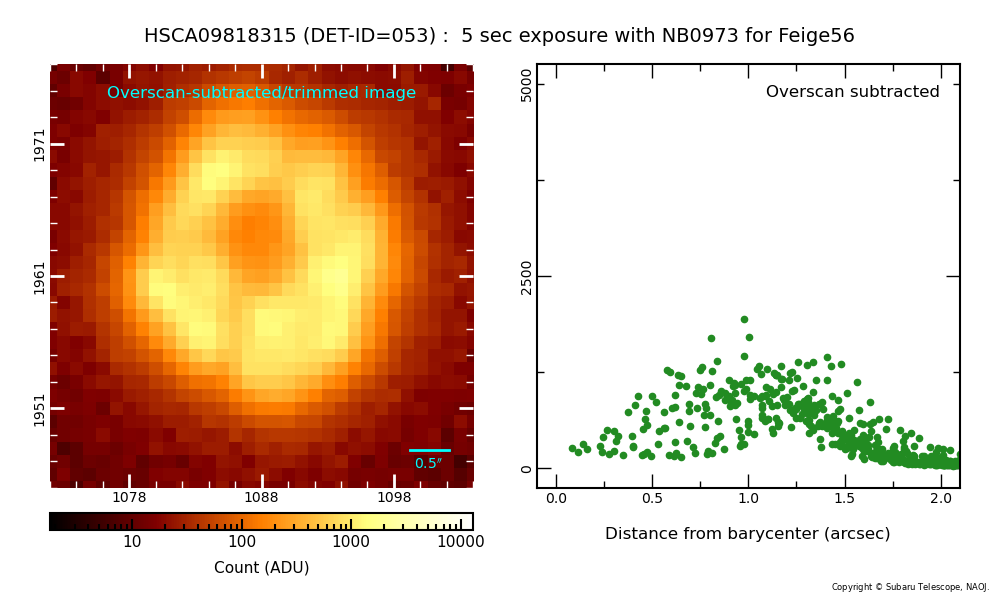

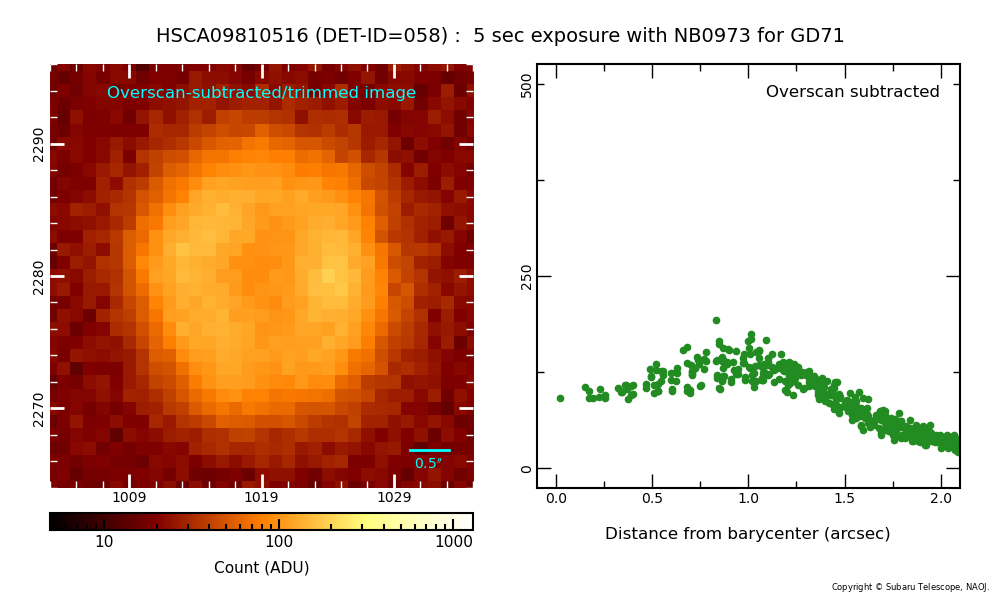

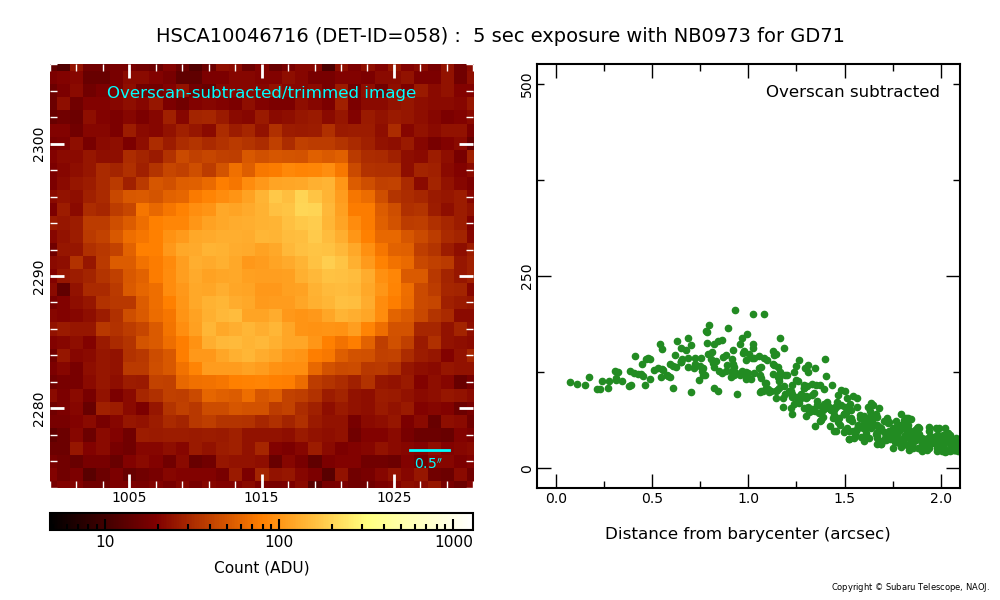

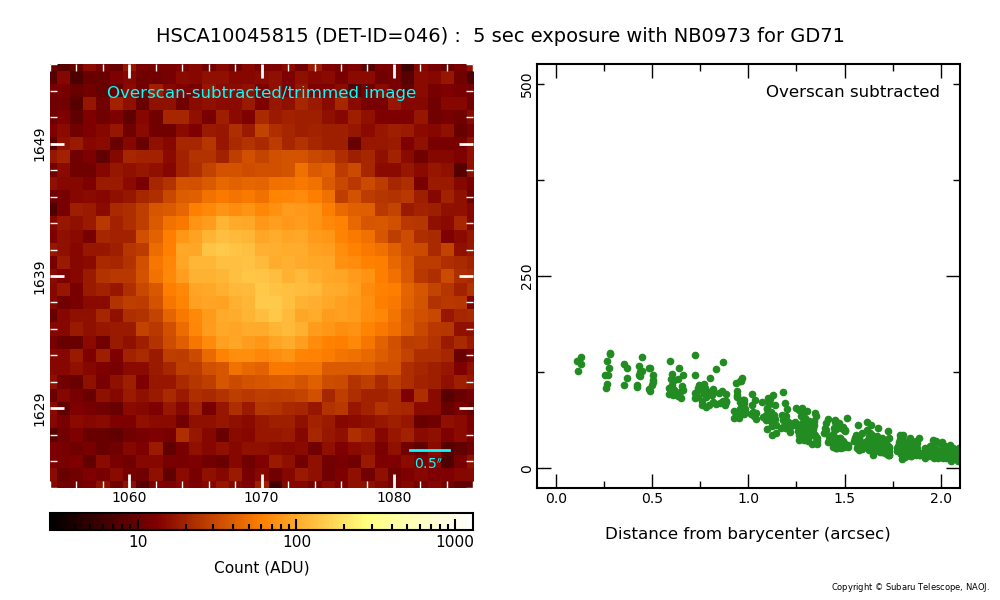

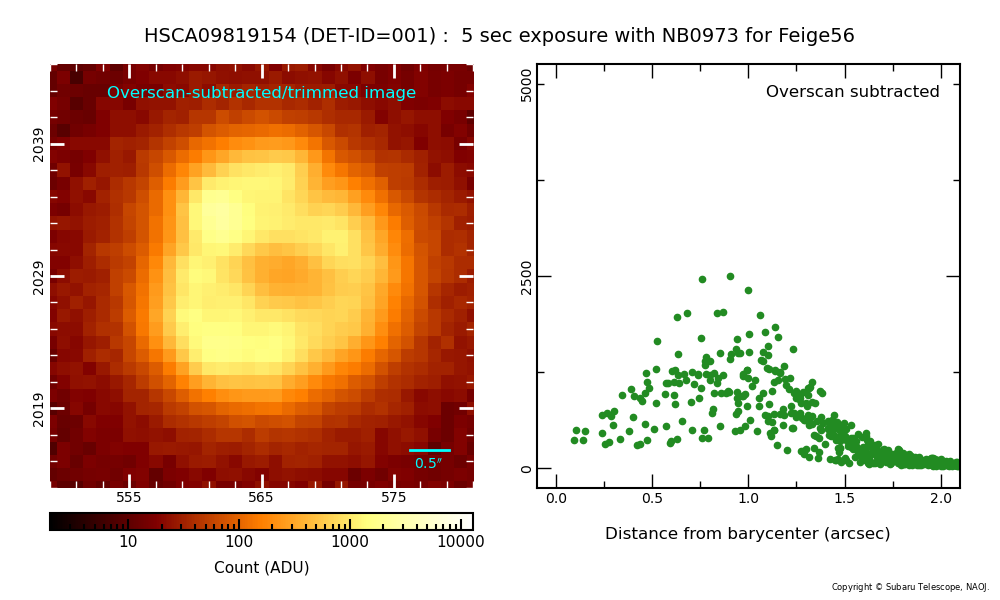

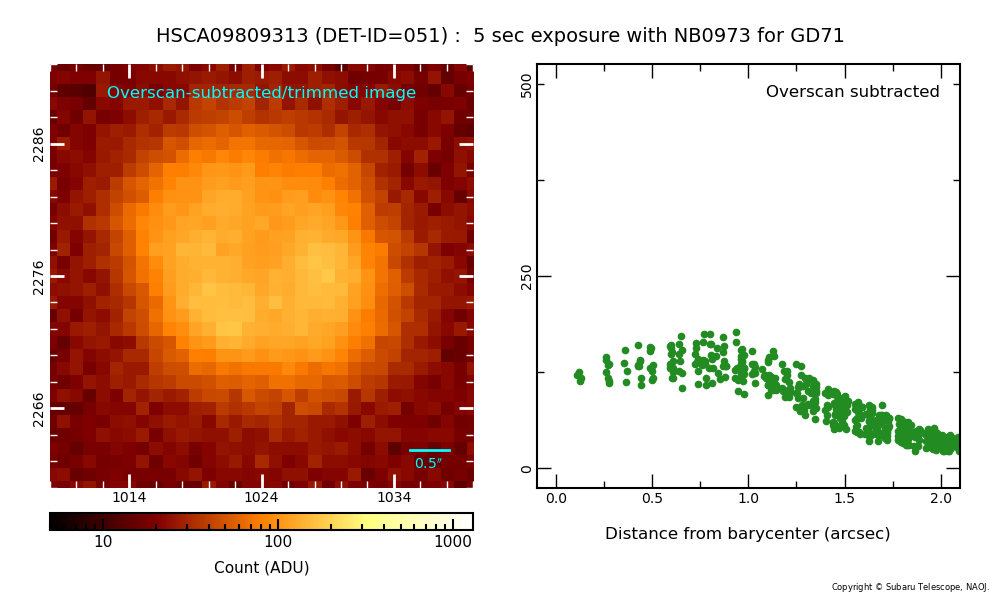

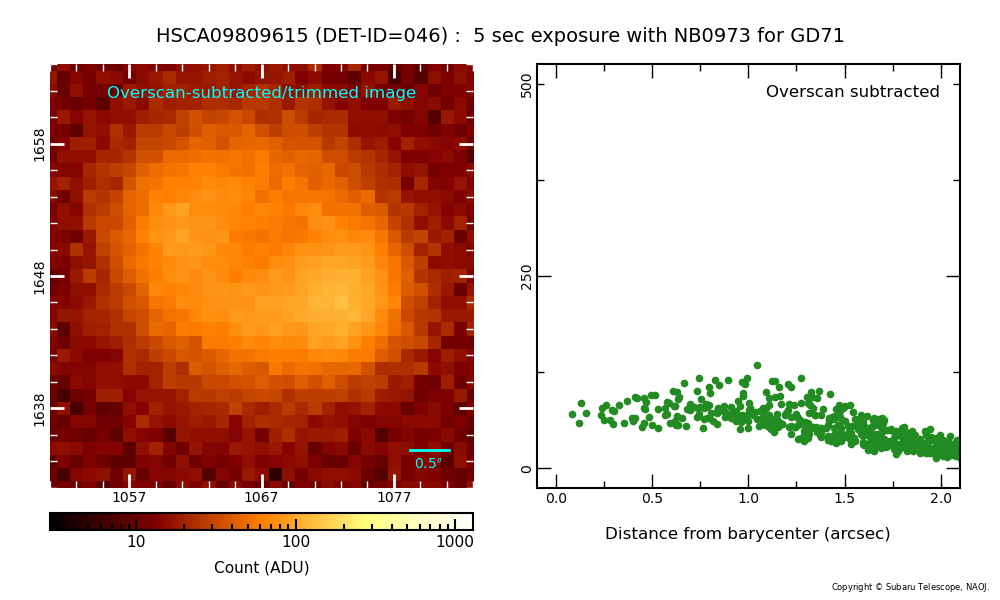

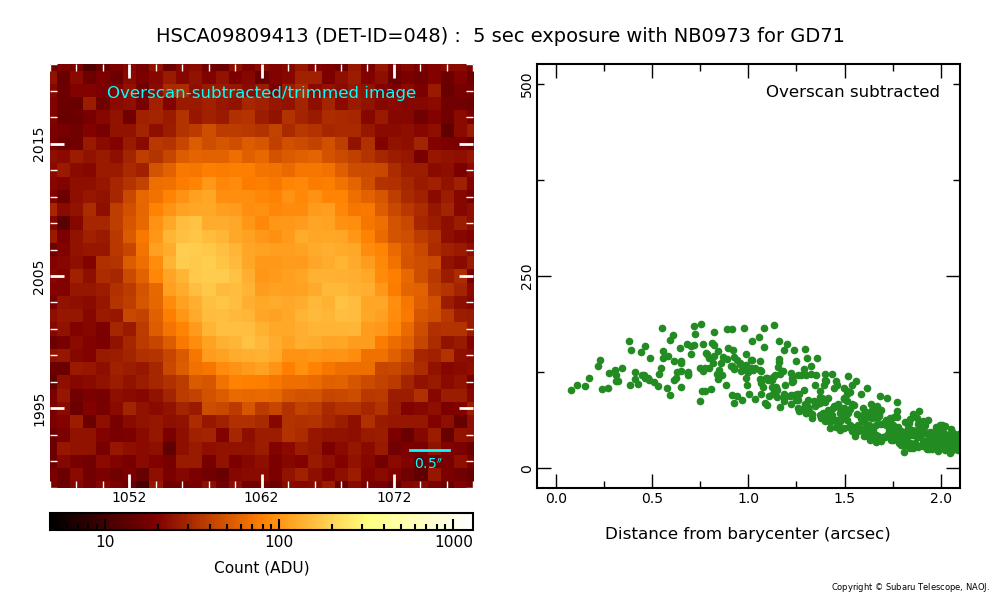

| Standard star in NB0973 | 09809115, 09809313, 09809413, 09809615 09809954, 09810028, 09810216, 09810516 09810728, 09810854, 09818315, 09818513 09818613, 09818815, 09819154, 09819228 09819416, 09819716, 09819928, 09820054 10045115, 10045315, 10045513, 10045613 10045815, 10046154, 10046228, 10046416 10046716, 10046928, 10047054, 10055515 10055713, 10055813, 10056015, 10056354 10056428, 10056616, 10056916, 10057128 10057254 |
2016 Dec run (2016/12/22 – 2017/01/03 HST)
| Data | Frame IDs |
|---|---|
| Bias | 09261000 – 09262957 |
| Dark | 09465600 – 09466557 |
| Domeflat in HSC-g | 09294000 – 09295957 |
| Domeflat in HSC-r2 | 09303000 – 09304957 |
| Domeflat in HSC-i2 | 09345400 – 09347557 |
| Domeflat in HSC-z | 09490800 – 09492757 |
| Domeflat in HSC-Y | 09385200 – 09387157 |
| Domeflat in NB0921 | 09523800 – 09525757 |
| Standard star in NB0921 | 9526012 |
2016 Nov run (2016/11/21 – 2016/12/05 HST)
| Data | Frame IDs |
|---|---|
| Bias | 09161600 – 09163557 |
| Dark | 09222800 – 09223757 |
| Domeflat in HSC-g | 09127200 – 09129157 |
| Domeflat in HSC-r2 | 09082600 – 09084357 |
| Domeflat in HSC-i2 | 08949000 – 08950957 |
| Domeflat in HSC-Y | 08985200 – 08987157 |
2016 Oct run (2016/09/26 – 2016/10/06 HST)
| Data | Frame IDs |
|---|---|
| Bias | 08679200 – 08681157 |
| Dark | 08681200 – 08682157 |
| Domeflat in HSC-g | 08632600 – 08634557 |
| Domeflat in HSC-r2 | 08785000 – 08786957 |
| Domeflat in HSC-i2 | 08862800 – 08864757 |
| Domeflat in HSC-Y | 08860800 – 08862557 |
| Domeflat in NB0387 | 08677000 – 08679157 |
2016 Sep run (2016/08/24 – 2016/09/06 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 08382000 – 08383957 | |

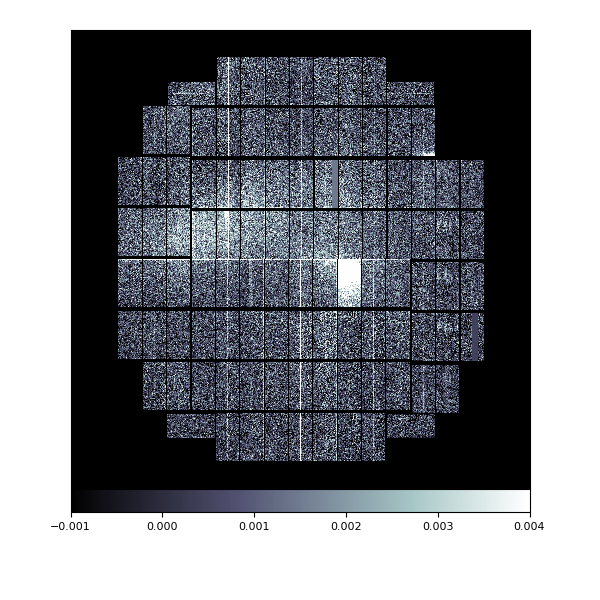

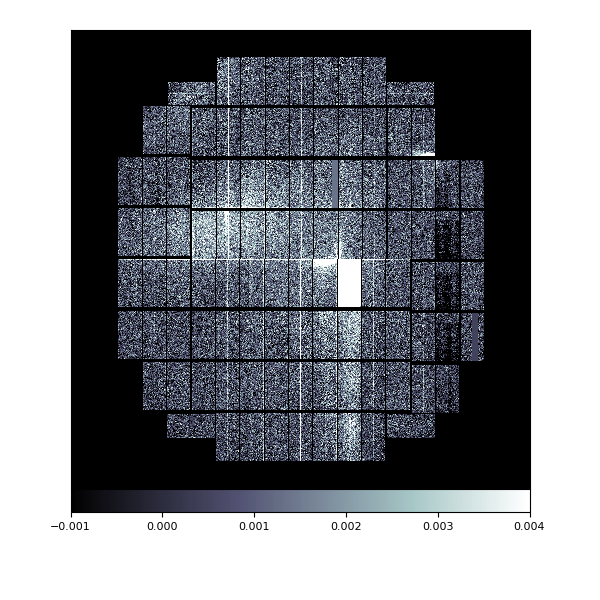

| Dark | 08384000 – 08384957 | Stray light (~0.003 ADU/sec) spreads over multiple CCDs centered on #081. (report) |
| Domeflat in HSC-g | 08456400 – 08459357 | |
| Domeflat in HSC-r2 | 08375000 – 08376957 | |
| Domeflat in HSC-i2 | 08432400 – 08434557 | |
| Domeflat in NB0387 | 08508400 – 08510357 | |
| Domeflat in NB0515 | 08510600 – 08512557 | |
| Domeflat in NB0816 | 08489000 – 08490957 |
2016 Aug run (2016/07/28 – 2016/08/08 HST)
| Data | Frame IDs |
|---|---|
| Bias | 08199400 – 08201357 |
| Dark | 08055400 – 08056357 |
| Domeflat in HSC-g | 08027000 – 08028957 |
| Domeflat in HSC-r2 | 08236400 – 08238357 |
| Domeflat in HSC-i2 | 08260000 – 08261957 |
| Domeflat in HSC-z | 07994600 – 07996557 |
| Domeflat in HSC-Y | 08059000 – 08060957 |
| Domeflat in NB0921 | 08120200 – 08122157 |

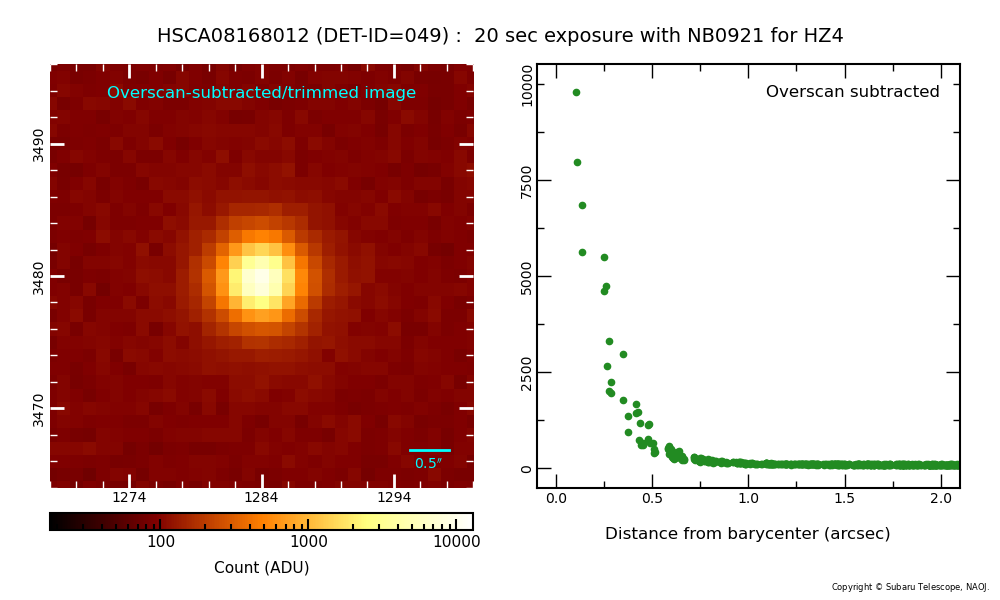

| Standard star in NB0921 | 08142812, 08143012 08167812, 08168012 |
2016 Jul run (2016/06/26 – 2016/07/11 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 07474800 – 07476757 | Affected by stray light (report) |
| Domeflat in HSC-g | 00371200 – 00373157 | Do not use the entire image of CCD 1_47 (9) for data analysis. |
| Domeflat in HSC-g | 07705600 – 07707557 | |
| Domeflat in HSC-r | 07502400 – 07504357 | |
| Domeflat in HSC-r2 | 07535000 – 07536957 | |
| Domeflat in HSC-i2 | 07478600 – 07480557 | |
| Domeflat in HSC-z | 07740600 – 07742557 | |
| Domeflat in HSC-Y | 07449000 – 07450957 |
2016 Jun run (2016/05/31 – 2016/06/13 HST)
| Data | Frame IDs |
|---|---|
| Bias | 07121600 – 07123557 |
| Dark | 07220600 – 07221157 |
| Domeflat in HSC-g | 06987000 – 06988957 |
| Domeflat in HSC-r | 07155400 – 07157357 |
| Domeflat in HSC-i2 | 07224000 – 07225957 |
| Domeflat in HSC-z | 06962400 – 06964357 |
| Domeflat in HSC-Y | 07400800 – 07402757 |
| Domeflat in NB0468 | 07044800 – 07046757 |
2016 Apr run (2016/03/31 – 2016/04/14 HST)
| Data | Frame IDs |
|---|---|
| Bias | 06853400 – 06855357 |
| Dark | 06894800 – 06895757 |
| Domeflat in HSC-g | 06657800 – 06659757 |
| Domeflat in HSC-r | 06443000 – 06444957 |
| Domeflat in HSC-i2 | 06575600 – 06577557 |
| Domeflat in HSC-Y | 06926800 – 06928757 |
| Domeflat in NB0515 | 06709800 – 06711757 |
| Domeflat in NB0921 | 06774600 – 06776557 |

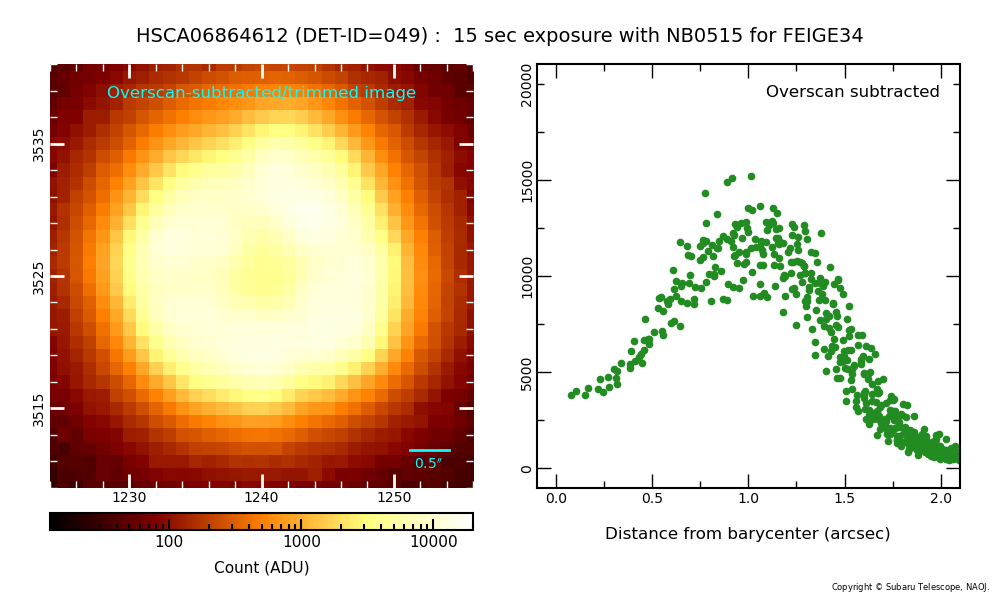

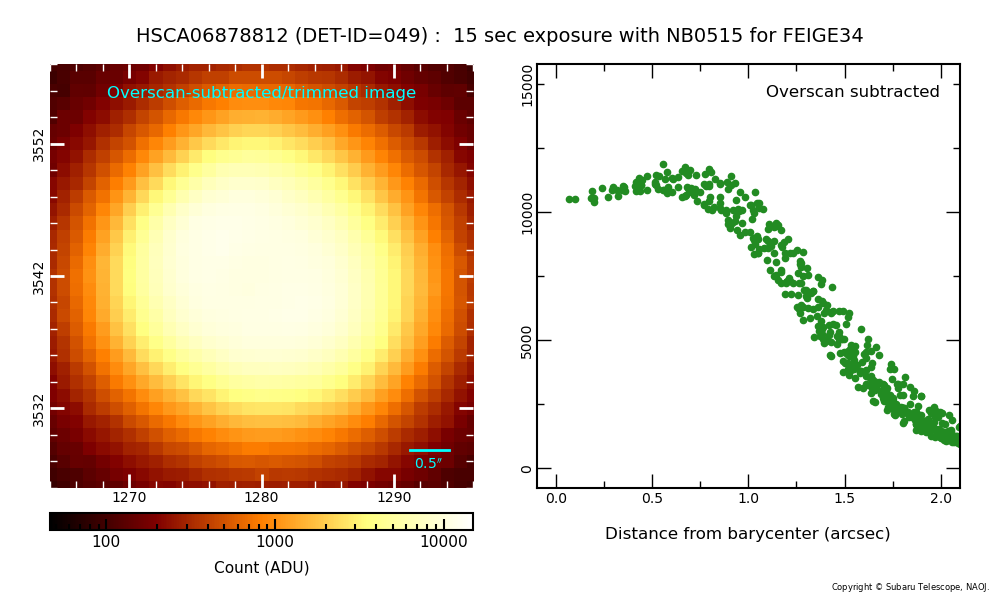

| Standard star in NB0515 | 06712212, 06712412 06740212, 06864612 06878812 |
2016 Mar run (2016/03/03 – 2016/03/16 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 05976000 – 05977957 | |
| Dark | 06335200 – 06336157 | Stray light (~0.003 ADU/sec) spreads over multiple CCDs centered on #081. (report) |
| Domeflat in HSC-g | 05905400 – 05907357 | |
| Domeflat in HSC-r | 05979800 – 05981757 | |
| Domeflat in HSC-i2 | 05808000 – 05809957 | |
| Domeflat in HSC-z | 06113400 – 06115357 | |
| Domeflat in HSC-Y | 06263000 – 06264957 |
2016 Feb run (2016/02/02 – 2016/02/11 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 05512200 – 05514157 | |
| Dark | 05511200 – 05512157 | Stray light (~0.003 ADU/sec) spreads over multiple CCDs centered on #081. (report) |
| Domeflat in HSC-g | 05730000 – 05731957 | |
| Domeflat in HSC-r | 05415800 – 05417757 | |
| Domeflat in HSC-i | 05604400 – 05606357 | |
| Domeflat in HSC-Y | 05378200 – 05379957 | |
| Domeflat in NB0816 | 05669400 – 05671357 |
2016 Jan run (2016/01/04 – 2016/01/14 HST)
| Data | Frame IDs |
|---|---|
| Bias | 05339600 – 05341557 |
| Dark | 05303000 – 05303957 |
| Domeflat in HSC-g | 05072000 – 05073957 |
| Domeflat in HSC-r | 04890600 – 04892557 |
| Domeflat in HSC-i | 05138800 – 05140757 |
| Domeflat in HSC-z | 05006400 – 05008357 |
| Domeflat in HSC-Y | 05098000 – 05099957 |
| Domeflat in NB0921 | 05174000 – 05175957 |
2015 Nov run (2015/11/05 – 2015/11/18 HST)
| Data | Frame IDs |
|---|---|
| Bias | 04542400 – 04544357 |
| Dark | 04544400 – 04545357 |
| Domeflat in HSC-g | 04610400 – 04612357 |
| Domeflat in HSC-r | 04653200 – 04655157 |
| Domeflat in HSC-i | 04540400 – 04542357 |
| Domeflat in HSC-i2 | 04613800 – 04615757 |
| Domeflat in HSC-z | 04800200 – 04802157 |
| Domeflat in NB0921 | 04508800 – 04510757 |
2015 Oct run (2015/10/05 – 2015/10/20 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 03912800 – 03914757 | Affected by stray light (report) |
| Domeflat in HSC-g | 03940200 – 03942157 | |
| Domeflat in HSC-r | 04073000 – 04074957 | |
| Domeflat in HSC-i | 03969200 – 03971157 | |
| Domeflat in HSC-z | 04426200 – 04428157 | |
| Domeflat in HSC-Y | 03910800 – 03912757 | |
| Domeflat in NB0515 | 04120800 – 04122957 |
2015 Aug run (2015/08/06 – 2015/08/19 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 03693800 – 03695757 | Affected by stray light (report) |
| Domeflat in HSC-g | 03765800 – 03767757 | |
| Domeflat in HSC-r | 03811000 – 03812957 | |
| Domeflat in HSC-i | 03714800 – 03716757 | |
| Domeflat in HSC-z | 03814800 – 03816757 | |
| Domeflat in HSC-Y | 03690800 – 03692757 | |
| Domeflat in NB0816 | 03735000 – 03736957 |
2015 Jul run (2015/07/09 – 2015/07/22 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 03338400 – 03340357 | |
| Dark | 03340400 – 03341357 | |
| Domeflat in HSC-g | 03371200 – 03373157 | |
| Domeflat in HSC-r | 03400800 – 03402757 | |
| Domeflat in HSC-i | 03313800 – 03315757 | |
| Domeflat in HSC-z | 03505800 – 03507757 | |
| Domeflat in HSC-Y | 03657800 – 03659757 | |
| Domeflat in NB0921 | 03410600 – 03412557 |
2015 May run (2015/05/11 – 2015/05/27 HST)
| Data | Frame IDs |
|---|---|
| Bias | 02864800 – 02866757 |
| Dark | 02868200 – 02869157 |
| Domeflat in HSC-g | 02862800 – 02864757 |
| Domeflat in HSC-r | 02886000 – 02887957 |
| Domeflat in HSC-i | 02790000 – 02791957 |
| Domeflat in HSC-z | 02833200 – 02835157 |
| Domeflat in HSC-Y | 02888000 – 02889957 |
| Domeflat in NB0515 | 02881000 – 02882957 |

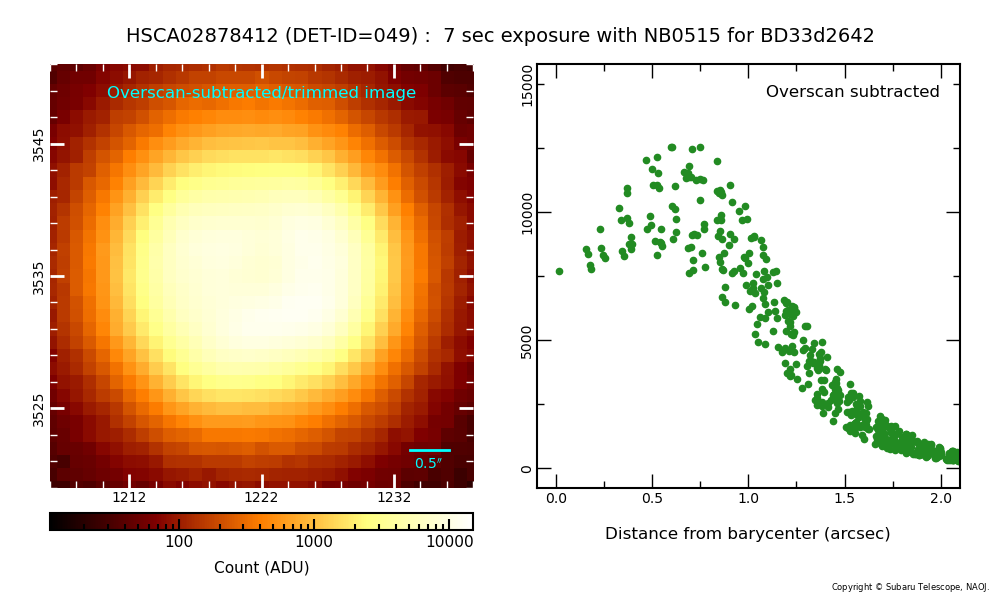

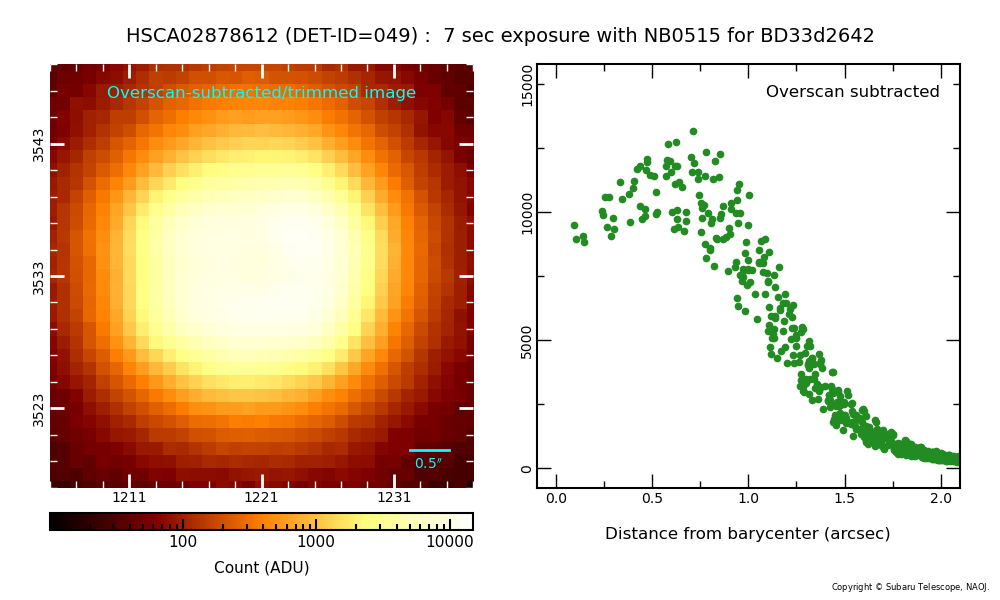

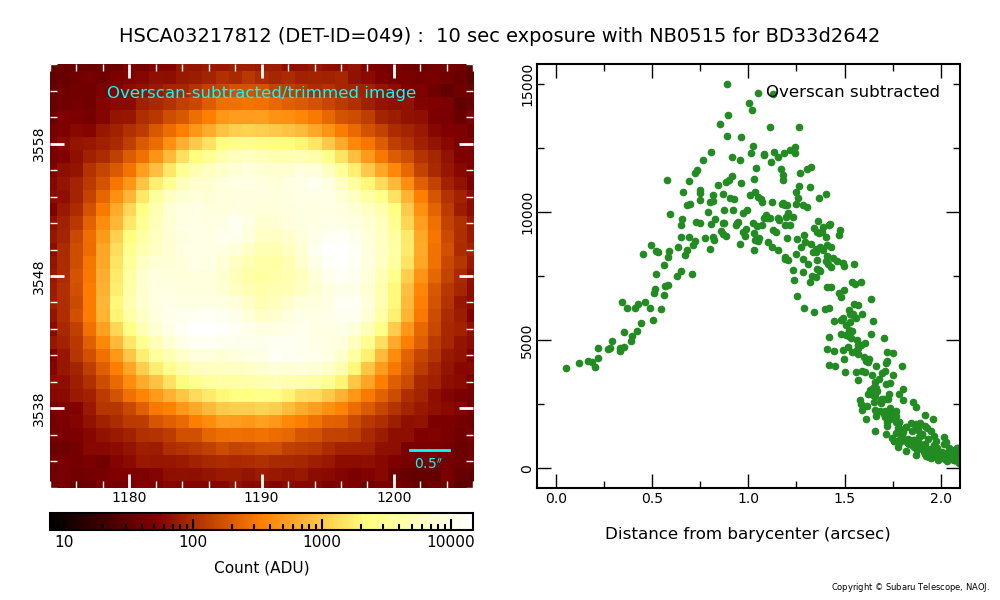

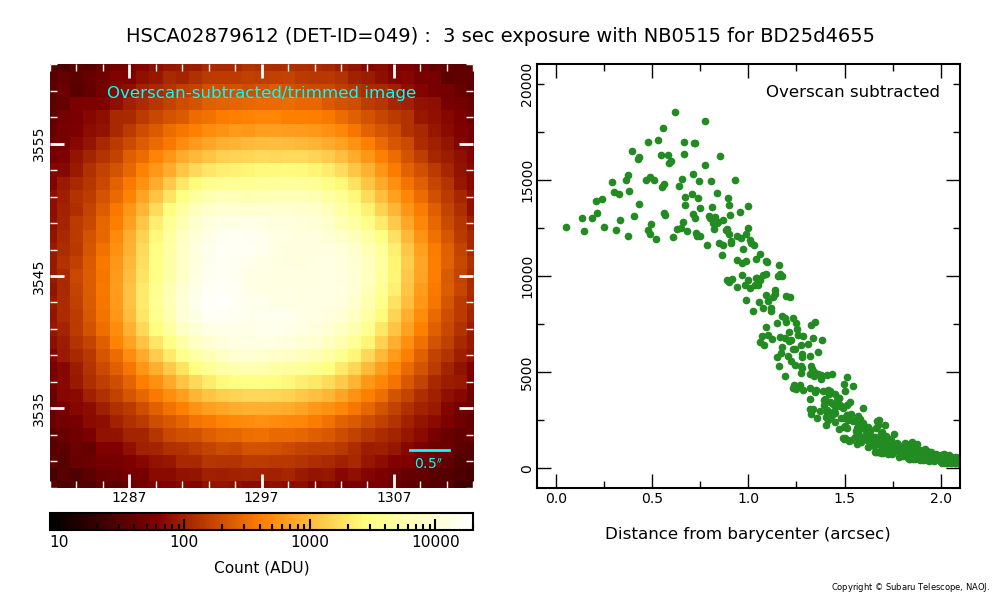

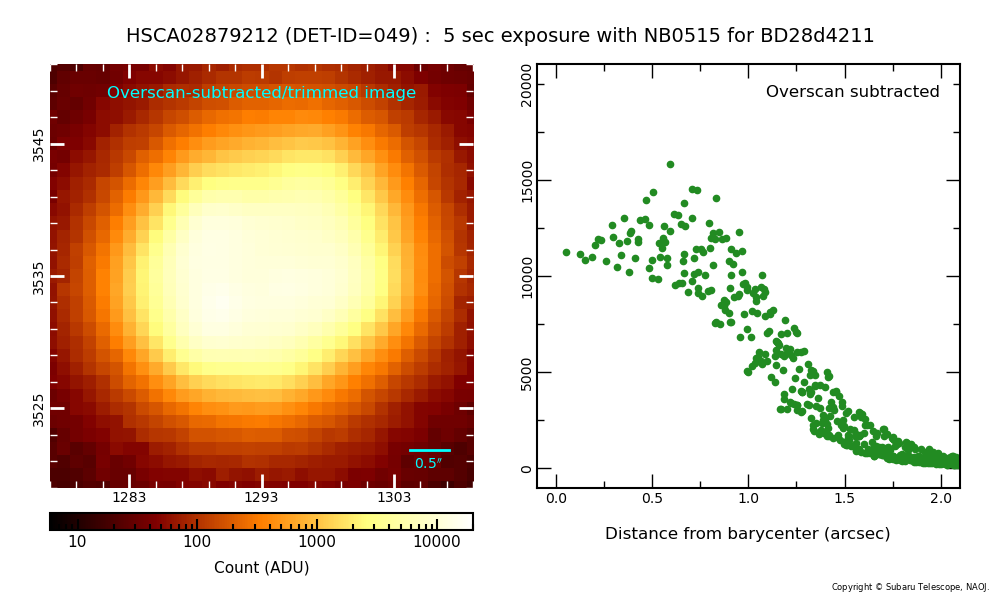

| Standard star in NB0515 | 02878412, 02878612 02879012, 02879212 02879412, 02879612 02880612, 03217812 |
2015 Mar run (2015/03/12 – 2015/03/30 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 02756000 – 02757957 | |
| Dark | 02758000 – 02758957 | |
| Domeflat in HSC-g | 02518200 – 02520157 | |
| Domeflat in HSC-r | 02614000 – 02615957 | |
| Domeflat in HSC-i | 02398600 – 02400557 | |
| Domeflat in HSC-z | 02718200 – 02720157 | |
| Domeflat in HSC-Y | 02660000 – 02661957 | |
| Domeflat in NB0921 | 02301200 – 02303157 | |
| Standard star in NB0921 | 02578812 |
2015 Jan run (2015/01/15 – 2015/01/26 HST)
| Data | Frame IDs |
|---|---|
| Domeflat in HSC-g | 02011600 – 02013557 |
| Domeflat in HSC-r | 02196000 – 02197957 |
| Domeflat in HSC-i | 01974800 – 01976757 |
| Domeflat in HSC-z | 01763200 – 01765157 |
| Domeflat in HSC-Y | 02234600 – 02236557 |
2014 Nov run (2014/11/13 – 2014/12/01 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 01038200 – 01040157 | |
| Dark | 01037200 – 01038157 | |
| Domeflat in HSC-g | 01048400 – 01050357 | |
| Domeflat in HSC-r | 01046400 – 01048357 | |
| Domeflat in HSC-i | 01035200 – 01037157 | |
| Domeflat in HSC-z | 01041800 – 01043757 | |
| Domeflat in HSC-Y | 01044400 – 01046357 |
2014 Sep run (2014/09/16 – 2014/10/01 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 00690200 – 00692157 | |
| Dark | 00692200 – 00693157 | Stray light (~0.003 ADU/sec) spreads over multiple CCDs centered on #081. (report) |
| Domeflat in HSC-g | 00626800 – 00628757 | |
| Domeflat in HSC-r | 00688200 – 00690157 | |
| Domeflat in HSC-i | 00596600 – 00598357 | |
| Domeflat in HSC-z | 00695400 – 00697357 | |
| Domeflat in HSC-Y | 00678600 – 00680557 | |
| Domeflat in NB0515 | 00693200 – 00695357 |
2014 Jun run (2014/06/23 – 2014/07/07 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 00475600 – 00477557 | |
| Dark | 00474600 – 00475557 | Stray light (~0.003 ADU/sec) spreads over multiple CCDs centered on #081. |
| Domeflat in HSC-g | 00371200 – 00373157 | Do not use the entire image of CCD 1_47 (9) for data analysis. |
| Domeflat in HSC-r | 00346000 – 00346957 | |
| Domeflat in HSC-i | 00553800 – 00555957 | |
| Domeflat in HSC-z | 00540000 – 00542157 | |
| Domeflat in NB0656 | 00461400 – 00463557 | |

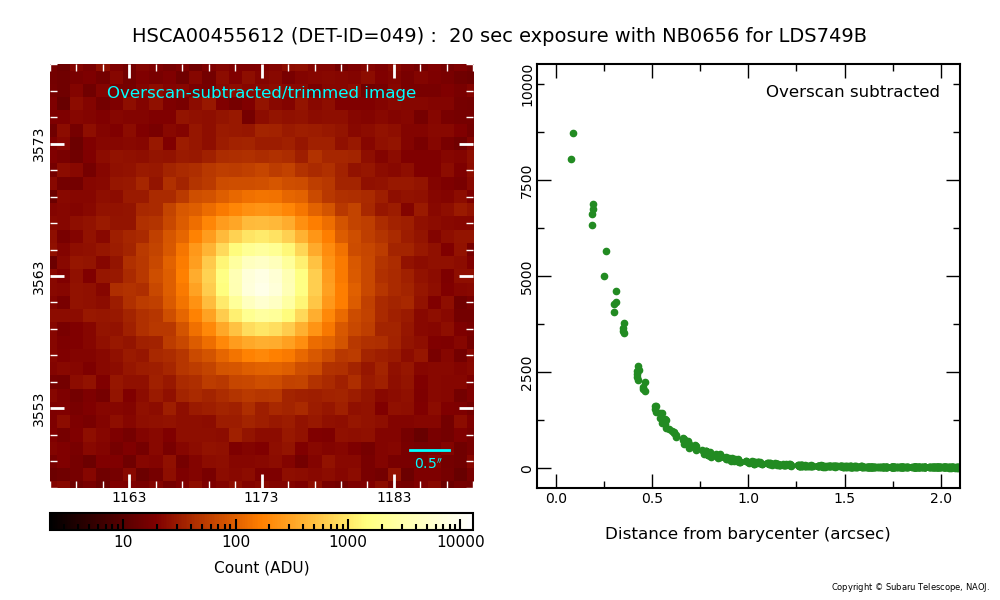

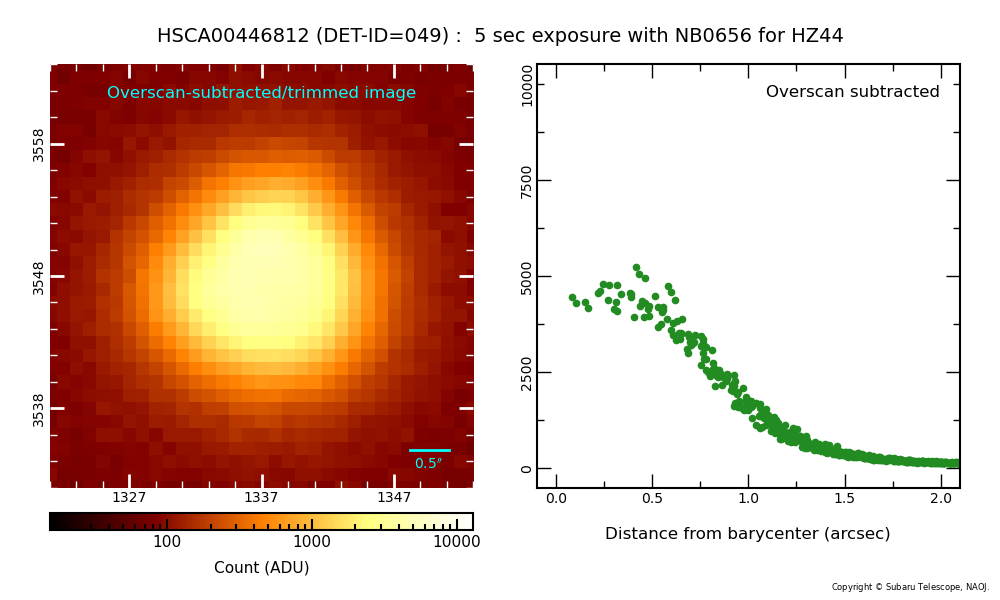

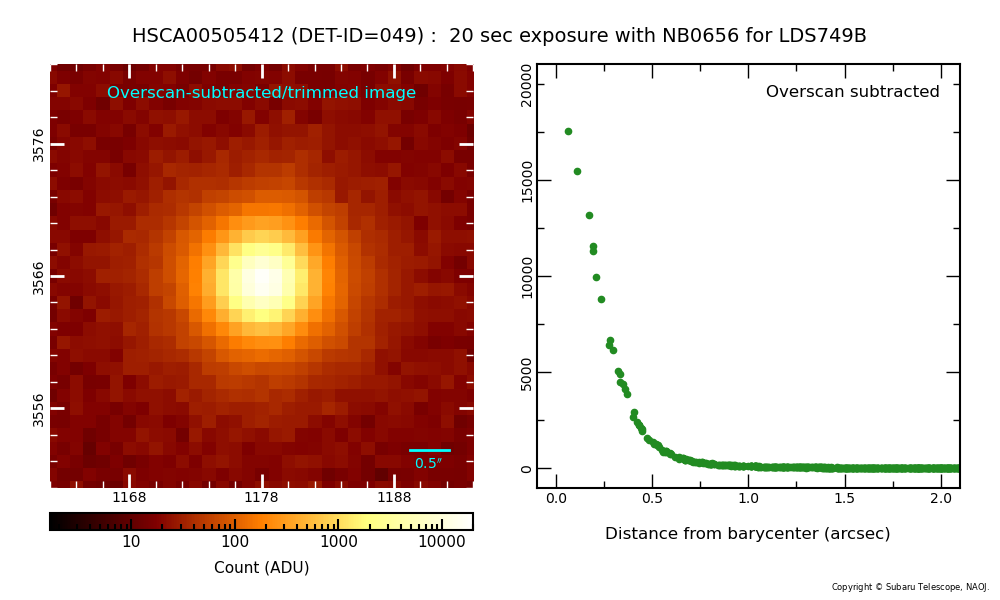

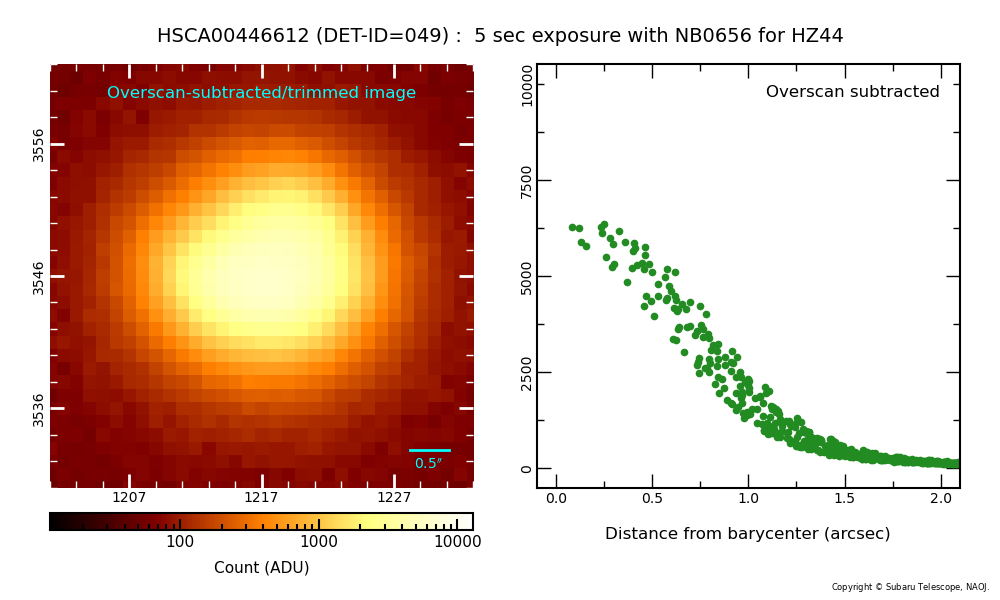

| Standard star in NB0656 | 00446412, 00446612 00446812, 00455612 00456012, 00505412 |
2014 Mar run (2014/03/24 – 2014/04/03 HST)
| Data | Frame IDs | Remarks |
|---|---|---|
| Bias | 00114600 – 00115557 | |
| Dark | 00146600 – 00147557 | |
| Domeflat in HSC-g | 00140400 – 00142357 | |
| Domeflat in HSC-r | 00168800 – 00170757 | |
| Domeflat in HSC-i | 00197000 – 00198957 | |
| Domeflat in HSC-z | 00111600 – 00113557 | |
| Domeflat in HSC-Y | 00021400 – 00023357 |
