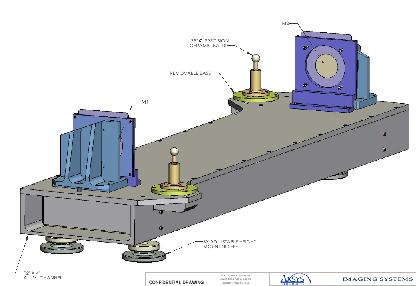

The PIAA optics were manufactured by Axsys Technologies , Imaging Systems, in Detroit, MI, USA. They were delivered mounted and aligned on a bench. Two benches (4 mirrors total) were manufactured. Click on the image on the left for CAD drawings.
The mirrors are aluminum substrate, and were diamond-turned + post-polished. The wavefront quality delivered by 2-mirror sytem was approximately 25nm RMS for each of the benches.

PIAA optics design documents / info

Text file describing the PIAA mirror shapes, including C code to generate the shapes.
Main pdf file. Includes 3D alignment sensitivity analysis.
Data files:

Zernike polynomials numbering check

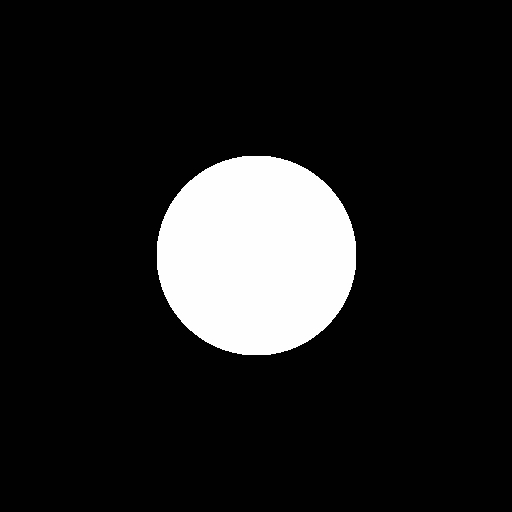

Zernike 0

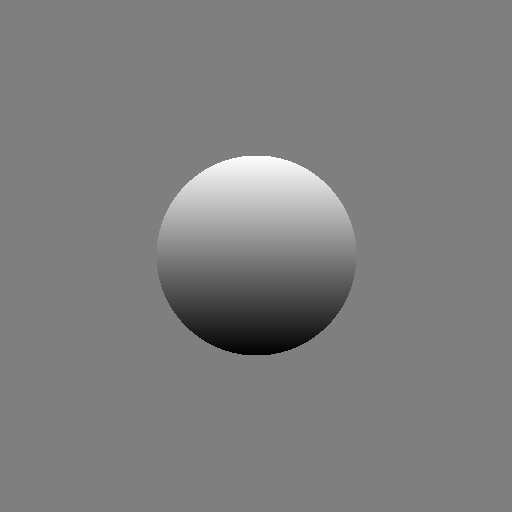

Zernike 1

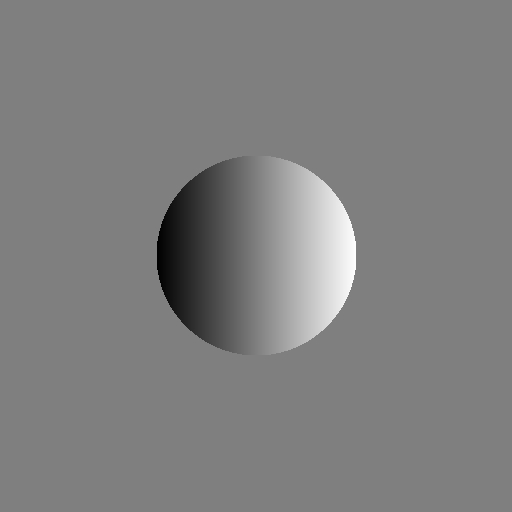

Zernike 2

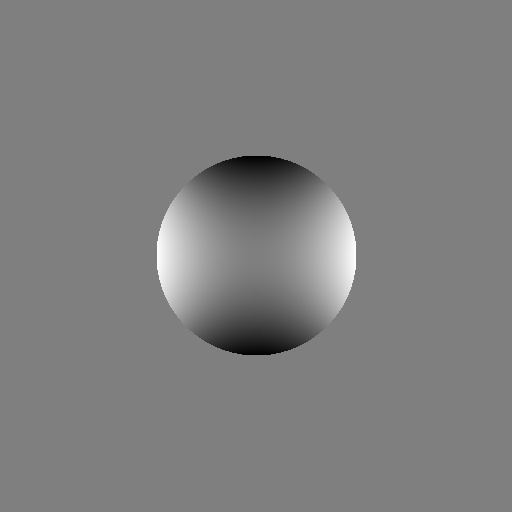

Zernike 5

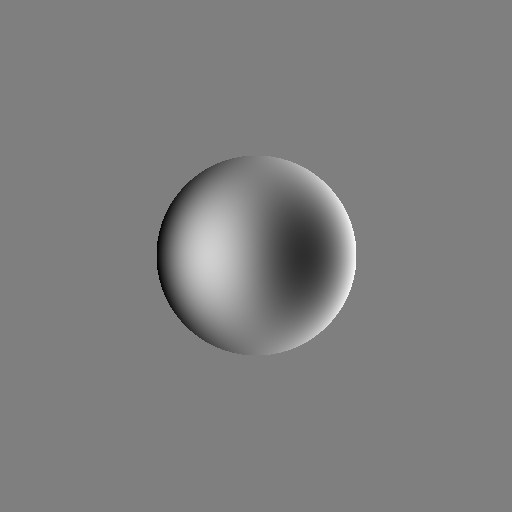

Zernike 8
Zernike 9

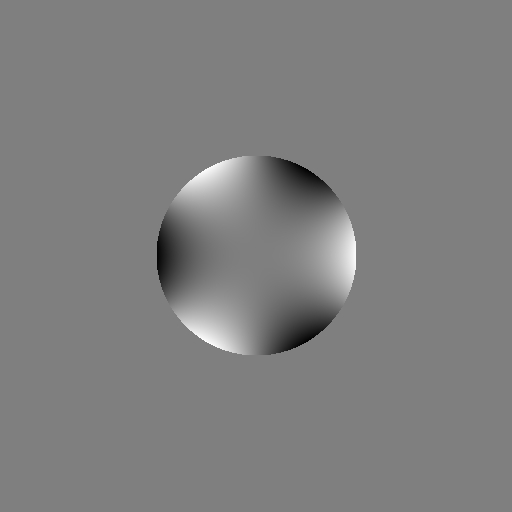

Zernike 10

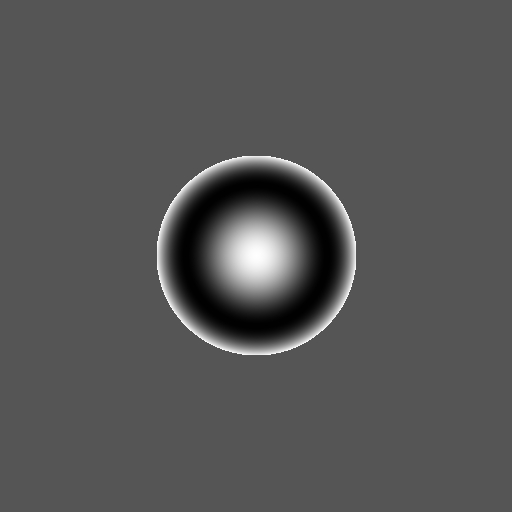

Zernike 12

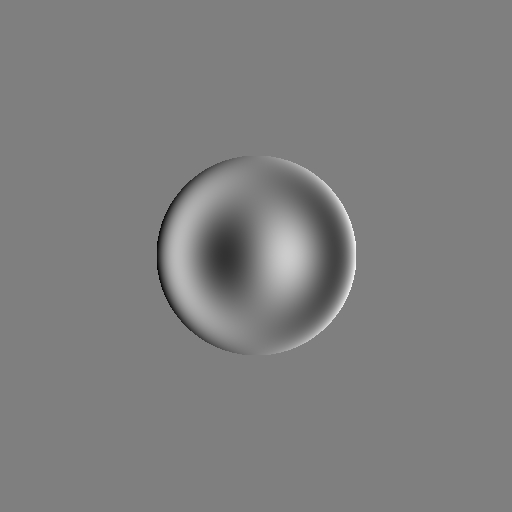

Zernike 18

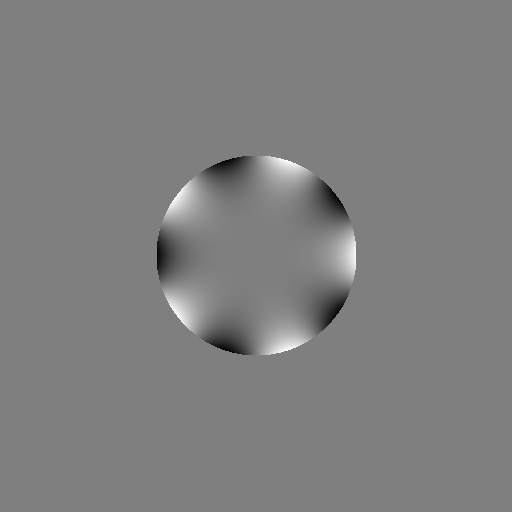

Zernike 20

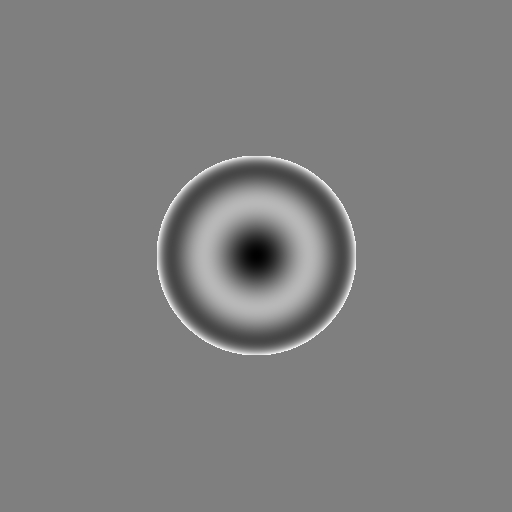

Zernike 24

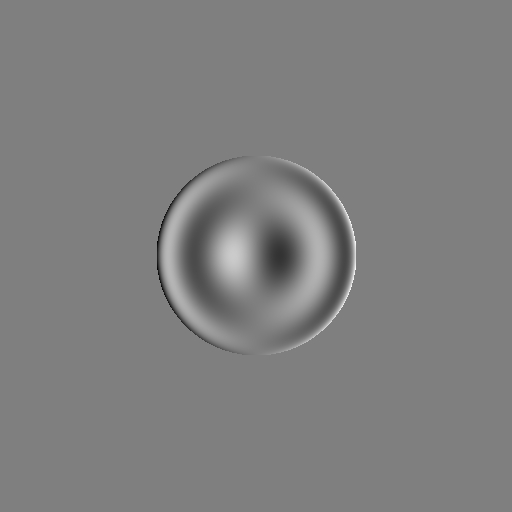

Zernike 32

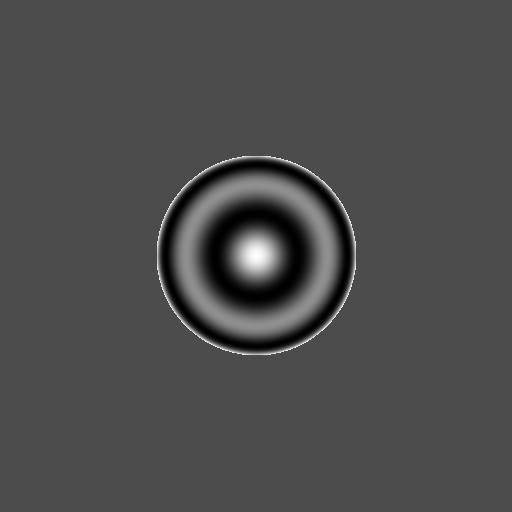

Zernike 40

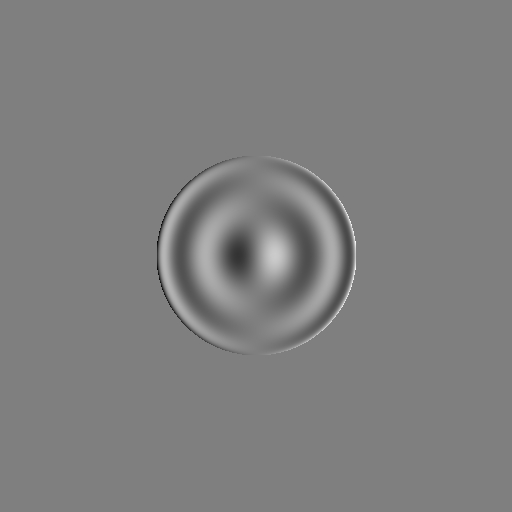

Zernike 50

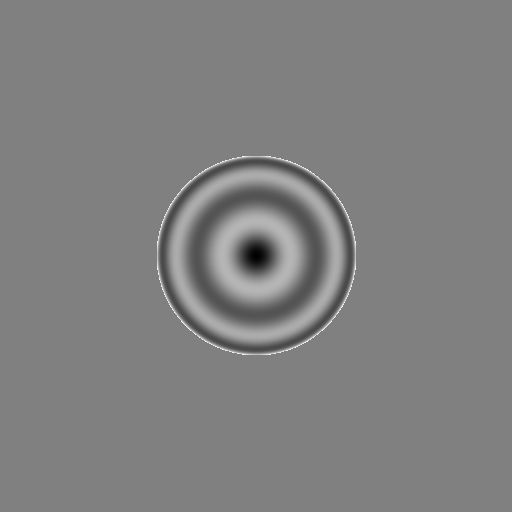

Zernike 60

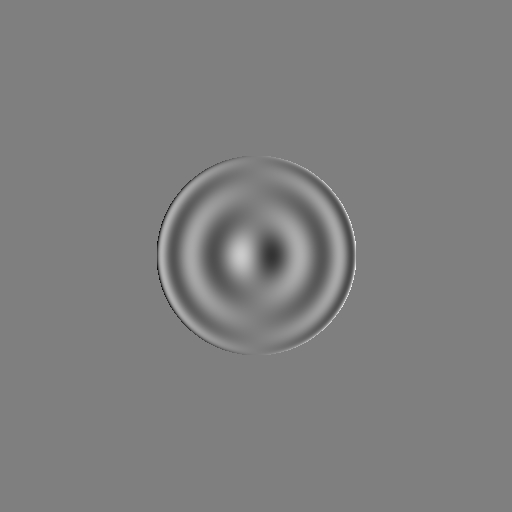

Zernike 72

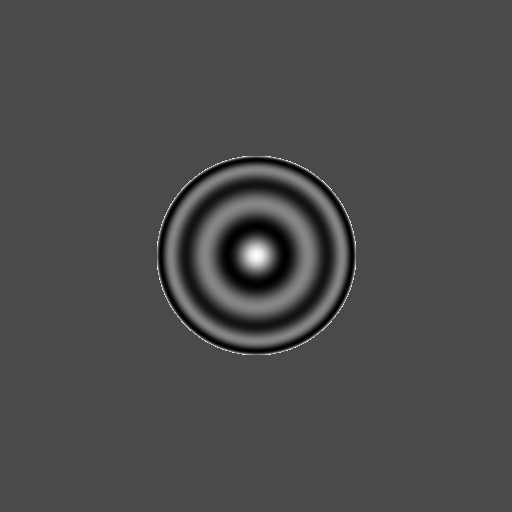

Zernike 84

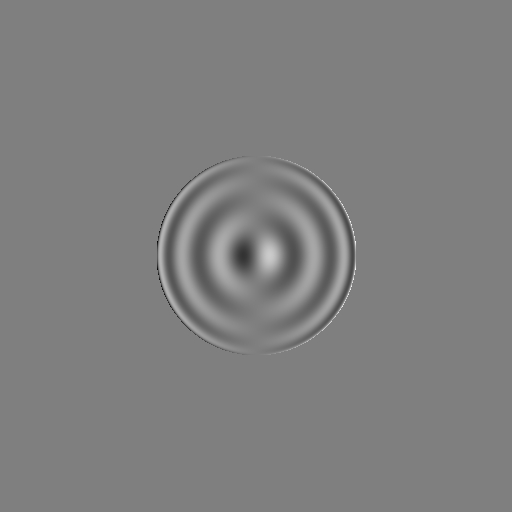

Zernike 98

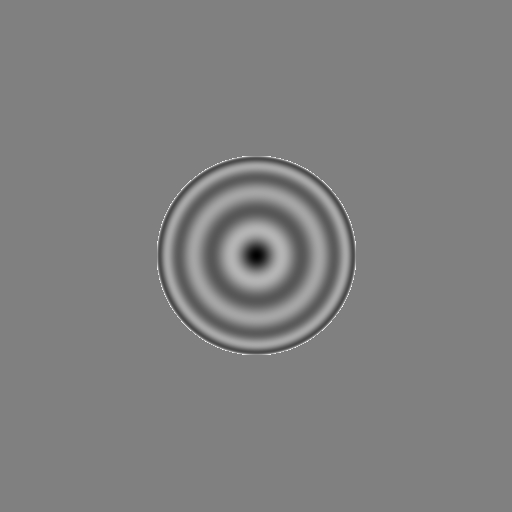

Zernike 112

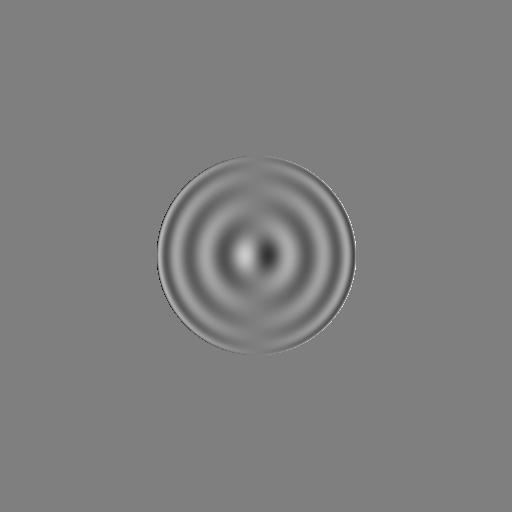

Zernike 128

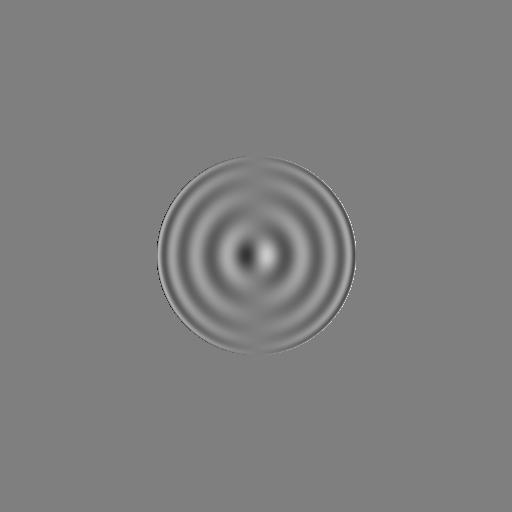

Zernike 162
