IRCS grism system efficiency

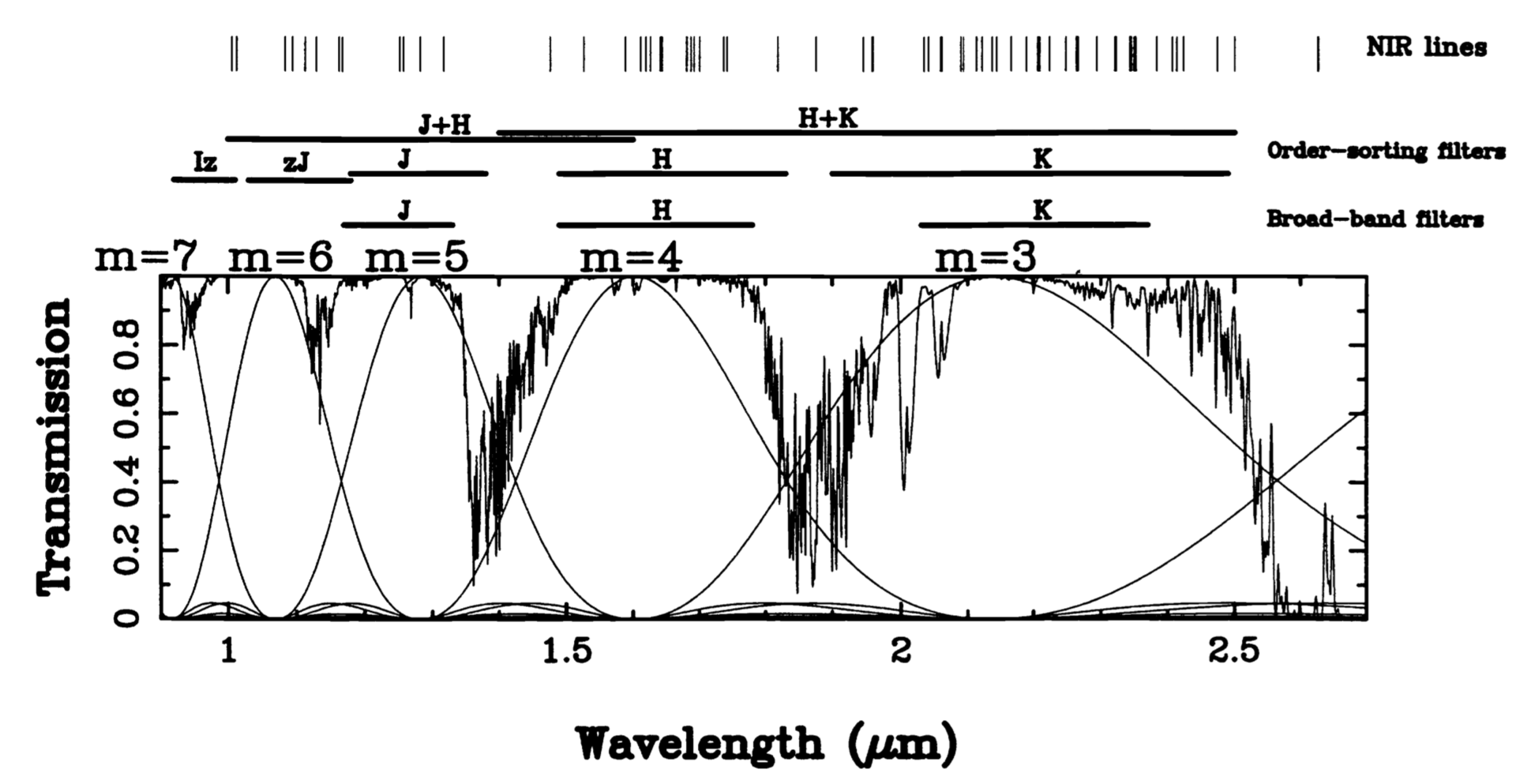

Grism efficiency for < 2.5 μm
Grism observations shortward of 2.5 μm are made by selecting different orders of the light reflected from a single grism.

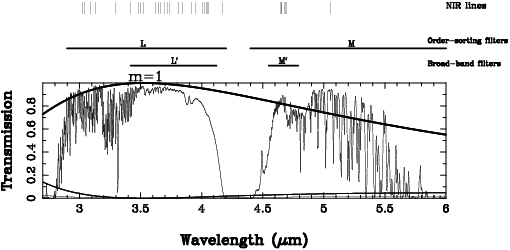

Thermal-infrared
Observations in the thermal-infrared are made with a different grism.

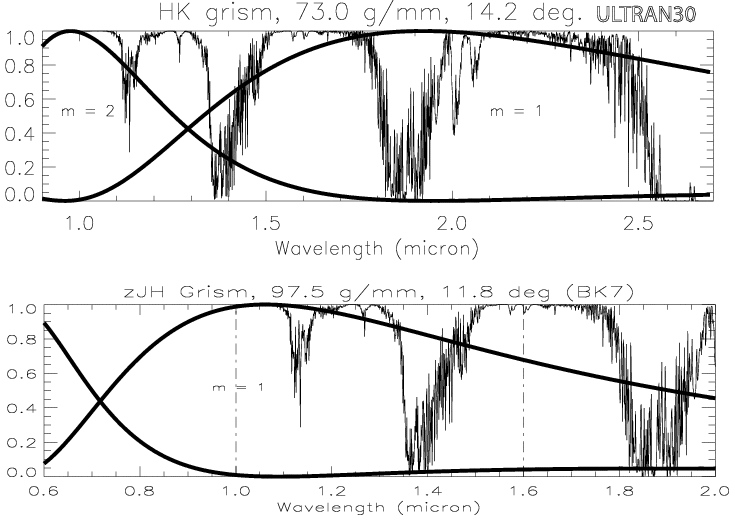

zJH and HK grisms
The efficiencies of the zJH and HK low-resolution grisms are as follows:

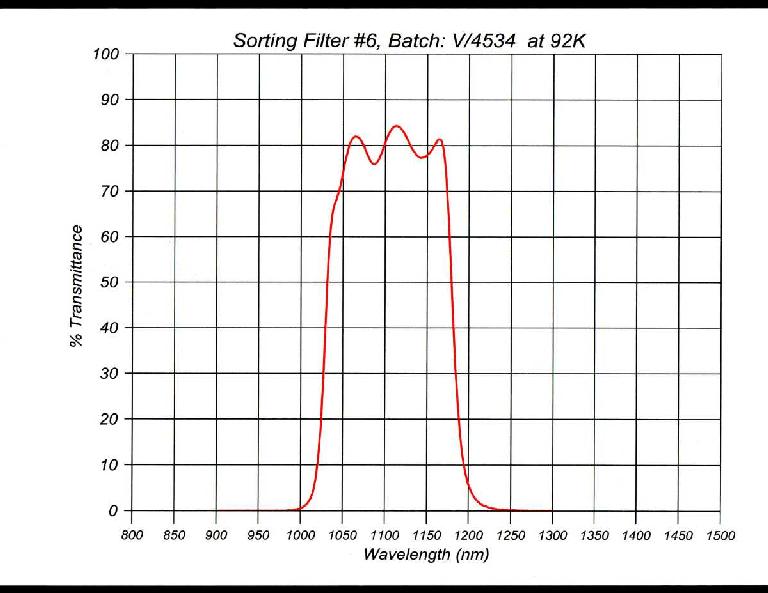

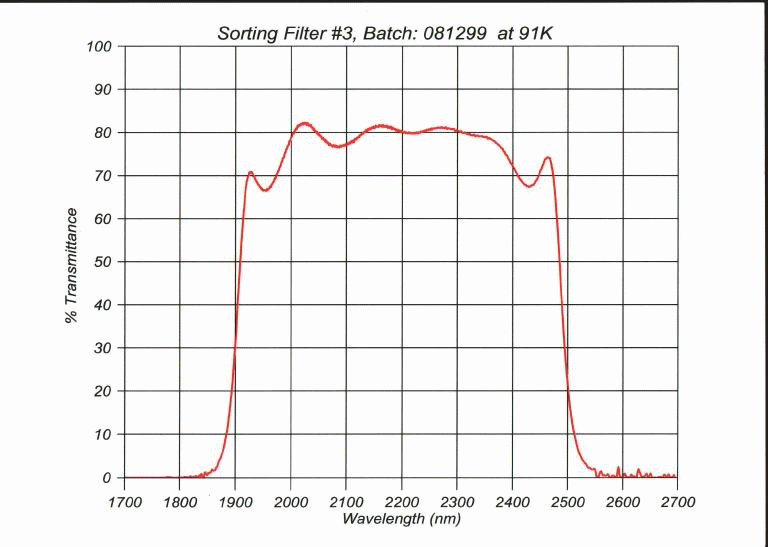

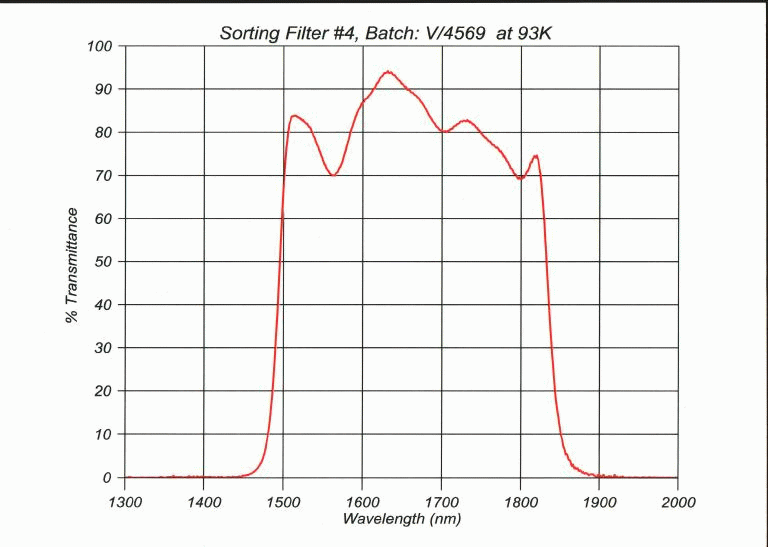

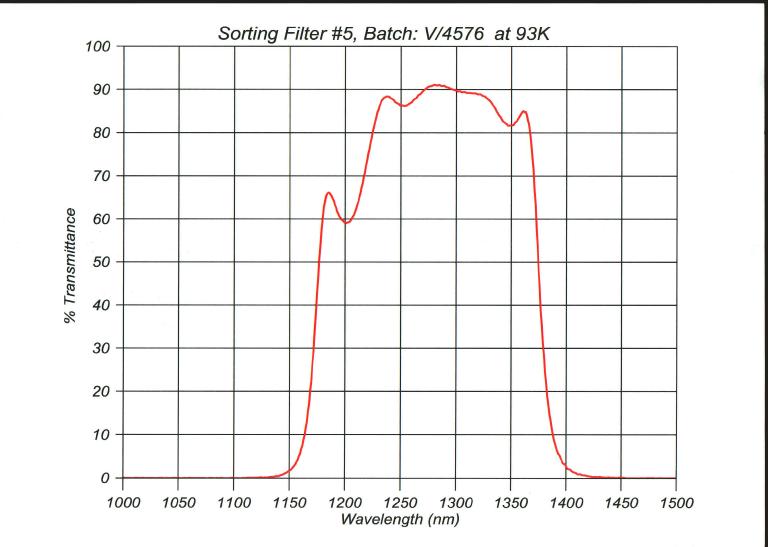

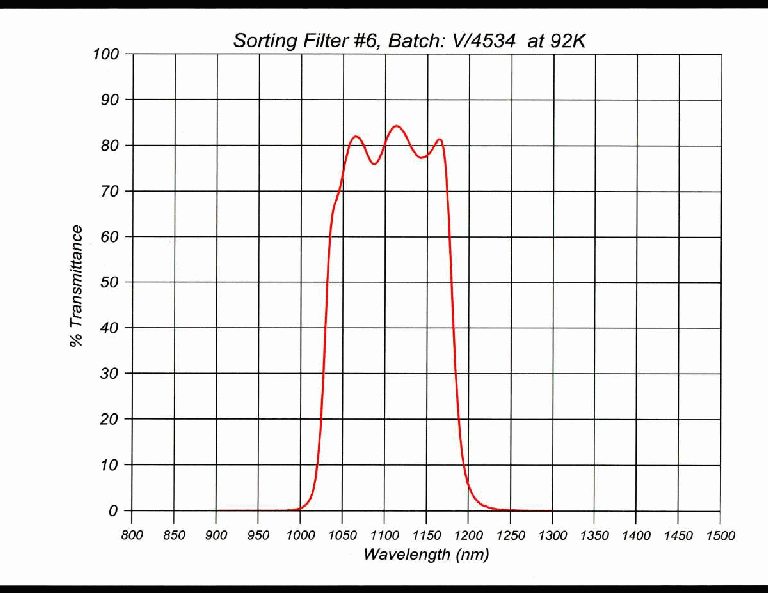

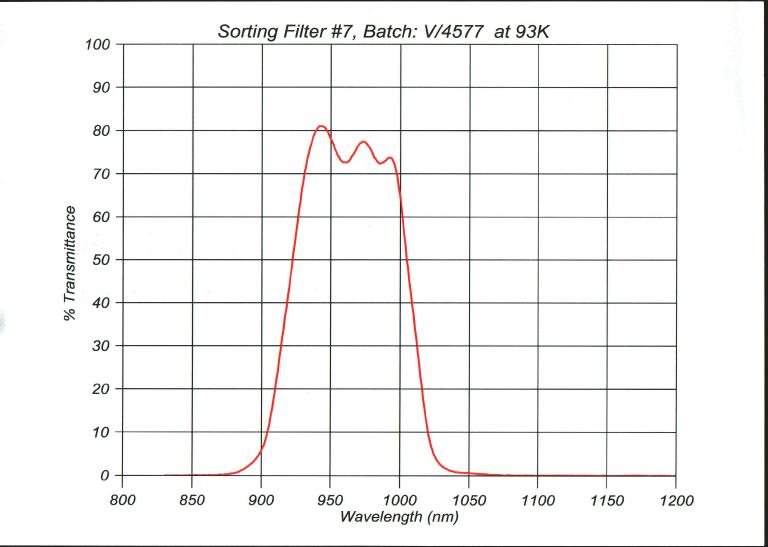

The appropriate order is selected by means of order sorting filters. The transmission curves for these filters was measured at ~90K, and there is a slight shift when they are cooled to 65K.
